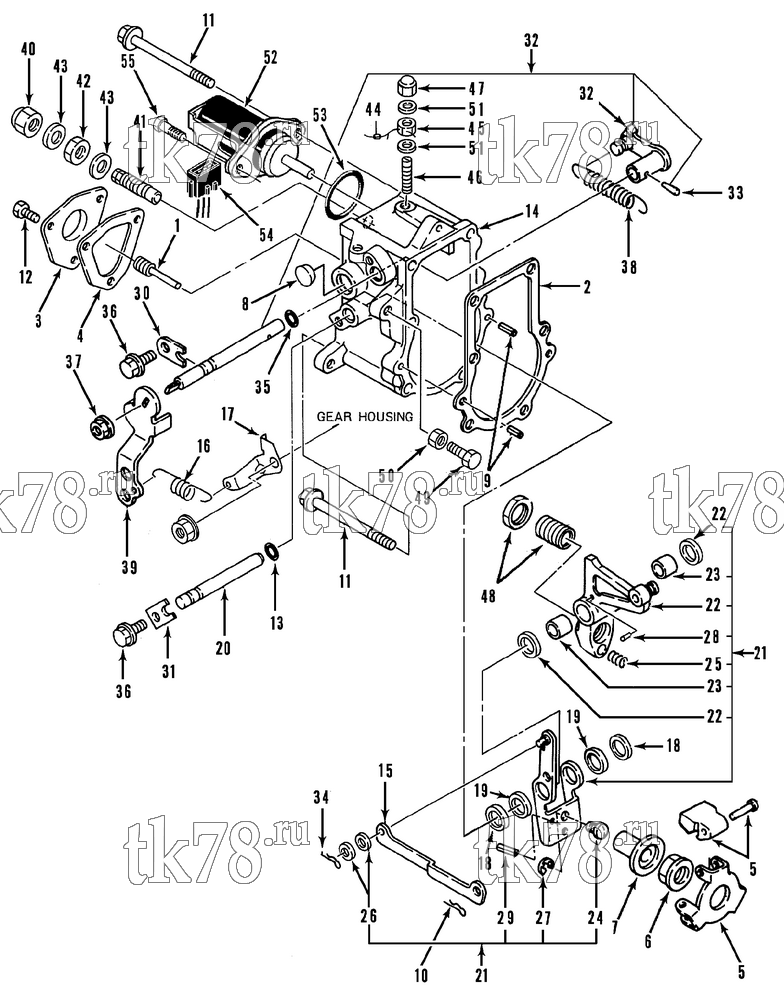

Установкa Thermo King схема GOVERNOR – 121D11
Обновление от: 1/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-5839 | SCREW - stop | 1 | |
| 2 | 33-1750 | GASKET - governor case | 1 | |
| 3 | 11-6116 | COVER - governor case | 1 | |
| 4 | 33-1751 | GASKET - governor case | 1 | |
| 5 | 11-6117 | WEIGHT - governor | 1 | |
| 6 | 55-5833 | NUT - governor weight | 1 | |
| 7 | 11-6118 | SLEEVE - governor | 1 | |
| 8 | 11-6624 | PLUG - frost | 1 | |
| 9 | 55-5834 | PIN - governor (4 x 10) | 2 | |
| 10 | 55-5835 | PIN - snap (M6) | 1 | |
| 11 | 55-5836 | BOLT (M6 x 70 mm) | 6 | |
| 12 | 55-5837 | BOLT (M5 x 10 mm) | 3 | |
| 13 | 33-1753 | O-RING | 1 | |
| 14 | 11-7517 | HOUSING - governor | 1 | |
| 15 | 11-6120 | LINK - governor | 1 | |
| 16 | 11-6497 | SPRING | 1 | |
| 17 | 11-6498 | BRACKET - return spring | 1 | |
| 18 | 11-6121 | SHIM PACK | 1 | |
| 19 | 55-5838 | SPACER | 2 | |
| 20 | 11-6122 | SHAFT - governor (lever) | 1 | |
| 21 | 11-6123 | LEVER - governor | 1 | |
| 22 | 11-5139 | SHIM SET | 2 | |
| 23 | 11-5059 | BEARING - needle | 2 | |
| 24 | 11-7069 | SHIFTER | 1 | |
| 25 | 11-6167 | SPRING - starting | 1 | |
| 26 | 55-6538 | WASHER (M4) | 2 | |
| 27 | 55-6273 | CIRCLIP | 1 | |
| 28 | 55-6539 | PIN - spring | 1 | |
| 29 | 55-6540 | PIN - spring | 1 | |
| 30 | 11-6124 | RETAINER - shaft | 1 | |
| 31 | 11-6125 | RETAINER - shaft | 1 | |
| 32 | 11-6626 | SHAFT - regulator | 1 | |
| 33 | 55-4667 | PIN - taper | 1 | |
| 34 | 55-5832 | PIN - snap | 1 | |
| 35 | 33-1752 | O-RING | 1 | |
| 36 | 55-5822 | BOLT (M6 x 10 mm) | 2 | |
| 37 | 55-5791 | NUT | 1 | |
| 38 | 11-6128 | SPRING - governor | 1 | |
| 39 | 91-8510 | LINK - throttle | 1 | |
| 40 | 55-5840 | NUT - captive | 1 | |
| 41 | 11-6132 | CONTROLLER - fuel | 1 | |
| 42 | 55-5841 | NUT | 1 | |
| 43 | 55-8620 | WASHER - sealing | 2 | |
| 44 | 11-5170 | SEAL - lead | 1 | |
| 45 | 55-5842 | NUT | 1 | |
| 46 | 55-5843 | SCREW - adjust | 1 | |
| 47 | 55-5844 | NUT | 1 | |
| 48 | 11-6127 | ANGLE | 1 | |
| 55-6201 | NUT | 1 | ||
| 49 | 55-6199 | BOLT (M6 x 30 mm) | 1 | |
| 50 | 55-5846 | LOCKNUT(M6) | 1 | |
| 51 | 55-5845 | WASHER - sealing (M6) | 2 | |
| 52 | 44-9254 | SOLENOID - stop | 1 | |
|
10-44-9254 | Соленоид топливный, Yanmar | 21 660 ₽ |
|
| 53 | 33-2230 | O-RING - solenoid | 1 | |
|
10-33-2230 | Уплотнительное кольцо соленоида отсечки топлива | 490 ₽ |
|
| 54 | 44-9263 | CONNECTOR - solenoid | 1 | |
| 55 | 55-5786 | SCREW - solenoid | 2 | |
| 30-261 | KIT - gasket set (see 90E1) | 1 | ||
|
10-30-261 | Набор прокладок, Yanmar 388 | 19 850 ₽ |
|
