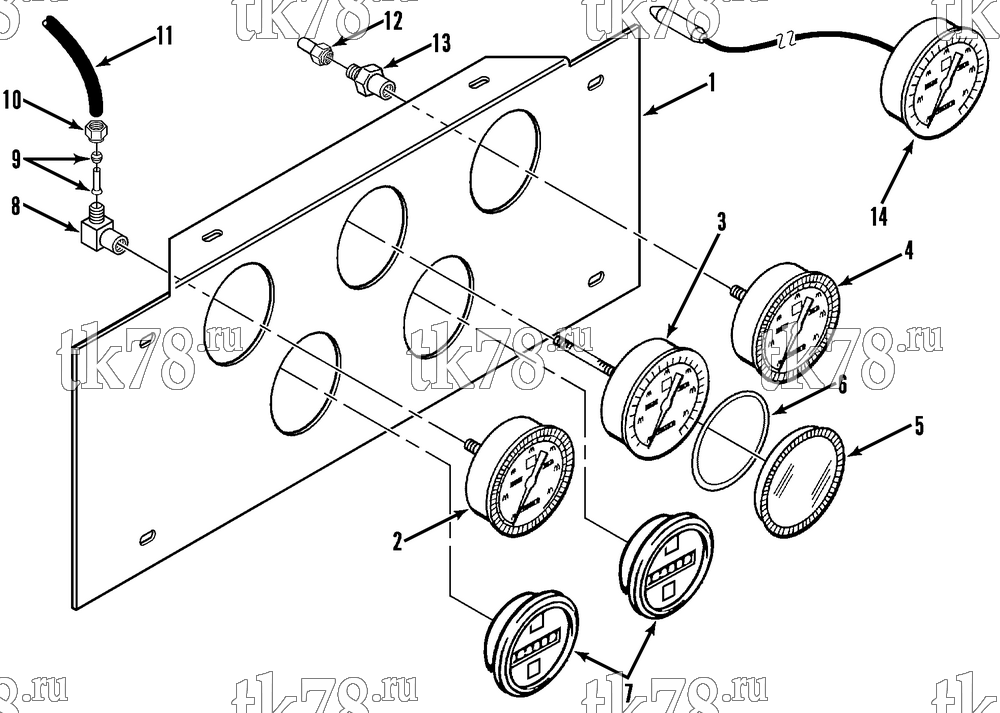

Установкa Thermo King схема GAUGE PANEL GROUP – 115C8
Обновление от: 5/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5395 | PANEL - gauge (30s, std) | 1 | |
| 91-5396 | PANEL - gauge (30s, w/ compound gauge) | 1 | ||
| 91-5397 | PANEL - gauge (50s, std) | 1 | ||
| 91-5398 | PANEL - gauge (30s, w/ compound gauge) | 1 | ||
| 55-2991 | SCREW - panel | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3571 | NUT - blind | 4 | ||
| 2 | 44-7485 | GAUGE - oil pressure | 1 | |
|
10-44-7485 | Датчик давления масла | 4 800 ₽ |
|
| 3 | 44-7486 | GAUGE - water temperature | 1 | |
| 4 | 66-4907 | GAUGE - compound (optional) | 1 | |
| 5 | 91-870 | LENS - gauge (fits items 2, 3 & 4) | 3 | |
| 6 | 33-1934 | GASKET - gauge (fits items 2, 3 & 4) | 3 | |
| 7 | 44-9259 | HOURMETER (analog) | 2 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 8 | 11-7430 | FITTING (1/4) | 1 | |
| 9 | 10-243 | KIT - sleeve & eyelet (1/4) | 2 | |
| 10 | 11-4841 | NUT - hose (1/4) | 2 | |
| 11 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 12 | 66-5330 | CONNECTOR - gauge | 1 | |
| 13 | 55-5607 | ADAPTER | 1 | |
| 55-546 | CLAMP - gauge (1/4) | 3 | ||
| 55-5656 | SCREW - clamp | 3 | ||
| 14 | 61-3467 | THERMOMETER - mechanical (optional) | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
