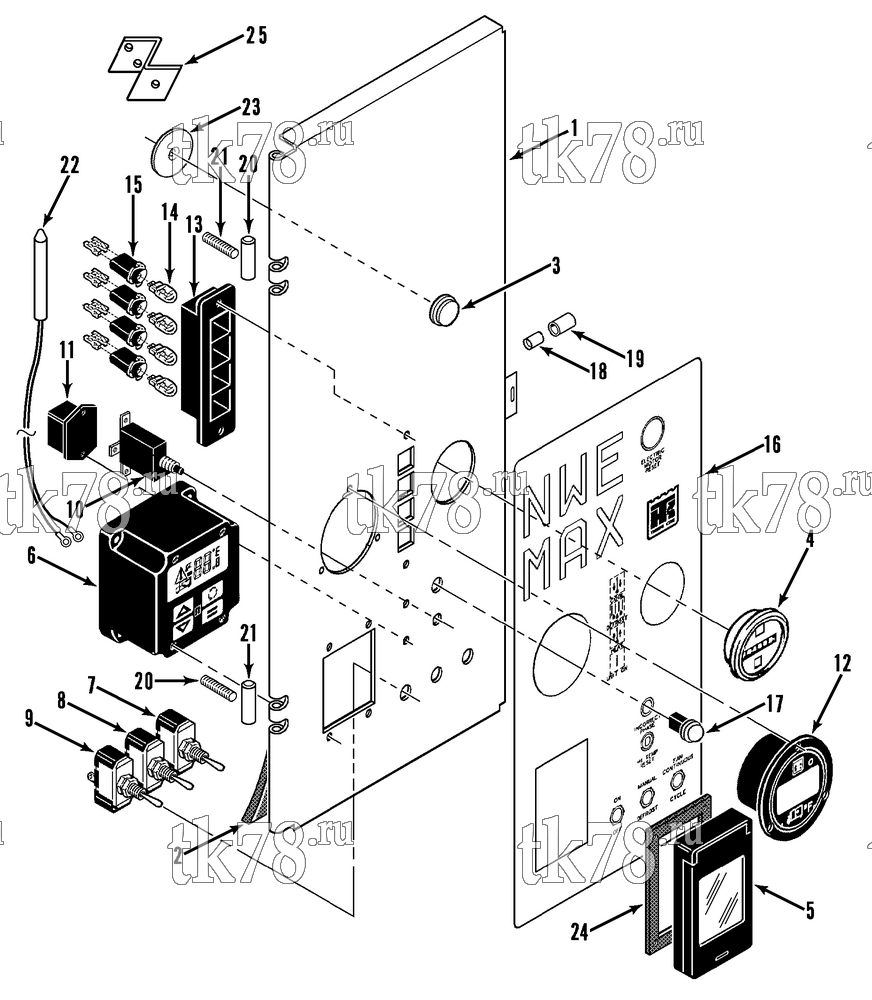

Установкa Thermo King схема CONTROL BOX COVER (NWE MAX II) – 115A12
Обновление от: 2/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5306 | COVER - control box | 1 | |
| 99-5908 | NAMEPLATE - Caution High Voltage | 1 | ||
| 2 | 33-2216 | GASKET - strip (50 ft) | A/R | |
| 3 | 44-8413 | BUTTON - reset | 1 | |
| 55-5693 | SCREW - reset button | 1 | ||
| 4 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 5 | 91-2674 | COVER - thermostat | 1 | |
|
10-91-2674 | Крышка термостата | 9 200 ₽ |
|
| 6 | 45-1579 | THERMOSTAT - TG V | 1 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 44-5763 | DIODE | 1 | ||
| 33-2128 | GASKET - thermostat | 1 | ||
| 55-4370 | SCREW - thermostat | 4 | ||
| 7 | 44-1936 | SWITCH - fan | 1 | |
| 8 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 9 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 10 | 44-7774 | BREAKER - circuit | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-8688 | BOOT - circuit breaker | 1 | ||
| 55-4396 | SCREW - circuit breaker | 4 | ||
| 11 | 44-8680 | FILTER - power (thermometer) | 1 | |
| 55-2999 | NUT - filter | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 12 | 41-2590 | THERMOMETER - digital LED (F) | 1 | |
| 55-6390 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-3014 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 13 | 99-8322 | HOUSING - lamp | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 14 | 44-3711 | BULB | 4 | |
| 15 | 44-6462 | SOCKET - bulb | 4 | |
| 16 | 91-5307 | NAMEPLATE - cover | 1 | |
| 17 | 44-9085 | LIGHT - phase indicator | 1 | |
| 18 | 99-8151 | SPACER | 1 | |
| 19 | 99-8162 | ROLLER - door latch | 1 | |
| 55-2977 | SCREW - spacer | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 20 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 21 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 22 | 44-5234 | SENSOR - thermostat | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 23 | 55-7786 | WASHER - reset button | 1 | |
| 55-8419 | SCREW - washer (flathead) | 1 | ||
| 55-1801 | NUT | 2 | ||
| 24 | 33-2145 | GASKET - cover | 1 | |
| 25 | 91-2667 | BRACKET - sensor | 1 |
