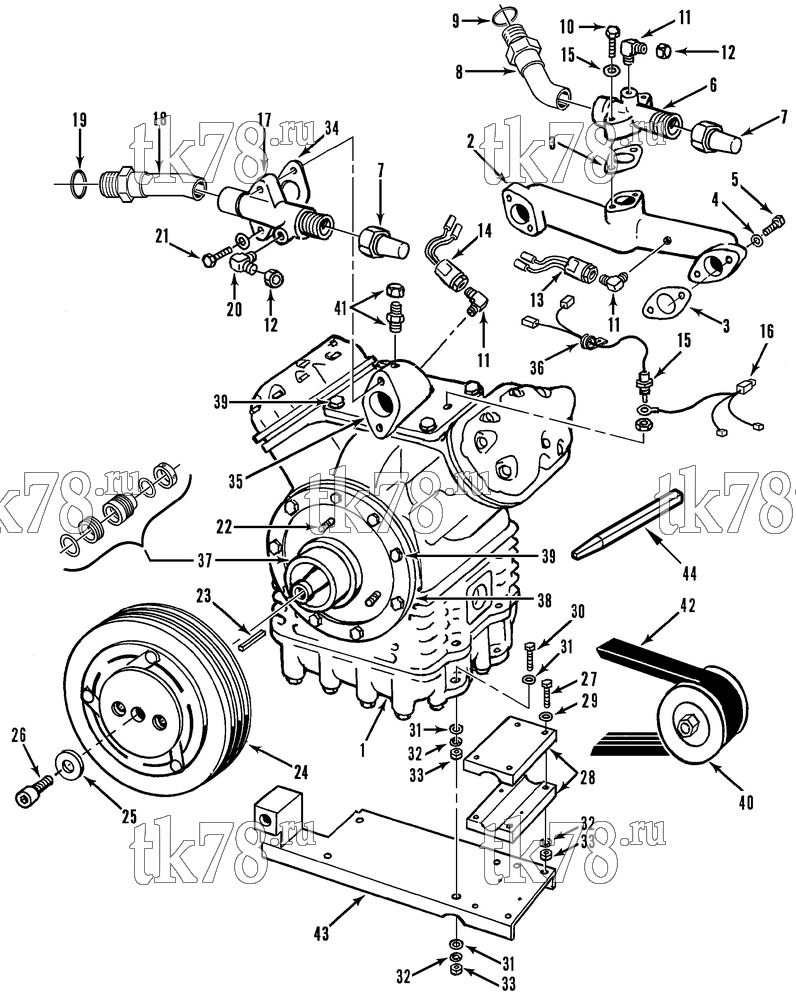

Установкa Thermo King схема COMPRESSOR GROUP (KIT 714118) – 114G14
Обновление от: 12/14/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-913 | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | |
| 8102-913 | COMPRESSOR - X426 C5 (subassembly, reman, see 231A2) | 1 | ||
| 2 | 22-749 | MANIFOLD - discharge | 1 | |
| 3 | 33-2805 | GASKET - manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 4 | 55-6804 | WASHER - sealing | 4 | |
| 5 | 55-6822 | SCREW - manifold | 4 | |
| 6 | 66-6590 | VALVE - discharge (incl 7 & 8) | 1 | |
| 66-2140 | VALVE - discharge | 1 | ||
| 7 | 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 8 | 55-3808 | ADAPTER (#16) | 1 | |
| 66-6591 | TUBE - valve to adapter | 1 | ||
| 9 | 33-594 | O-RING | 1 | |
| 55-6804 | WASHER - sealing | 2 | ||
| 11 | 55-308 | ELBOW | 2 | |
| 12 | 55-1983 | CAP - elbow | 2 | |
| 33-768 | GASKET - flare | 2 | ||
| 13 | 41-1774 | SWITCH - hpco | 1 | |
| 14 | 44-6356 | SWITCH - lpco | 1 | |
| 44-4338 | SWITCH - only (10 psi) | 2 | ||
| 15 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 16 | 44-9617 | HARNESS - compressor | 1 | |
| 17 | 66-6588 | VALVE - suction (incl 7, 18) | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 18 | 66-6589 | TUBE - valve to adapter | 1 | |
| 55-4185 | ADAPTER (#20) | 1 | ||
| 19 | 33-544 | O-RING | 1 | |
| 20 | 55-466 | ELBOW | 1 | |
| 21 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 22 | 55-3451 | STUD - clutch | 3 | |
| 55-789 | NUT - clutch | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 23 | 55-9024 | KEY - clutch (1-1/2 lg) | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 24 | See Note | CLUTCH (24VDC, see 119B6) | 1 | |
| 107-150 | KIT - clutch drive repair | 1 | ||
| 77-1414 | PULLEY (3-3V grooves, 8.0 in od) | 1 | ||
| 45-271 | FIELD - coil (24VDC) | 1 | ||
| 25 | 77-2498 | SPACER - clutch | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 26 | 55-3631 | SCREW - clutch | 1 | |
| 27 | 55-7406 | SCREW - plate | 4 | |
| 28 | 91-1078 | PLATE - pivot (bottom) | 2 | |
| 29 | 55-5620 | FLATWASHER | 8 | |
| 30 | 55-4787 | SCREW - compressor | 4 | |
| 31 | 55-399 | WASHER - special | 8 | |
| 32 | 55-364 | LOCKWASHER | 8 | |
| 33 | 55-288 | NUT | 8 | |
| 34 | 33-2541 | GASKET - suction valve | 1 | |
| 35 | 66-1896 | ADAPTER - suction valve | 1 | |
| 36 | 55-5261 | CLAMP | 1 | |
| 37 | 22-778 | SEAL - crankshaft (neoprene bellows) | 1 | |
| 22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
|
10-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 720 ₽ |
|
| 22-751 | SEAL - crankshaft (stainless steel bellows) | 1 | ||
| 38 | 22-790 | PLATE - drive bearing (use w/ stainless steel seal) | 1 | |
| 22-754 | PLATE - drive bearing (use w/ neoprene seal) | 1 | ||
| 33-2513 | GASKET - plate | 1 | ||
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 39 | 55-2381 | SCREW - plate to adapter | 13 | |
| 55-896 | FLATWASHER | 13 | ||
| 40 | 77-1881 | PULLEY - drive (pto, 8.0 dia) | 1 | |
| 41 | 11-2886 | VALVE - pressure | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 11-7777 | CORE | 1 | ||
| 42 | 78-747 | BELT (3-3V) | 1 | |
| 43 | 99-6985 | BASE - compressor | 1 | |
| 44 | 204-972 | TOOL - keyway alignment | 1 | |
| 10 | 55-6776 | SCREW - discharge valve | 2 |
