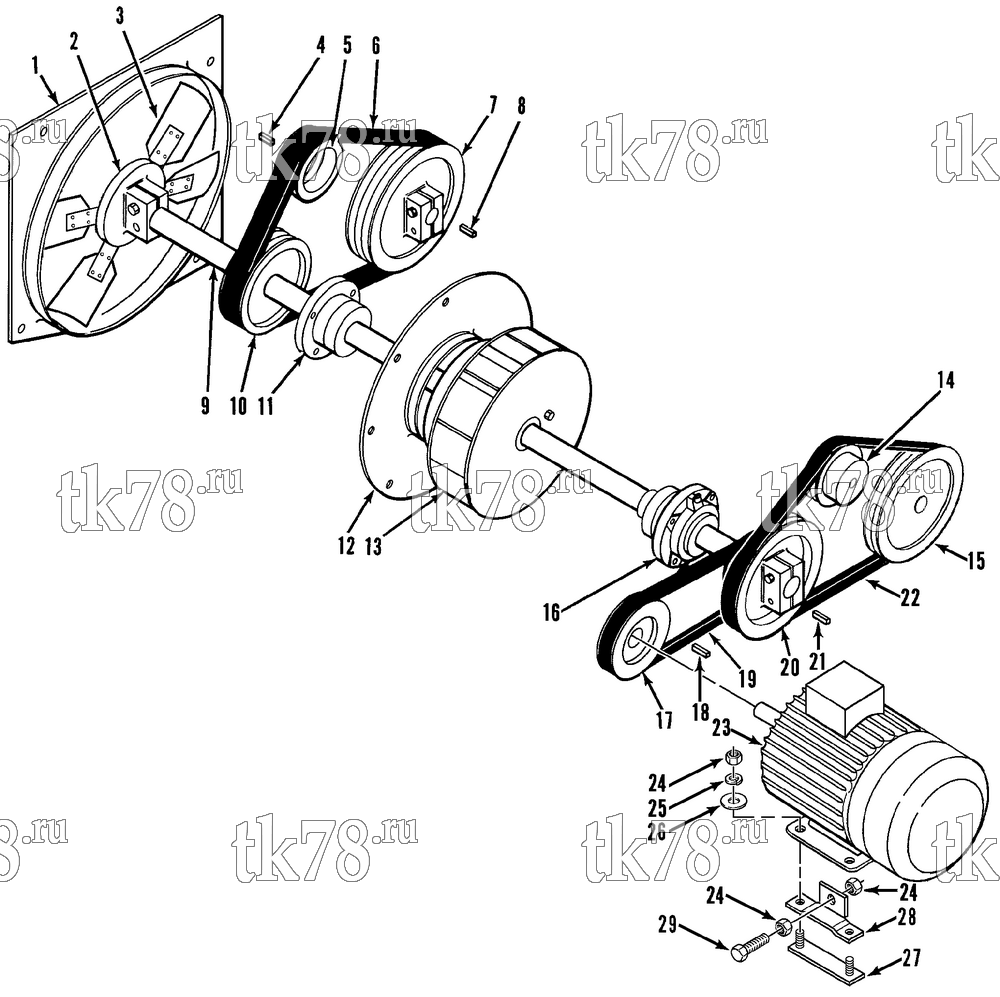

Установкa Thermo King схема FAN & BLOWER GROUP – 114D7
Обновление от: 7/17/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-709 | ORIFICE - blower | 1 | |
| 55-2977 | SCREW - orifice | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 2 | 77-1789 | HUB - condenser fan | 1 | |
| 55-3674 | SCREW - hub to shaft | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 3 | 78-710 | FAN - condenser | 1 | |
| 55-2969 | SCREW - fan to hub | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 4 | 55-1600 | KEY - alternator | 1 | |
| 5 | 77-1788 | PULLEY - alternator | 1 | |
| 55-2042 | NUT - pulley | 1 | ||
| 55-4766 | LOCKWASHER | 1 | ||
| 6 | 78-344 | BELT - compressor & alternator | 3 | |
| 7 | 77-1916 | PULLEY - compressor (use with 3 hp motor 104-488) | 1 | |
| 77-2462 | PULLEY - motor | 1 | ||
| 55-9109 | SCREW - pulley | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 8 | 55-455 | KEY - compressor | 1 | |
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 9 | 78-715 | SHAFT - drive | 1 | |
| 10 | 77-1791 | PULLEY - compressor & alternator drive | 1 | |
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 11 | 77-1783 | BEARING (compressor end, curbside) | 1 | |
| 91-3117 | SUPPORT - bearing | 1 | ||
| 55-4955 | NUT - bearing | 1 | ||
| 55-2363 | LOCKWASHER | 3 | ||
| 12 | 78-713 | ORIFICE - blower | 1 | |
| 55-1587 | SCREW - orifice | 3 | ||
| 55-3045 | WASHER - dome | 3 | ||
| 13 | 78-888 | BLOWER - evaporator | 1 | |
| 55-3674 | SCREW - blower | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 14 | 77-2431 | PULLEY - idler (see 114B12) | 1 | |
| 15 | 77-2169 | PULLEY - hydraulic motor (R12, see 112D14) | 1 | |
| 77-2177 | PULLEY - hydraulic motor (R502, see 112D14) | 1 | ||
| 16 | 77-1784 | BEARING (roadside) | 1 | |
| 91-3116 | SUPPORT - bearing | 1 | ||
| 55-4955 | NUT - bearing | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 17 | 77-1786 | PULLEY - motor (use with 3 hp motor 104-609) | 1 | |
| 77-2462 | PULLEY - motor (use w/ 5 hp motor 104-609) | 1 | ||
| 55-5873 | SCREW - pulley to shaft | 1 | ||
| 18 | 55-1108 | KEY - pulley | 1 | |
| 19 | 78-735 | BELT - motor (matched set) | 1 | |
| 20 | 77-1790 | PULLEY - jackshaft (50s) | 1 | |
| 55-5873 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 21 | 55-1108 | KEY - jackshaft | 1 | |
| 22 | 78-910 | BELT - hydraulic motor (matched set) | 1 | |
| 23 | 104-488 | MOTOR (380/3/50, 3hp, see note) | 1 | |
| 104-609 | MOTOR (380/3/50, 5hp, see note) | 1 | ||
| 24 | 55-4955 | NUT | 6 | |
| 25 | 55-2363 | LOCKWASHER | 4 | |
| 26 | 55-2641 | FLATWASHER | 6 | |
| 27 | 91-221 | BOLTSTRIP - motor | 2 | |
| 28 | 91-4750 | BRACKET - tension | 1 | |
| 91-8033 | BRACKET - tension (use w/ 5hp motor 104-609) | 1 | ||
| 29 | 55-6046 | SCREW - bolt adjustment | 1 |
