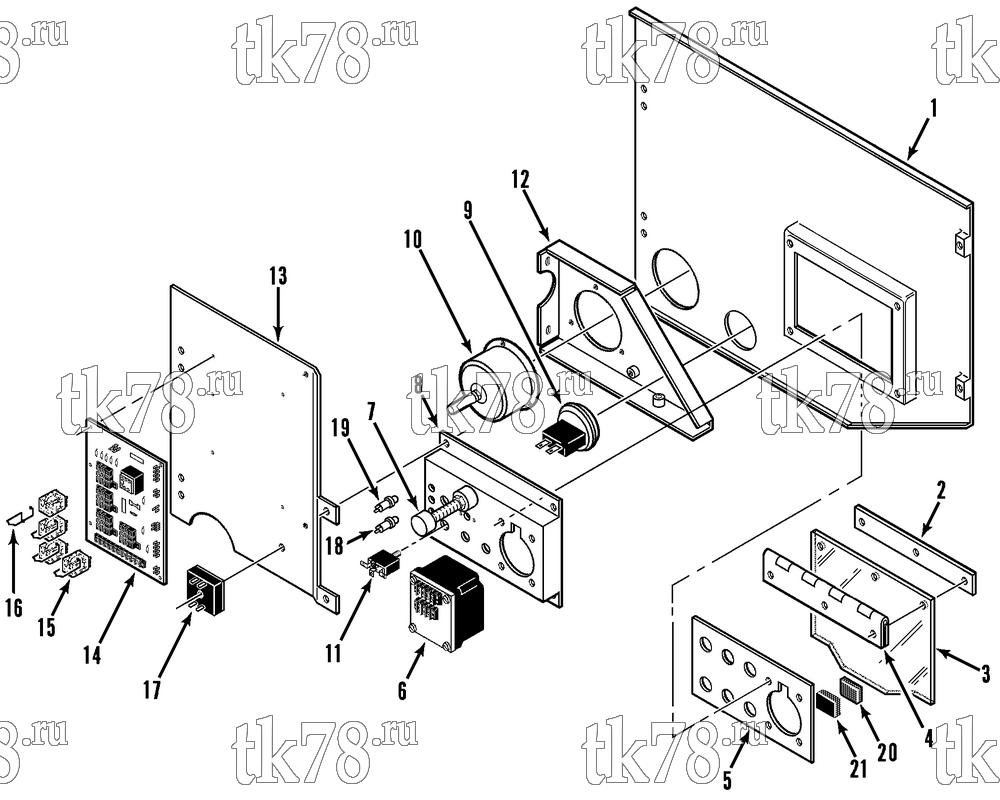

Установкa Thermo King схема CONTROL BOX COVER – 114D4
Обновление от: 12/13/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4142 | DOOR - control box (see 114D5) | 1 | |
| 2 | 99-9489 | PLATE - hinge | 1 | |
| 3 | 99-9486 | DOOR - thermostat | 1 | |
| 4 | 99-9487 | HINGE - cover | 1 | |
| 55-5975 | SCREW - door & hinge | 5 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 5 | 99-9847 | NAMEPLATE - switch panel (50s TG IV) | 1 | |
| 6 | 45-1565 | THERMOSTAT - TG IV | 1 | |
| 55-3029 | SCREW - thermostat | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 44-5234 | SENSOR - thermostat | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 7 | 44-9260 | BUTTON - reset (50s only) | 1 | |
| 8 | 91-4756 | PANEL - switch | 1 | |
| 55-2965 | NUT - panel | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4396 | SCREW - terminals | 4 | ||
| 99-4976 | STRIP - sealing (50 ft) | A/R | ||
| 9 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 10 | 61-3467 | THERMOMETER (C) | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 55-3256 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-5754 | NUT (hexstop) | 3 | ||
| 11 | 44-1196 | SWITCH - on/off | 1 | |
| 44-8688 | BOOT - switch | 1 | ||
| 12 | 91-3410 | BRACKET - thermometer | 1 | |
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 13 | 91-4755 | BRACKET - pc board | 1 | |
| 14 | 44-9945 | BOARD - relay | 1 | |
| 55-3443 | SCREW - board | 5 | ||
| 55-3800 | LOCKWASHER | 5 | ||
| 55-2201 | FLATWASHER | 5 | ||
| 15 | 44-3186 | RELAY (3pdt) | 4 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 55-2989 | SCREW - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 16 | 99-2027 | SPRING - holddown | 4 | |
| 17 | 44-8162 | TIMER - heater initiation | 1 | |
| 55-2965 | NUT - timer | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 18 | 44-7261 | DIODE - light emitting (red) | 1 | |
| 44-3400 | DIODE - silicone rectifier | 1 | ||
| 44-9189 | CAPACITOR (4.7 MFD) | 1 | ||
| 19 | 44-7262 | DIODE - light emitting (green) | 1 | |
| 44-7272 | RESISTOR (1000 ohm) | 3 | ||
| 20 | 91-1106 | FASTENER - door | 1 | |
| 21 | 91-1107 | FASTENER - panel | 1 |
