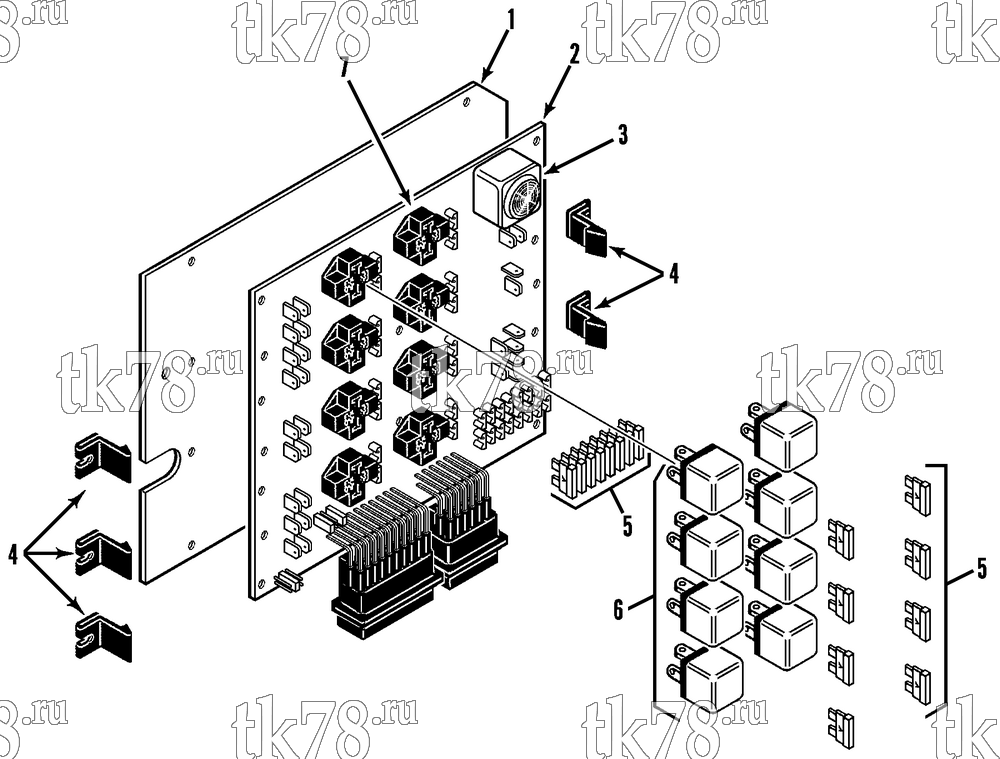

Установкa Thermo King схема RELAY BOARD ASSEMBLY – 114A4
Обновление от: 9/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3356 | PANEL - relay board | 1 | |
| 2 | 44-9468 | BOARD - relay (incl 3 & 4) | 1 | |
| 55-3256 | SCREW - board | 9 | ||
| 3 | 41-8291 | BUZZER - warning | 1 | |
| 4 | 91-1277 | RETAINER - harness connector | 5 | |
| 55-2262 | RIVET - retainer | 5 | ||
| 55-3550 | FLATWASHER | 10 | ||
| 5 | 44-9524 | FUSE (3 amp) | 16 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 6 | 44-9111 | RELAY - mini | 8 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 7 | 44-6032 | SOCKET - mini relay | 8 |
