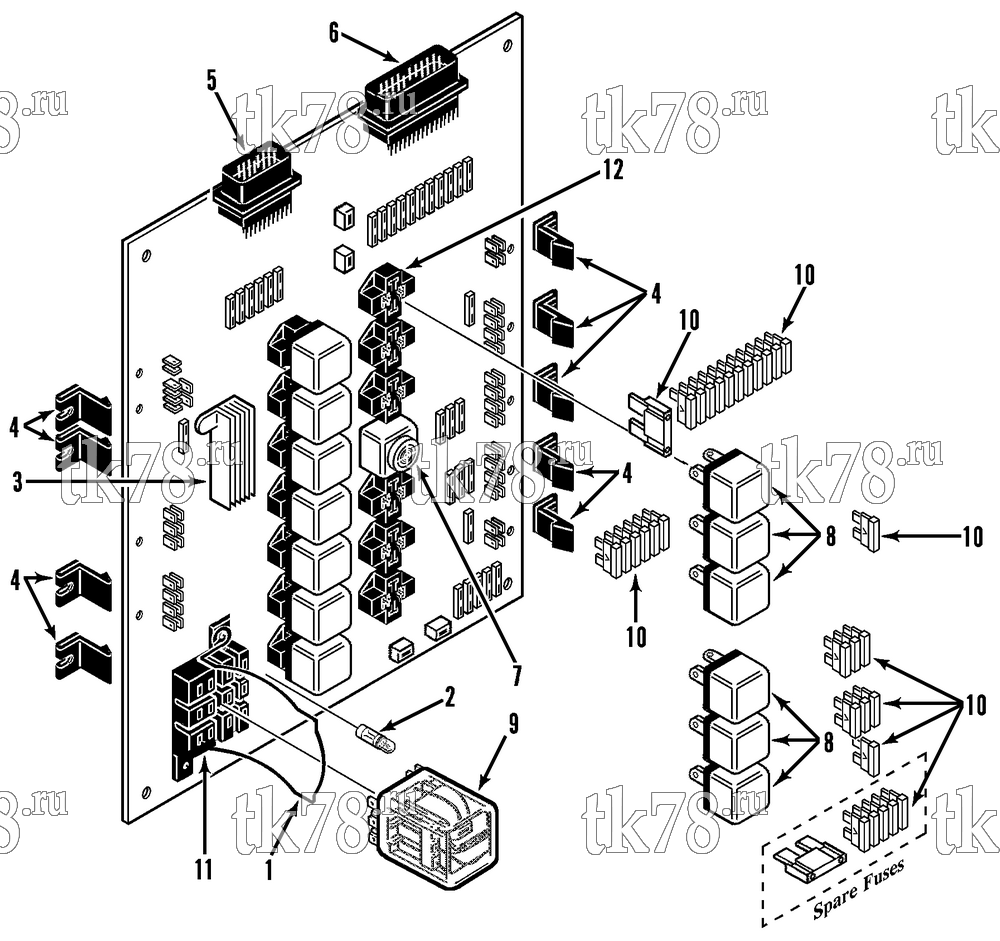

Установкa Thermo King схема RELAY BOARD GROUP – 110E9
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1676 | BOARD - relay | 1 | ||
| 1 | 99-2027 | SPRING - holddown (relay) | 1 | |
| 2 | 44-8182 | DIODE - LED (red) | 13 | |
| 3 | 44-9916 | SHUNT | 1 | |
| 44-9916 OEM | Регулятор напряжения | 16 100 ₽ |
|
|
| 4 | 91-1277 | RETAINER - harness connector | 9 | |
| 55-3044 | RIVET | 9 | ||
| 55-3550 | FLATWASHER | 9 | ||
| 5 | 44-9857 | CONNECTOR (18-pin) | 1 | |
| 6 | 44-9856 | PLUG (36-pin) | 1 | |
| 7 | 41-8291 | BUZZER - warning | 1 | |
| 8 | 41-603 | RELAY - mini | 13 | |
| 9 | 44-3186 | RELAY - plug-in | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 10 | 44-9524 | FUSE (3 amp) | 27 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 44-9758 | FUSE (10 amp) | 2 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 44-9924 | FUSE (40 amp) | 2 | ||
| 11 | 44-6459 | SOCKET - relay | 1 | |
| 12 | 44-6032 | SOCKET - mini plug | 13 |
