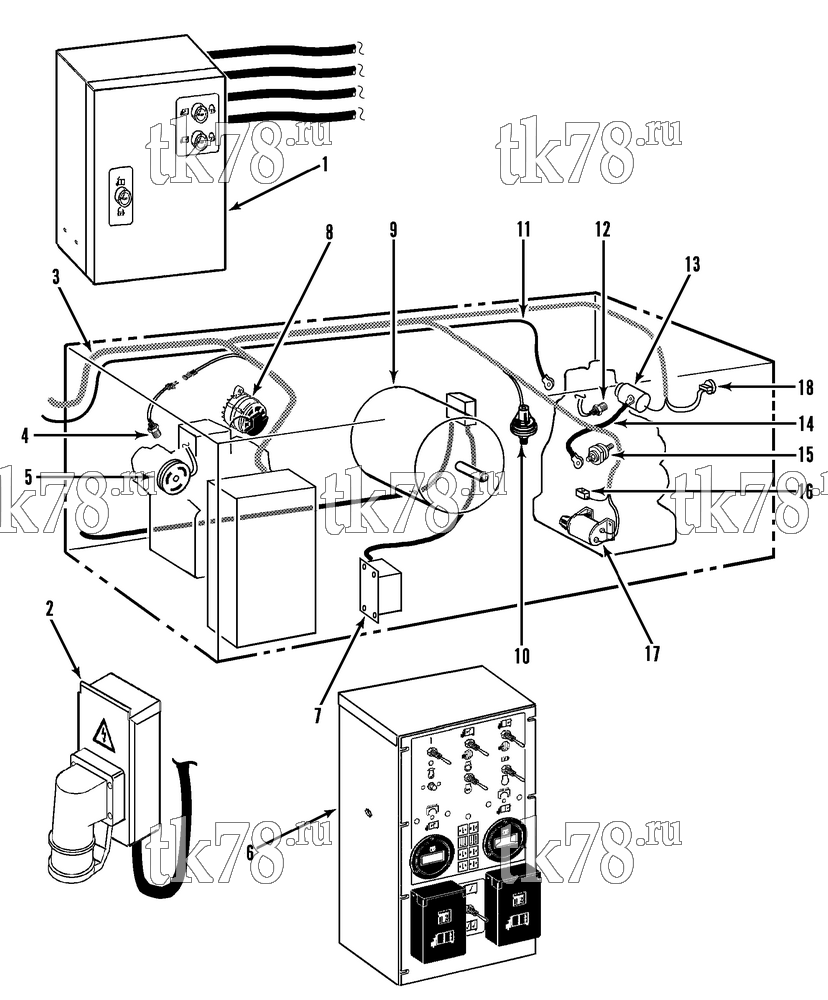

Установкa Thermo King схема ELECTRICAL COMPONENTS – 110B6
Обновление от: 1/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1700 | BOX - high voltage control (see 93F4) | 1 | |
| 2 | 44-6875 | RECEPTACLE - power (see 110B8) | 1 | |
| 3 | 44-9896 | HARNESS - main | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 4 | ||
| 4 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 5 | 107-150 | KIT - clutch drive repair (see 100B11) | 1 | |
| 6 | 98-3825 | BOX - control (see 93F3) | 1 | |
| 7 | 91-1692 | BOX - capacitor (see 93E9) | 1 | |
| 8 | 44-6981 | ALTERNATOR (72 amp, see 74A12) | 1 | |
| 9 | 104-521 | MOTOR (380/460V, see 110B12) | 1 | |
| 10 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 11 | 44-9733 | CABLE - battery (35 ft lg) | 1 | |
| 12 | 44-3018 | SWITCH - water temperature (see 110B7) | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 13 | 45-1718 | STARTER (see 132A8) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 310 ₽ |
|
|
| 845-2326 | STARTER (remanufactured) | 1 | ||
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 14 | 44-9732 | CABLE - starter (21 in) | 1 | |
| 15 | 55-3167 | STUD - terminal | 1 | |
| 55-5901 | WASHER - shoulder | 2 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER (internal tooth) | 4 | ||
| 55-3496 | LOCKWASHER (internal/external) | 1 | ||
| 16 | 44-7325 | SWITCH - micro (see 110B4) | 1 | |
| 17 | 44-8586 | SOLENOID - throttle (see 110B4) | 1 | |
| 18 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 44-6451 | CONNECTOR - hourmeter | 1 | ||
| 19 | 99-3427 | MOUNT - harness (small) | 1 | |
| 99-3281 | MOUNT - cable tie (harness, large) | A/R | ||
| 55-2330 | BANDWRAP (small) | A/R | ||
| 55-2331 | BANDWRAP (large) | A/R |
