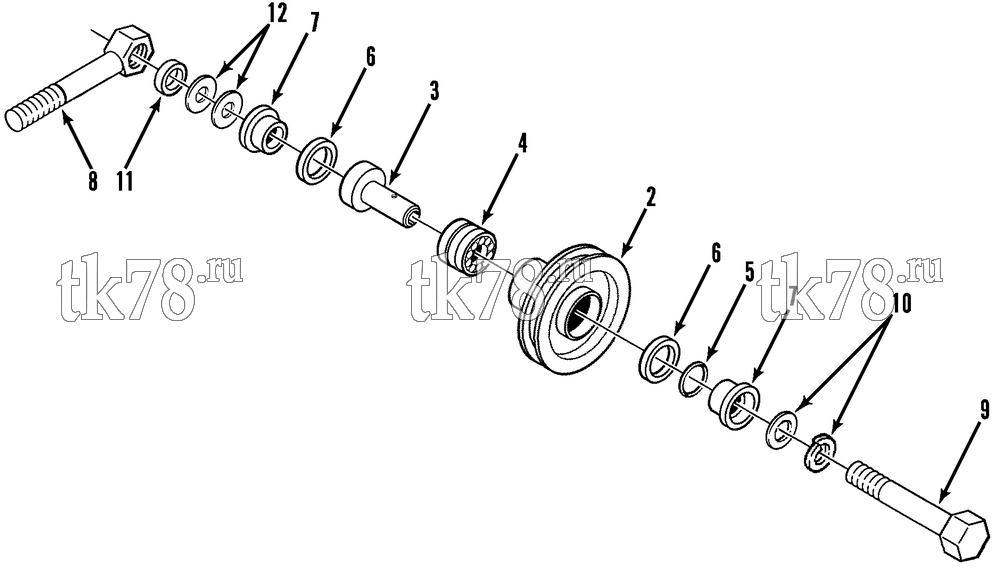

Установкa Thermo King схема IDLER PULLEY GROUP – 105G7
Обновление от: 3/7/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 77-2083 | PULLEY - idler (V-groove) | 1 | ||
| 77-2086 | PULLEY - idler (flat groove) | 1 | ||
| 1 | Not Used | |||
| 2 | 77-2085 | PULLEY - idler (V-groove) | 1 | |
| 77-2087 | PULLEY - idler (flat groove) | 1 | ||
| 3 | 77-2084 | SPINDLE | 1 | |
| 4 | 77-2389 | BEARING - roller | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 5 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 6 | 33-1924 | SEAL - oil | 1 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 7 | 33-1163 | RING - seal | 1 | |
| 204-394 | GREASE - high temperature | A/R | ||
| 8 | 55-7346 | NUT | 1 | |
| 9 | 55-7571 | SCREW - pulley (see note) | 1 | |
| 10 | 55-6283 | LOCKWASHER | 1 | |
| 55-5871 | FLATWASHER | 1 | ||
| 11 | 55-7411 | WASHER - special | 1 | |
| 12 | 55-5871 | SPACER (see note) | 1 |
