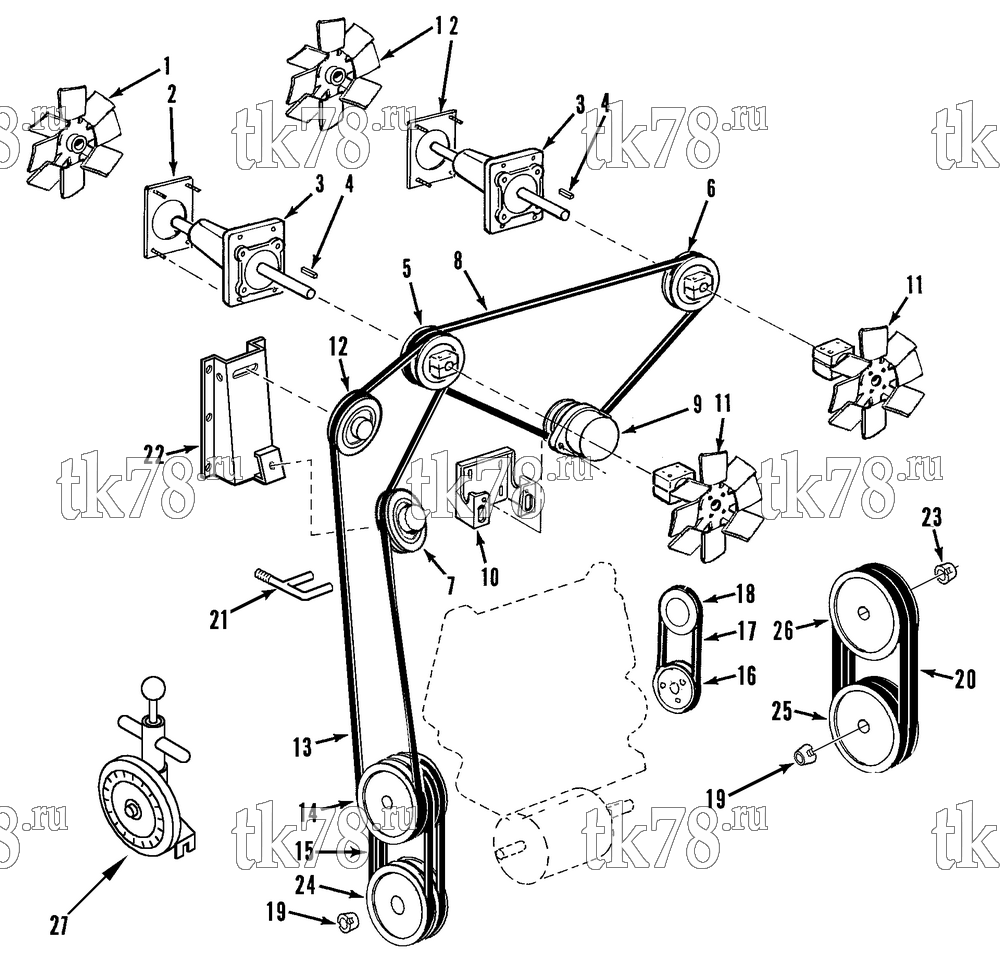

Установкa Thermo King схема FANS, BELTS & PULLEYS GROUP (LND 30 & 50) – 105G5
Обновление от: 12/6/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-867 | FAN - evaporator | 2 | |
| 2 | 91-3915 | BOLTPLATE - fanshaft | 2 | |
| 55-7344 | NUT - fanshaft | 8 | ||
| 55-6999 | FLATWASHER | 8 | ||
| 3 | 78-871 | FANSHAFT - assembly (see 106A3) | 2 | |
| 4 | 55-457 | KEY - fanshaft | 4 | |
| 5 | 77-2080 | PULLEY - fan drive | 1 | |
| 55-139 | SCREW - hub | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 6 | 77-2081 | PULLEY - fan | 1 | |
| 55-7343 | SCREW - pulley | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 7 | 77-2087 | PULLEY - idler (see 105G7) | 1 | |
| 8 | 78-626 | BELT - fan & alternator | 1 | |
| 10-78-626 | Ремень вентилятора и генератора, LND | 4 940 ₽ |
|
|
| 9 | 44-8500 | ALTERNATOR (35 amp, see 116B10) | 1 | |
| 77-1958 | WHEEL - alternator | 1 | ||
| 77-2089 | PULLEY - alternator | 1 | ||
| 55-2042 | NUT - pulley | 1 | ||
| 55-4766 | LOCKWASHER | 1 | ||
| 55-1600 | KEY | 1 | ||
| 10 | 91-3919 | MOUNT - alternator | 1 | |
| 91-3918 | BOLTSTRIP | 2 | ||
| 55-6999 | WASHER - special | 4 | ||
| 55-7344 | NUT | 4 | ||
| 55-7350 | SCREW - alternator (12 mm) | 2 | ||
| 55-7024 | FLATWASHER | 4 | ||
| 55-7003 | NUT | 2 | ||
| 55-7351 | SCREW - alternator (10 mm) | 1 | ||
| 55-4625 | FLATWASHER | 1 | ||
| 55-7005 | NUT | 1 | ||
| 11 | 78-863 | FAN & HUB - assembly | 2 | |
| 55-6994 | SCREW - fan to hub | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-7343 | SCREW - hub to shaft | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 12 | 77-2083 | PULLEY - idler (see 105G7) | 1 | |
| 13 | 78-1050 | BELT - fan drive | 1 | |
| 10-78-1050 | Ремень вентиляторов, LND | 4 070 ₽ |
|
|
| 14 | 107-225 | CLUTCH | 1 | |
| 70-153 | KIT - clutch | 1 | ||
| 55-5419 | SCREW - clutch | 3 | ||
| 55-5411 | LOCKWASHER | 3 | ||
| 15 | 78-865 | BELT - engine (50 cycle units) | 2 | |
| 78-973 | BELT - engine (60 cycle units) | 1 | ||
| 16 | 77-1825 | PULLEY - crankshaft (see 90D8) | 1 | |
| 17 | 78-767 | BELT - water pump | 1 | |
| 10-78-767 | Ремень водяной помпы, RD/TD-II / URD-III | 2 620 ₽ |
|
|
| PP-78-767 | Ремень водяной помпы, RD/TD-II / URD-III | 590 ₽ |
|
|
| 18 | 77-1426 | PULLEY - water pump (see 90D10) | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 19 | 77-2093 | BUSHING | 2 | |
| 20 | 78-662 | BELT - motor to compressor (50 cycle units) | 2 | |
| 78-972 | BELT - motor to compressor (60 cycle units) | 1 | ||
| 20 | 78-1010 | BELT - motor to compressor (bonded belt) | 2 | |
| 21 | 77-2088 | GUARD - belt | 1 | |
| 55-7348 | NUT | 2 | ||
| 55-7347 | LOCKWASHER | 2 | ||
| 55-4625 | FLATWASHER | 2 | ||
| 22 | 91-3916 | BRACKET - idler pulley | 1 | |
| 91-3917 | BOLTSTRIP | 3 | ||
| 55-6999 | FLATWASHER | 6 | ||
| 55-7344 | NUT | 6 | ||
| 23 | 77-2537 | BUSHING | 1 | |
| 70-184 | KIT - screws & washers | 1 | ||
| 77-2373 | PULLEY - compressor (use with belt 78-1010) | 1 | ||
| 55-455 | KEY | 1 | ||
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 24 | 77-2361 | PULLEY - motor (50 cycle units) | 1 | |
| 77-2362 | PULLEY - motor (60 cycle units) | 1 | ||
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 25 | 77-2360 | PULLEY - motor (50 cycle units use with belt 78-662) | 1 | |
| 77-2363 | PULLEY - motor (60 cycle units use with belt 78-972) | 1 | ||
| 77-2374 | PULLEY - motor (use with belt 78-1010) | 1 | ||
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 26 | 77-2360 | PULLEY - compressor (use with belt 78-662 or 78-972) | 1 | |
| 27 | 204-427 | GAUGE - belt tension | 1 |
