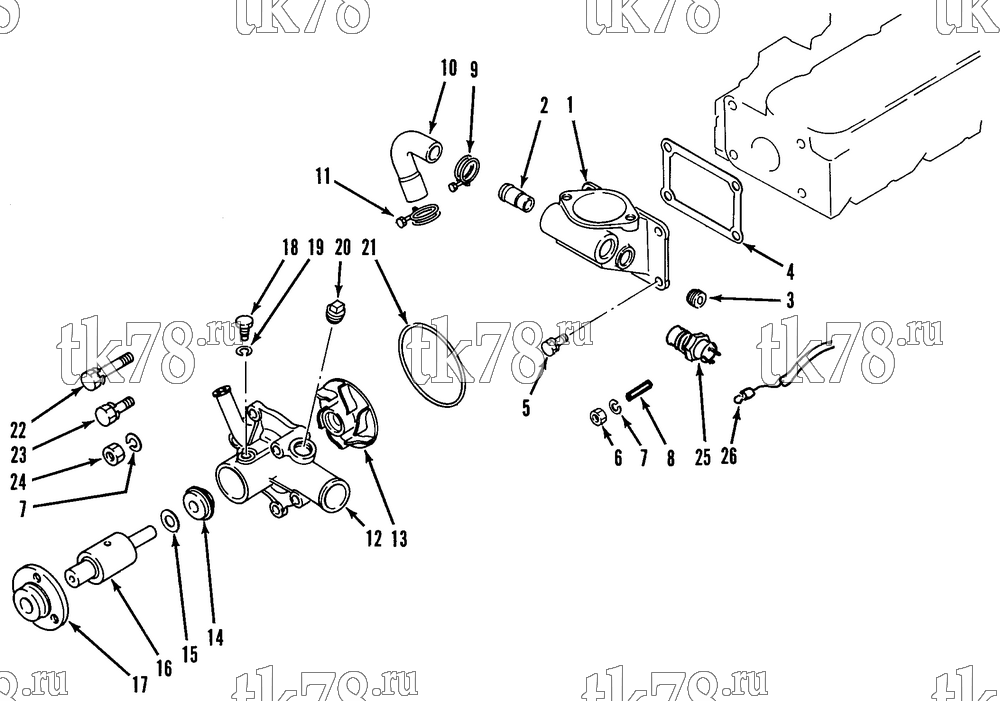

Установкa Thermo King di 2.2 Engine схема WATER PUMP GROUP – 68E1
Обновление от: 8/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5860 | HOUSING - thermostat | 1 | |
| 2 | 11-5862 | PIPE - bypass | 1 | |
| 3 | 55-5504 | PLUG - housing | 1 | |
| 4 | 33-3169 | GASKET - housing | 1 | |
| 5 | 55-5455 | SCREW - housing | 2 | |
| 6 | 55-2433 | NUT - housing | 2 | |
| 7 | 55-790 | LOCKWASHER | 5 | |
| 8 | 55-2391 | STUD - housing | 2 | |
| 9 | 55-3401 | CLAMP - hose | 1 | |
| 10 | 11-5861 | HOSE - bypass (neoprene) | 1 | |
|
10-11-5861 | Трубка обходная, Isuzu 2.2 D.I. | 2 200 ₽ |
|
| 11-5932 | HOSE - bypass (silicone) | 1 | ||
| 11 | 55-3401 | CLAMP - hose | 1 | |
| 12 | 11-9356 | PUMP - water | 1 | |
|
US-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 8 960 ₽ |
|
|
PP-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 5 560 ₽ |
|
| 811-9356 | PUMP - water (remanufactured) | 1 | ||
| 13 | NSS | IMPELLER | 1 | |
| 14 | NSS | SEAL | 1 | |
| 15 | NSS | THROWER | 1 | |
| 16 | NSS | BEARING | 1 | |
| 17 | 11-5859 | CENTER - pulley (w/ 5/16/-18 threads) | 1 | |
| 18 | 55-2454 | SCREW - set | 1 | |
| 19 | 55-790 | LOCKWASHER | 1 | |
| 20 | 55-5502 | PLUG | 1 | |
| 21 | 33-1646 | O-RING | 1 | |
| 22 | 55-5503 | SCREW - pump (50 mm lg) | 2 | |
| 23 | 55-6944 | SCREW - pump (30 mm lg) | 1 | |
| 24 | 55-2433 | NUT - pump | 2 | |
| 25 | 44-4066 | SWITCH - water temperature (low speed start) | 1 | |
| 26 | 44-6880 | HARNESS - low speed start | 1 | |
| 30-262 | GASKET SET (see 80A6) | 1 | ||
|
10-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 24 300 ₽ |
|
| PP-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 14 620 ₽ |
|
