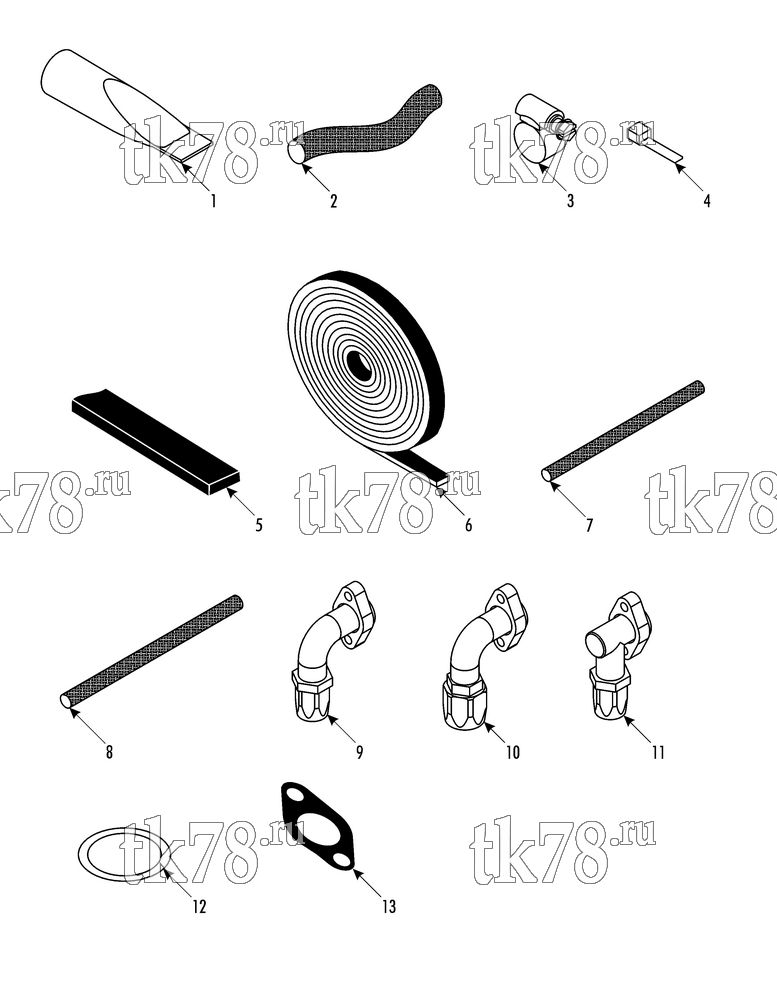

Установкa Thermo King XRT700 1004 24Vdc BRUSHLESS схема INSTALLATION COMPONENTS – 265A5
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - hose check | 4 | |
| 2 | 91-9006 | HOSE | A/R | |
| 3 | 55-6726 | CLAMP | 4 | |
| 4 | 55-2330 | BANDWRAP | 4 | |
| 5 | 33-3531 | STRIP - neoprene | A/R | |
| 6 | 203-391 | SEALER - tape | A/R | |
| 7 | 61-4769 | HOSE (#16) | A/R | |
| 8 | 61-4770 | HOSE (#20) | A/R | |
| 9 | 61-475 | FITTING (#16, 90 deg) | 1 | |
| 10 | 61-476 | FITTING (#20, 90 deg) | 1 | |
| 11 | 61-6422 | FITTING (#20, 90 deg, short) | 1 | |
| 12 | 33-3191 | GASKET - flat | 4 | |
| 13 | 33-3700 | GASKET - flat | 5 |
