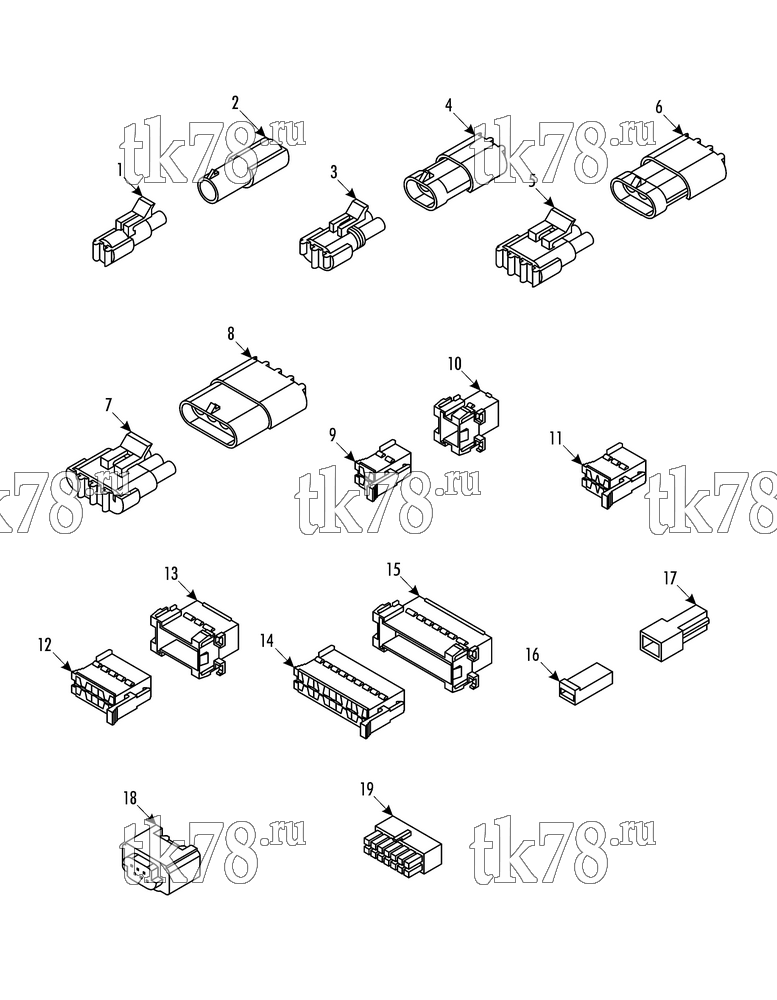

Установкa Thermo King XRT700 1004 24Vdc BRUSHLESS схема CONNECTORS – 265A3
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7327 | CONNECTOR - tower (1 pin) | A/R | |
| 2 | 44-7330 | CONNECTOR - shroud (1 pin) | A/R | |
| 3 | 44-5838 | CONNECTOR - tower (black, 2 pin) | A/R | |
| 4 | 44-5835 | CONNECTOR - shroud (black, 2 pin) | A/R | |
| 5 | 44-6959 | CONNECTOR - tower (3 pin) | A/R | |
| 6 | 44-9569 | CONNECTOR - shroud (3 pin) | A/R | |
| 7 | 44-7873 | CONNECTOR - tower (4 pin) | A/R | |
| 8 | 44-7880 | CONNECTOR - shroud (4 pin) | A/R | |
| 9 | 41-2769 | CONNECTOR - female (4 pin) | A/R | |
| 10 | 41-4949 | CONNECTOR - male (4 pin) | A/R | |
| 11 | 41-2767 | CONNECTOR - female (6 pin) | A/R | |
| 12 | 41-3855 | CONNECTOR - female (10 pin) | A/R | |
| 13 | 41-4054 | CONNECTOR - male (10 pin) | A/R | |
| 14 | 41-3856 | CONNECTOR - female (18 pin) | A/R | |
| 15 | 41-2772 | CONNECTOR - male (18 pin) | A/R | |
| 16 | 44-6381 | CONNECTOR - female (1 pin) | A/R | |
| 17 | 44-6264 | CONNECTOR - male (1 pin) | A/R | |
| 18 | 41-3288 | CONNECTOR - female (6 pin) | A/R | |
| 19 | 41-661 | CONNECTOR - in-line (14 pin, male) | A/R |
