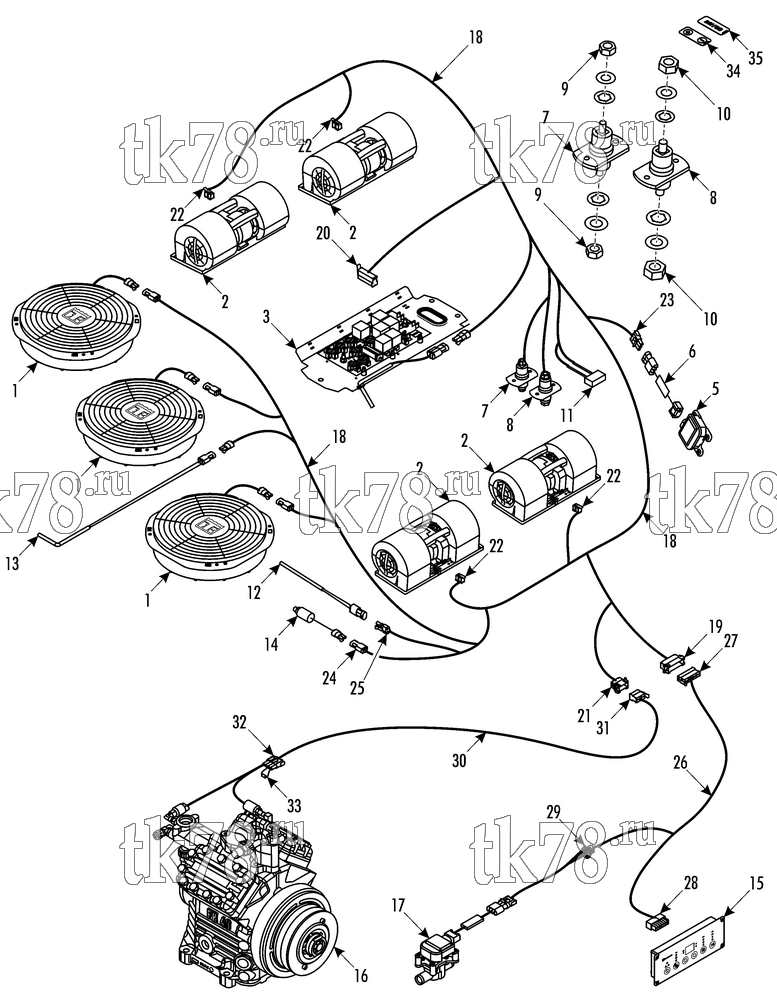

Установкa Thermo King XRT700 1004 24Vdc BRUSHLESS схема ELECTRICAL COMPONENTS – 265A2
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN - assembly (24VDC) | 3 | |
| 2 | 78-1679 | BLOWER | 4 | |
| 55-7696 | SCREW - blower | 16 | ||
| 55-7861 | LOCKWASHER | 16 | ||
| 55-7697 | FLATWASHER | 16 | ||
| 55-7866 | NUT - captive | 16 | ||
| 3 | NSS | CONTROL PANEL (see 265A1) | 1 | |
| 4 | 41-4157 | SENSOR - temperature | 1 | |
| 5 | 41-2755 | SERVOMOTOR | 1 | |
| 6 | 41-8714 | HARNESS - servomotor controller (for connectors see 265A3) | 1 | |
| 7 | 41-9742 | CONNECTOR (M8, positive) | 1 | |
| 8 | 41-9743 | CONNECTOR (M10, positive) | 1 | |
| 55-6994 | SCREW - connectors | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | LOCKNUT | 4 | ||
| 9 | 305-1653 | NUT (M8) | 2 | |
| 55-8955 | FLATWASHER | 2 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 10 | 55-9189 | NUT (M10) | 2 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 11 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7863 | SCREW - supressor | 1 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 55-7864 | NUT | 1 | ||
| 12 | 41-4157 | SENSOR - temperature | 1 | |
| 13 | 41-4335 | SENSOR - temperature | 1 | |
| 14 | 41-5220 | SWITCH - condenser pressure switch | 1 | |
| 42-979 | CONNECTOR - short cut | 1 | ||
| 15 | 41-7211 | ClimaAIRE I D | 1 | |
| 16 | NSS | COMPRESSOR - assy (see 252A2) | 1 | |
| 17 | 41-5649 | VALVE - water (see 203E6) | 1 | |
| 18 | 42-980 | HARNESS - X700 Brushless ClimaAIRE I D (for connectors see 265A3) | 1 | |
| 19 | 41-2772 | CONNECTOR - male (18 pin) | 1 | |
| 20 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 21 | 41-4054 | CONNECTOR - male (10 pin) | 1 | |
| 22 | 41-2767 | CONNECTOR - female (6 pin) | 4 | |
| 23 | 44-6959 | CONNECTOR - tower (3 pin) | 1 | |
| 24 | 44-5835 | CONNECTOR - shroud (black, 2 pin) | 1 | |
| 25 | 44-5838 | CONNECTOR - tower (black, 2 pin | 2 | |
| 26 | 41-7319 | HARNESS - CP x DP ClimaAIRE I D (12m, for connectors see 265A3) | 1 | |
| 27 | 41-3856 | CONNECTOR (female, 18 pin) | 1 | |
| 28 | 41-661 | CONNECTOR (in-line, 14term) | 1 | |
| 29 | 41-4949 | CONNECTOR (male, 4 pin) | 1 | |
| 30 | 41-7610 | HARNESS - compressor (X430 or FKX, 12 m, w/o excitation, for connectors see 265A3) | 1 | |
| 31 | 41-3855 | CONNECTOR (female, 10 pin) | 1 | |
| 32 | 44-7873 | CONNECTOR - tower (4 pin) | 1 | |
| 33 | 44-3228 | DIODE - rectifier (unit w/ compressor X430 or FKX) | 1 | |
| 34 | 91-7509 | NAMEPLATE - Positive/Negative | 1 | |
| 35 | 91-7543 | NAMEPLATE - 24VDC | 1 |
