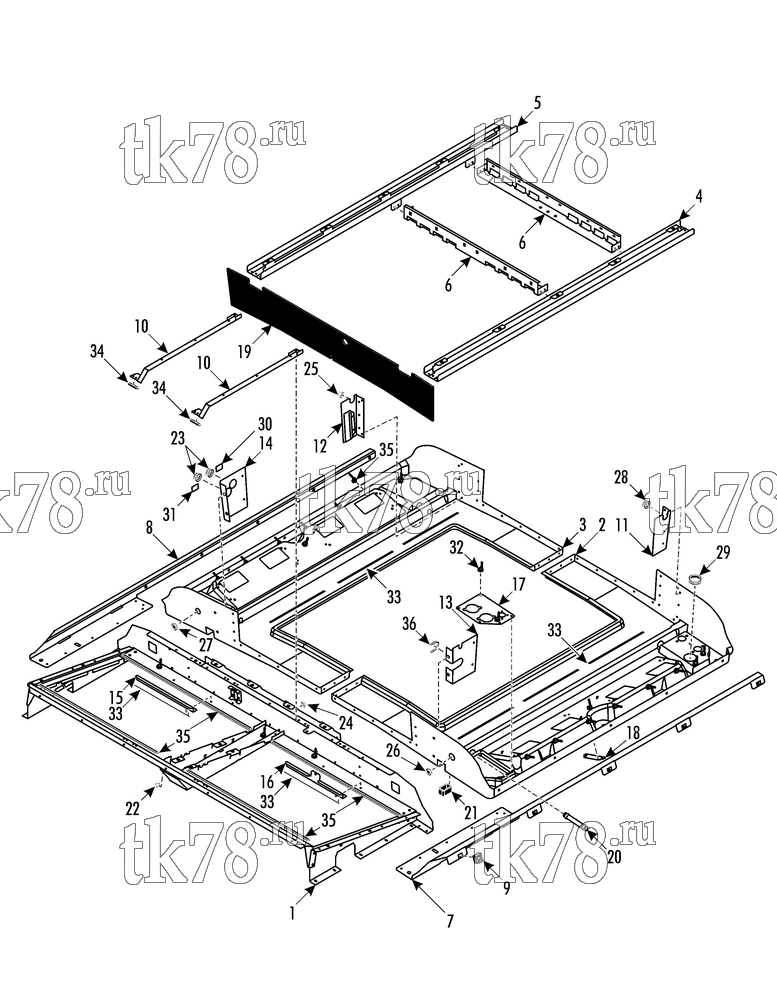

Установкa Thermo King XRT700 1004 24Vdc BRUSHLESS схема FRAME AND COMPONENTS – 263H9
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8677 | FRAME - condenser, weld | 1 | |
| 2 | 98-8678 | BASE - evaporator | 1 | |
| 3 | 98-8679 | BASE - evaporator | 1 | |
| 55-5047 | RIVET - base to frame | 16 | ||
| 55-5047 | RIVET - base to base | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 4 | 92-8877 | HOLDER - assy | 1 | |
| 5 | 92-8878 | HOLDER - assy | 1 | |
| 55-5130 | RIVET - holder | 8 | ||
| 55-7373 | NUT - captive, cover | 10 | ||
| 6 | 92-8850 | HOLDER - control panel | 2 | |
| 55-5130 | RIVET - holder | 8 | ||
| 7 | 92-8879 | BEAM | 1 | |
| 8 | 92-8880 | BEAM | 1 | |
| 55-5130 | RIVET - beam | 14 | ||
| 55-7035 | SCREW - beam | 10 | ||
| 55-6996 | LOCKWASHER | 10 | ||
| 51-871 | WASHER - sealing | 10 | ||
| 55-7373 | NUT - captive | 10 | ||
| 9 | 55-9194 | NUT - captive, cover | 10 | |
| 10 | 92-8881 | HOLDER | 2 | |
| 55-5130 | RIVET - holder | 8 | ||
| 11 | 92-8839 | HOLDER - evaporator | 1 | |
| 12 | 92-8840 | HOLDER - evaporator | 1 | |
| 55-5047 | RIVET - holder | 10 | ||
| 13 | 92-8882 | BRACKET - evaporator | 1 | |
| 14 | 92-8884 | BRACKET - evaporator | 1 | |
| 55-7035 | SCREW - bracket | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 4 | ||
| 15 | 92-8841 | BRACKET - condenser | 1 | |
| 16 | 92-8842 | BRACKET - condenser | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 17 | 92-8843 | PLATE - connections | 1 | |
| 55-3628 | RIVET - plate | 5 | ||
| 18 | 92-8885 | HOLDER - blower | 8 | |
| 55-5047 | RIVET - holder | 16 | ||
| 19 | 92-8853 | INSULATION | 1 | |
| 20 | 61-5493 | TUBE - drain | 4 | |
| 21 | 33-4762 | PLUG - plastic | 4 | |
| 22 | 33-314 | GROMMET (0.312 id) | 1 | |
| 23 | 33-612 | GROMMET (0.875 id) | 2 | |
| 24 | 33-1215 | GROMMET (0.500 id) | 1 | |
| 25 | 33-4097 | GROMMET (0.625 id) | 1 | |
| 26 | 33-572 | GROMMET (0.750 id) | 1 | |
| 27 | 33-287 | GROMMET (0.625 id) | 1 | |
| 28 | 33-4262 | GROMMET (0.827 id) | 1 | |
| 29 | 33-1770 | GROMMET (1.500 id) | 1 | |
| 30 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 31 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 32 | 51-1631 | STRAP - cable | A/R | |
| 33 | 33-3540 | STRIP - .12thk 0.6w neoprene - roll of 10m | A/R | |
| 34 | 33-4259 | STRIP - .38thk 0.4w neoprene - roll of 10m | A/R | |
| 35 | 33-4258 | STRIP - .19thk 0.3w neoprene - roll of 10m | A/R | |
| 36 | 92-3279 | RUBBER - profile - roll of 100m | A/R |
