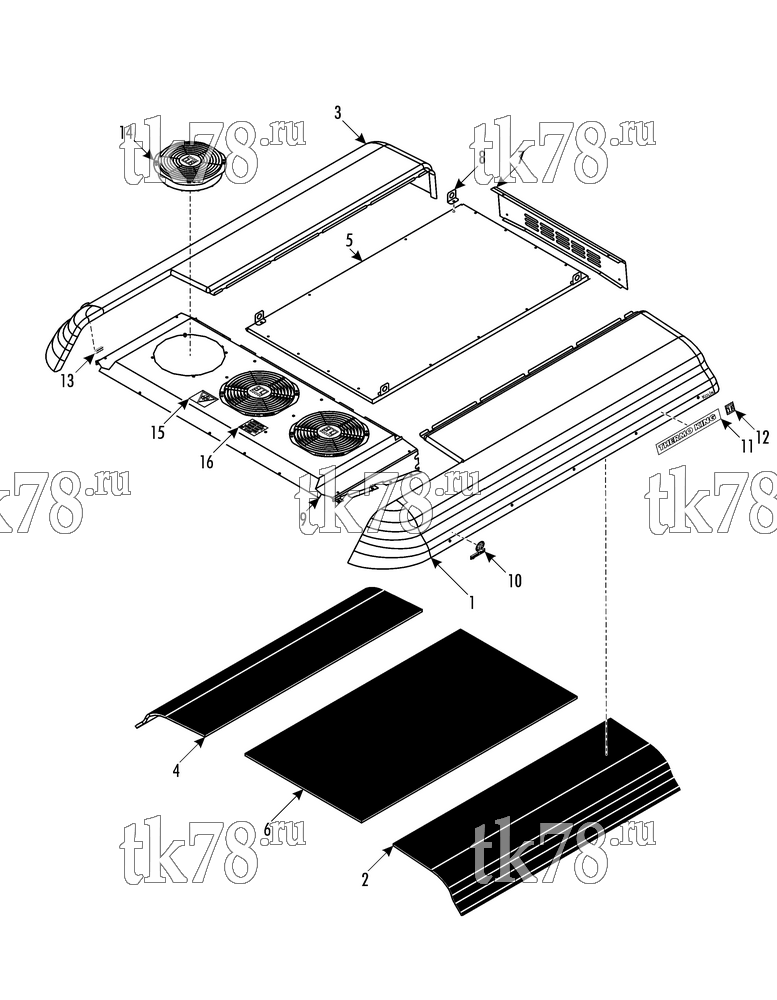

Установкa Thermo King XRT700 1004 24Vdc BRUSHLESS схема COVER – 245H6
Обновление от: 7/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9263 | COVER - side, plastic, complete | 1 | |
| 2 | 92-8835 | INSULATION | 1 | |
| 3 | 98-9264 | COVER - side, plastic, complete | 1 | |
| 4 | 92-8835 | INSULATION | 1 | |
| 51-1930 | SCREW - covers | 10 | ||
| 5 | 98-9265 | COVER - evaporator, complete | 1 | |
| 6 | 92-8837 | INSULATION | 1 | |
| 7 | 92-8799 | COVER - rear | 1 | |
| 55-7172 | SCREW - cover | 5 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 8 | 92-2430 | BRACKET - lifting | 4 | |
| 55-7172 | SCREW - bracket | 18 | ||
| 55-6996 | LOCKWASHER | 18 | ||
| 56-2086 | FLATWASHER | 18 | ||
| 9 | 98-8648 | COVER - condenser | 1 | |
| 55-7373 | NUT - captive | 12 | ||
| 55-5130 | RIVET - cover | A/R | ||
| 10 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 11 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 12 | 91-3247 | NAMEPLATE - TK logo | 2 | |
| 13 | 92-146 | GASKET - molded | A/R | |
| 14 | 78-1414 | FAN - assembly (24V) | 3 | |
| 78-1416 | GUARD - fan | 1 | ||
| 51-1243 | SCREW | 1 | ||
| 55-7372 | SCREW - fans | 12 | ||
| 55-9190 | WASHER - spring | 12 | ||
| 15 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 16 | 99-8507 | NAMEPLATE - Caution, Fan | 1 |
