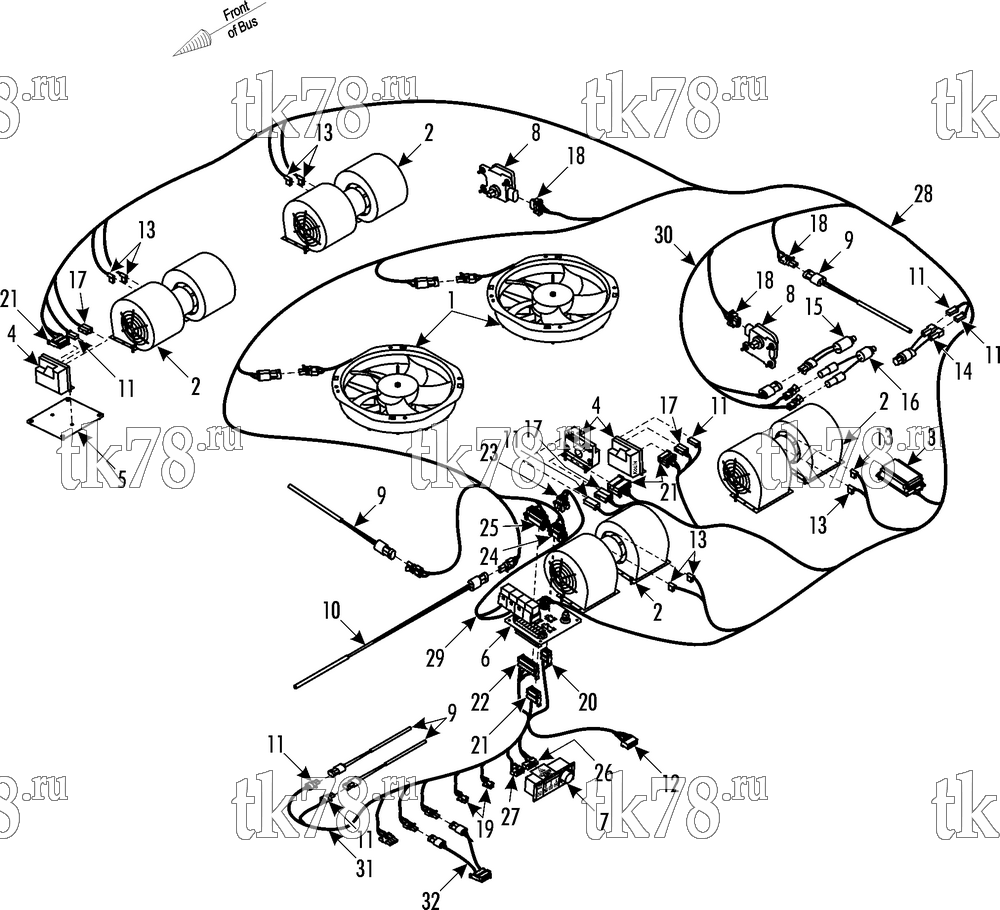

Установкa Thermo King XR-50 1004 Transit Bus Jonckheere схема ELECTRICAL COMPONENTS – 190E7
Обновление от: 7/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN - condenser (1/04 & after, see 198D9) | 2 | |
| 1 | 78-1344 | FAN - condenser (before 1/04) | 2 | |
| 2 | 78-1296 | BLOWER | 4 | |
| 55-7664 | SCREW - blower | 16 | ||
| 55-7369 | LOCKWASHER | 16 | ||
| 55-7368 | FLATWASHER | 16 | ||
| 3 | 41-3543 | MODULE - damper | 1 | |
| 55-7664 | SCREW | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 4 | 41-5361 | SPEEDCONTROLLER | 3 | |
| 55-7664 | SCREW | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7368 | FLATWASHER | 6 | ||
| 5 | 92-3546 | BRACKET - speed controller | 1 | |
| 55-5130 | RIVET | 4 | ||
| 6 | NSS | PANEL - control (see 190E8) | 1 | |
| 7 | 41-4658 | ClimaAIRE - controller (see 184F9) | 1 | |
| 8 | 41-3255 | SERVOMOTOR (24VDC) | 2 | |
| 55-7696 | SCREW | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 9 | 41-4157 | SENSOR - temperature (for connectors see 115D14) | 4 | |
| 10 | 41-4335 | SENSOR - temperature (for connectors see 115D14) | 1 | |
| 11 | 44-6381 | CONNECTOR (1-pin, female) | 16 | |
| 12 | 41-5828 | CONNECTOR (8-pin) | 1 | |
| 13 | 41-2774 | TERMINAL | 8 | |
| 14 | 41-4309 | SWITCH - lpco | 1 | |
| 15 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 16 | 41-1501 | SWITCH - hpco | 1 | |
| 41-1502 | SWITCH - only | 1 | ||
| 17 | 41-2891 | CONNECTOR (2-pin, male) | 3 | |
| 18 | 41-2768 | CONNECTOR (6-pin, female) | 3 | |
| 19 | 41-2769 | CONNECTOR (4-pin, female) | 2 | |
| 20 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 21 | 41-3855 | CONNECTOR (10-pin, female) | 4 | |
| 22 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 23 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 24 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 25 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 26 | 41-650 | CONNECTOR (18 terminal) | 1 | |
| 27 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 28 | 41-5829 | HARNESS - main | 1 | |
| 29 | 41-5830 | HARNESS - heating | 1 | |
| 30 | 41-5831 | HARNESS - fresh air | 1 | |
| 31 | 41-5832 | HARNESS - drive panel (for 920193, for connectors see 115D14) | 1 | |
| 41-6906 | HARNESS - drive panel (for 900027, for connectors, see 115D14) | 1 | ||
| 32 | 41-4024 | HARNESS - reduction (for 920193, for connectors see 115D14) | 1 | |
| 41-6907 | HARNESS - heat (for 900027, for connectors see 115D14) | 1 |
