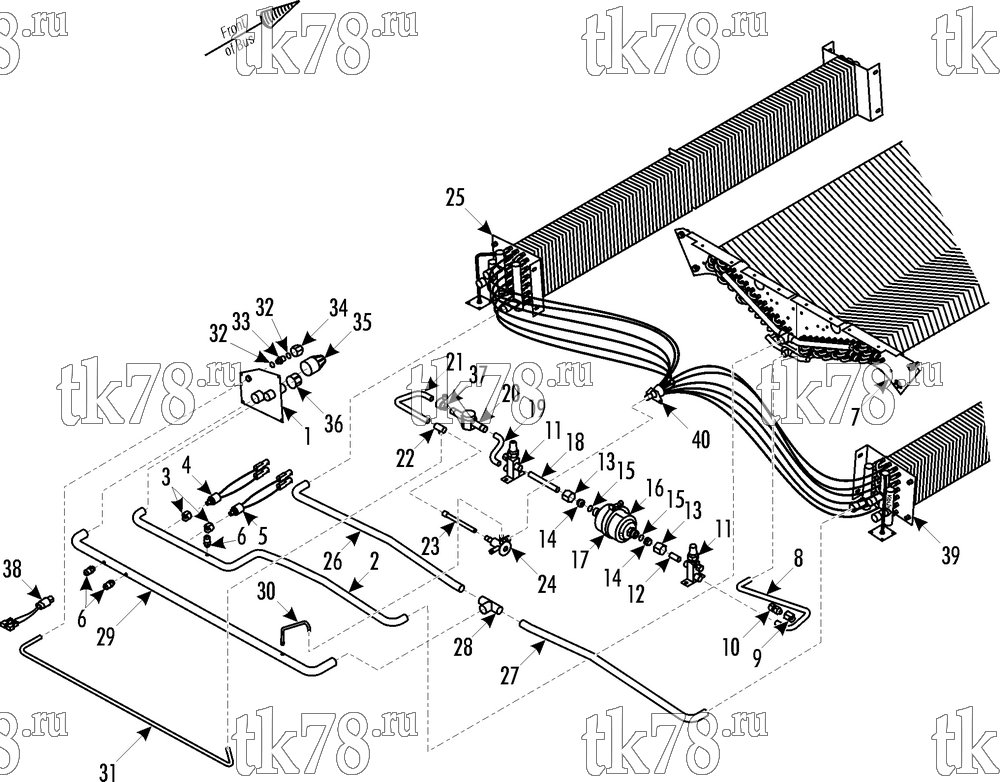

Установкa Thermo King XR-50 1000, 1004 схема REFRIGERATION COMPONENTS – 202F8
Обновление от: 2/15/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3541 | PLATE - adapter | 1 | |
| 55-5130 | RIVET - plate to frame | A/R | ||
| 2 | 61-2553 | TUBE - adapter to condenser | 1 | |
| 3 | 66-6996 | FITTING - saddle | 2 | |
| 4 | 41-1501 | SWITCH - hpco | 1 | |
| 5 | 41-5220 | SWITCH - lpco | 1 | |
| 6 | 61-2059 | VALVE | 3 | |
| 7 | NSS | CONDENSER (see 190E5) | 1 | |
| 8 | 61-2554 | TUBE - condenser to valve | 1 | |
| 9 | 51-806 | FITTING - saddle | 1 | |
| 10 | 66-9356 | VALVE | 1 | |
| 11 | 66-4694 | VALVE - shutoff | 2 | |
| 55-6994 | SCREW - valve (M6) | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 12 | 61-2555 | TUBE | 1 | |
| 13 | 55-6838 | NUT - shoulder | 2 | |
| 14 | 55-6837 | SHOULDER | 2 | |
| 15 | 33-566 | O-RING | 2 | |
| 16 | 66-8344 | FILTER - dehydrator | 1 | |
| 17 | 55-7800 | CLAMP - filter | 1 | |
| 18 | 61-2556 | TUBE | 1 | |
| 19 | 61-2557 | TUBE - valve to indicator | 1 | |
| 20 | 66-1188 | INDICATOR - liquid | 1 | |
| 21 | 61-2558 | TUBE - indicator to tee | 1 | |
| 22 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 23 | 61-2559 | TUBE - tee to expansion valve | 1 | |
| 24 | 61-1061 | VALVE - expansion | 1 | |
| 25 | 67-1989 | COIL - evaporator (for 006500) | 1 | |
| 67-2118 | COIL - evaporator (for 006499) | 1 | ||
| 55-5130 | RIVET - coil to frame (steel) | A/R | ||
| 55-2715 | RIVET - coil to frame (aluminum) | A/R | ||
| 55-6994 | SCREW - coil to frame (M6) | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 51-628 | FLATWASHER | 16 | ||
| 55-7373 | NUT - captive | 16 | ||
| 26 | 61-2561 | TUBE - evaporator to tee | 1 | |
| 27 | 61-2560 | TUBE - evaporator to tee | 1 | |
| 28 | 55-2950 | TEE (3/4 x 3/4 x 7/8) | 1 | |
| 29 | 61-2562 | TUBE - tee to adapter | 1 | |
| 30 | 61-2563 | TUBE - to expansion valve | 1 | |
| 31 | 61-2564 | TUBE - tee to adapter | 1 | |
| 32 | 33-1461 | O-RING | 2 | |
| 33 | 92-120 | ADAPTER - plug | 1 | |
| 34 | 92-121 | NUT | 1 | |
| 35 | 92-3542 | CAP (plastic) | 1 | |
| 36 | 61-2552 | CAP - manifold | 1 | |
| 37 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp to frame (M6) | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 51-628 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 38 | 41-4309 | SWITCH - lpco | 1 | |
| 39 | 67-1990 | COIL - evaporator (for 006500) | 1 | |
| 67-2119 | COIL - evaporator (for 006499) | 1 | ||
| 40 | 61-3033 | DISTRIBUTOR | 1 | |
| 92-4611 | HOLDER - distributor | 1 | ||
| 61-3034 | TUBE - distributor | 12 |
