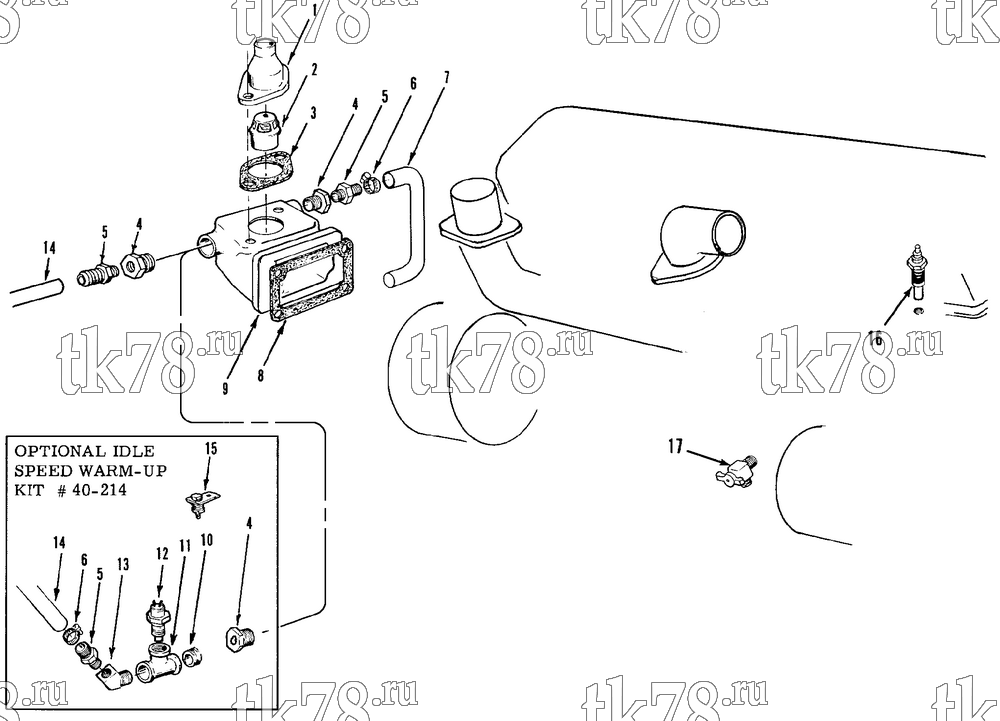

Установкa Thermo King XNWD 30 5100 & 5200 схема THERMOSTAT HOUSING GROUP – 6A9
Обновление от: 2/14/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | Not Used | |||
| 55-2969 | SCREW - adapter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 2 | 11-7702 | THERMOSTAT (180 F) | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 3 | 33-487 | GASKET | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 4 | 55-2116 | BUSHING | 1 | |
| 5 | 55-1592 | CONNECTOR - hose | 1 | |
| 6 | 55-1521 | CLAMP - hose | 3 | |
| 7 | 11-4564 | HOSE - bypass (neoprene) | 1 | |
|
10-11-4564 | Трубка обходная Bypass, Isuzu C-201 | 1 090 ₽ |
|
| 11-3946 | HOSE - bypass (silicone) | 1 | ||
| 8 | 33-787 | GASKET - housing | 1 | |
| 9 | 11-4058 | HOUSING - thermostat | 1 | |
| 55-4145 | SCREW - housing | 4 | ||
| 55-2434 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-2433 | NUT | 4 | ||
| 10 | 55-662 | NIPPLE | 1 | |
| 11 | 55-2251 | TEE | 1 | |
| 12 | 44-4066 | SWITCH - water temperature | 1 | |
| 13 | 55-1519 | ELBOW | 1 | |
| 14 | 98-796 | HOSE (neoprene, 5/8 x 25 ft) | 1 | |
| 12-383 | HOSE (silicone) | 1 | ||
| 15 | 44-4422 | BOARD - terminal | 1 | |
| 44-1133 | SCREW - board | 1 | ||
| 55-401 | FLATWASHER | 3 | ||
| 55-1852 | LOCKWASHER | 1 | ||
| 55-346 | NUT | 2 | ||
| 16 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 17 | 55-4957 | DRAIN COCK | 1 | |
| 30-175 | GASKET SET - engine overhaul | |||
|
10-30-175 | Набор прокладок двигателя (вкл. маслосъемные колпачки), Isuzu C-201 | 18 100 ₽ |
|
| 40-214 | KIT - idle speed warm up |
