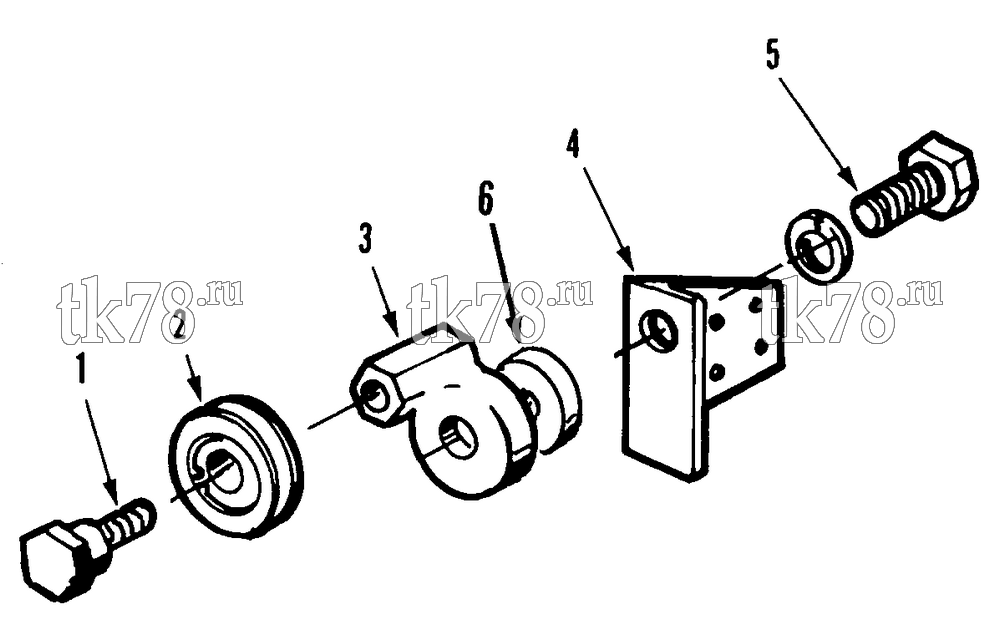

Установкa Thermo King XNWD 30 5100 & 5200 схема IDLER PULLEY – 32G7
Обновление от: 2/24/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-691 | BOLT - shoulder | 1 | |
| 2 | 77-1009 | PULLEY | 1 | |
| 77-2498 | SPACER | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 55-3157 | RING - retaining | 1 | ||
| 3 | 99-5008 | ARM - idler | 1 | |
| 4 | 99-6723 | BRACKET - idler pulley | 1 | |
| 55-3048 | SCREW - bracket | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 5 | 55-3589 | SCREW | 1 | |
| 55-365 | LOCKWASHER | 1 | ||
| 6 | 55-4565 | SPACER | 1 |
