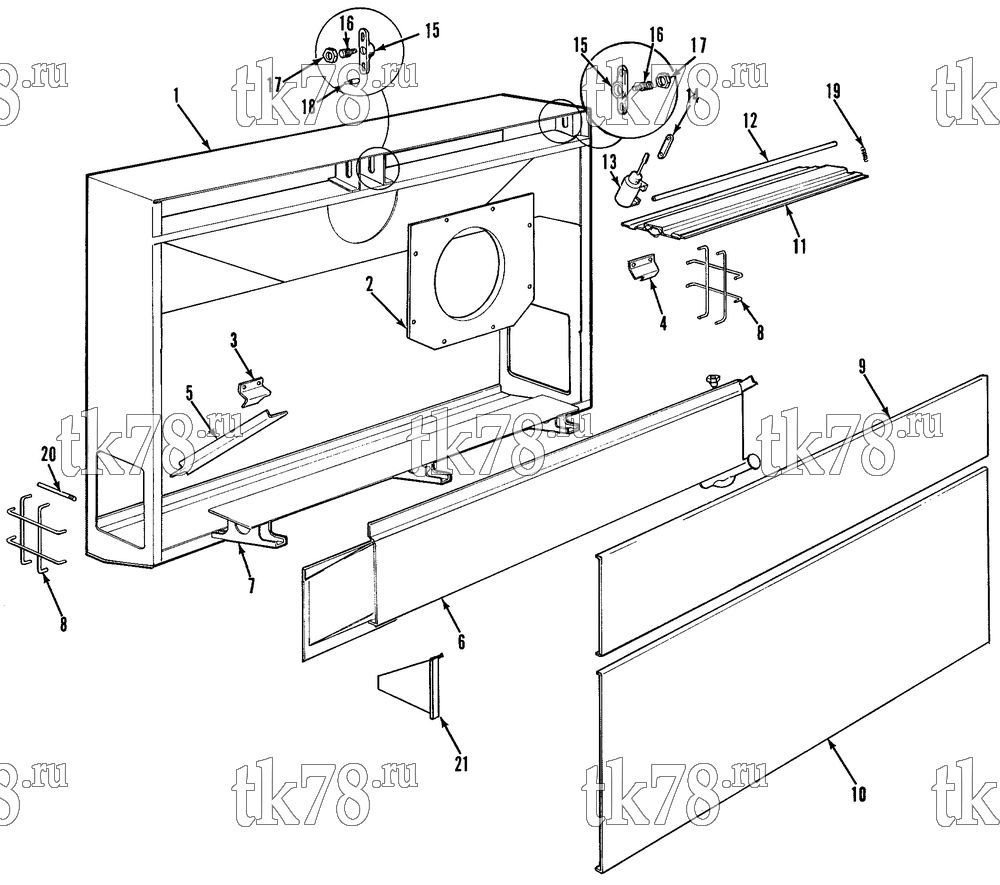

Установкa Thermo King XNWD 30 5100 & 5200 схема EVAPORATOR GROUP – 32G10
Обновление от: 7/29/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-1503 | COMPARTMENT - evaporator | 1 | |
| 2 | 98-1528 | ORIFICE - evaporator | 1 | |
| 55-2977 | SCREW - orifice | 8 | ||
| 55-3045 | LOCKWASHER - dome | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 3 | 99-4305 | BAFFLE (left) | 1 | |
| 55-3049 | SCREW - baffle | 2 | ||
| 4 | 99-4306 | BAFFLE (left) | 1 | |
| 55-3049 | SCREW - baffle | 2 | ||
| 5 | 99-4037 | ANGLE - extension coil | 1 | |
| 55-3848 | SCREW - coil | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 6 | 67-1455 | COIL - evaporator | 1 | |
| 99-4308 | BOLTSTRIP - coil | 1 | ||
| 55-2086 | FLATWASHER | 23 | ||
| 55-1800 | LOCKWASHER | 23 | ||
| 55-1533 | NUT - coil (top & bottom) | 16 | ||
| 55-3848 | SCREW - coil side | 7 | ||
| 7 | 98-1529 | SHIELD - thermo bulb | 1 | |
| 99-4309 | SPACER - shield | 6 | ||
| 55-1587 | SCREW - shield | 6 | ||
| 55-3028 | WASHER - sealing | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 8 | 99-4310 | GRILLE - evaporator (side) | 2 | |
| 55-3936 | NUT - speed | 8 | ||
| 9 | 98-1666 | PANEL - evaporator service | 1 | |
| 55-3611 | STUD - panel | 16 | ||
| 55-2657 | WASHER - split | 16 | ||
| 55-2354 | RECEPTACLE | 16 | ||
| 55-2270 | RIVET - receptacle | 32 | ||
| 10 | 98-1531 | PANEL - evaporator bottom | 1 | |
| 55-3136 | RIVET - panel | 18 | ||
| 11 | 98-1532 | BLADE - damper | 2 | |
| 12 | 99-4312 | SHAFT - damper | 2 | |
| 13 | 44-2823 | SOLENOID (see 15A9) | 2 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 55-1587 | SCREW - solenoid | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-1801 | NUT | 8 | ||
| 14 | 99-836 | LINK - shutter | 2 | |
| 99-837 | SPACER - shutter | 4 | ||
| 55-1049 | SCREW - link | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3199 | NUT | 4 | ||
| 15 | 99-1172 | SUPPORT - shaft | 4 | |
| 55-3620 | SCREW - support | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-1801 | NUT | 8 | ||
| 16 | 99-1663 | SHAFT - damper bearing | 4 | |
| 17 | 55-3274 | NUT (hexjam) | 4 | |
| 18 | 90-165 | STOP - damper | 2 | |
| 55-2965 | NUT - damper stop | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 99-4313 | SPRING | 4 | |
| 20 | 99-4314 | PIPE - drain | 2 | |
| 99-2230 | HOSE - drain | 2 | ||
| 21 | 99-4321 | BAFFLE - evaporator coil | 1 | |
| 55-3848 | SCREW - baffle | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1533 | NUT | 2 |
