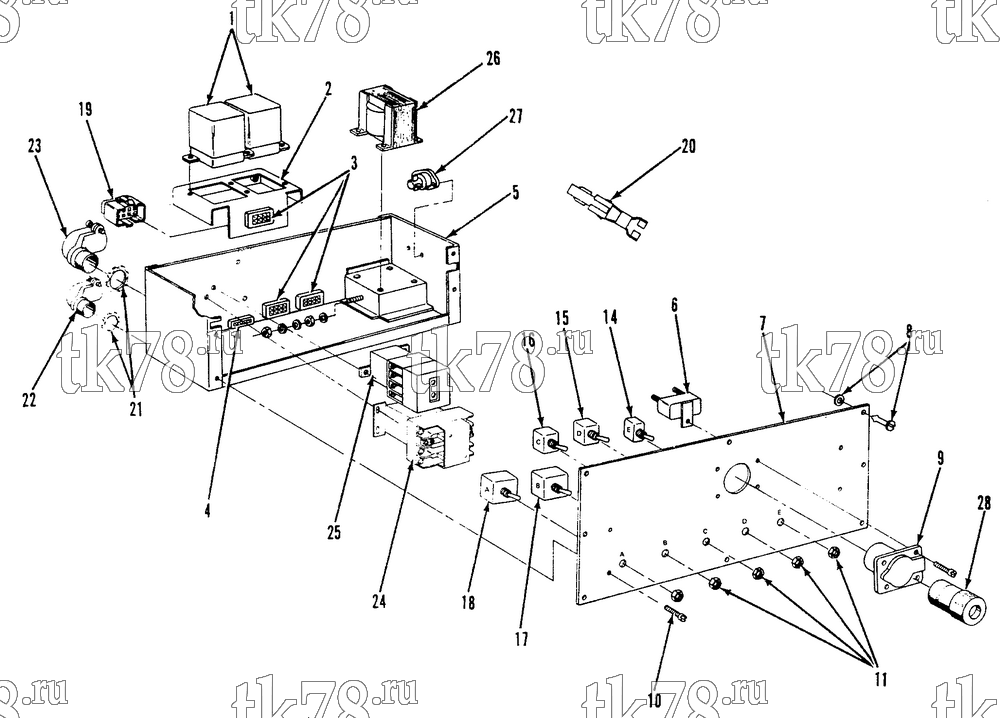

Установкa Thermo King XMT M1 схема CONTROL PANEL (XMT 50 208-230/3/60) – 42C7
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-816 | BOX - control | 1 | ||
| 1 | 44-3186 | RELAY | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-3184 | SOCKET | 2 | ||
| 99-2027 | SPRING | 2 | ||
| 55-2771 | CLAMP | 2 | ||
| 44-3515 | RESISTOR | 1 | ||
| 55-2270 | RIVET - blind (1/8 x 1/4, al) | 4 | ||
| 2 | 99-3297 | COVER - duct | 1 | |
| 55-759 | SCREW (hh mach, 10-32 x 3/8) | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 3 | 44-4797 | CONNECTOR | 3 | |
| 4 | 44-4795 | CONNECTOR | 1 | |
| 5 | 99-5296 | BOX - control | 1 | |
| 6 | 44-3531 | BREAKER - circuit | 1 | |
| 7 | 99-5298 | PANEL - switch | 1 | |
| 8 | 55-2826 | STUD | 8 | |
| 55-2657 | WASHER | 8 | ||
| 9 | 44-4656 | RECEPTACLE (20A, 250V) | 1 | |
| 55-2269 | SCREW (slotted rd hd) | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 10 | 55-3025 | SCREW (fil mach, 10-32 x 1/2) | 4 | |
| 55-2964 | LOCKWASHER | 4 | ||
| 11 | 44-739 | BOOT - switch | 5 | |
| 13 | 55-3506 | SCREW | 1 | |
| 55-1852 | LOCKWASHER (internal tooth) | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-346 | NUT (10-32, brass) | 3 | ||
| 14 | 44-1164 | SWITCH - defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 15 | 44-490 | SWITCH - start | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 16 | 44-177 | SWITCH - on/off | 1 | |
| 17 | 44-709 | SWITCH - gas/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 18 | 44-1164 | SWITCH - defrost | 1 | |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 19 | 44-4796 | CONNECTOR | 1 | |
| 20 | 44-4798 | TERMINAL | 19 | |
| 44-4986 | TERMINAL | 12 | ||
| 21 | 55-1630 | LOCKNUT - connector (1/2) | 1 | |
| 55-2242 | LOCKNUT | 1 | ||
| 22 | 55-9129 | CONNECTOR - cable grip | 1 | |
| 23 | 44-2386 | CONNECTOR - squeeze type | 1 | |
| 24 | 44-2853 | CONTACTOR | 1 | |
| 55-736 | SCREW (hh mach, 10-32 x 1/2) | 4 | ||
| 55-431 | FLATWASHER (#10) | 4 | ||
| 55-664 | NUT | 4 | ||
| 25 | 44-4203 | CONTACTOR | 1 | |
| 55-2366 | SCREW - contactor | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 55-1516 | NUT | 4 | ||
| 26 | 44-2230 | TRANSFORMER | 1 | |
| 44-3710 | JUMPER | 4 | ||
| 55-736 | SCREW - contactor | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-664 | NUT | 4 | ||
| 27 | 44-3280 | RECTIFIER | 1 | |
| 55-2366 | SCREW - rectifier | 2 | ||
| 55-1516 | NUT | 2 | ||
| 55-2658 | RECEPTACLE | 8 | ||
| 55-3272 | RIVET | 16 | ||
| 28 | 44-4694 | PLUG (30A, 250V) | 1 |
