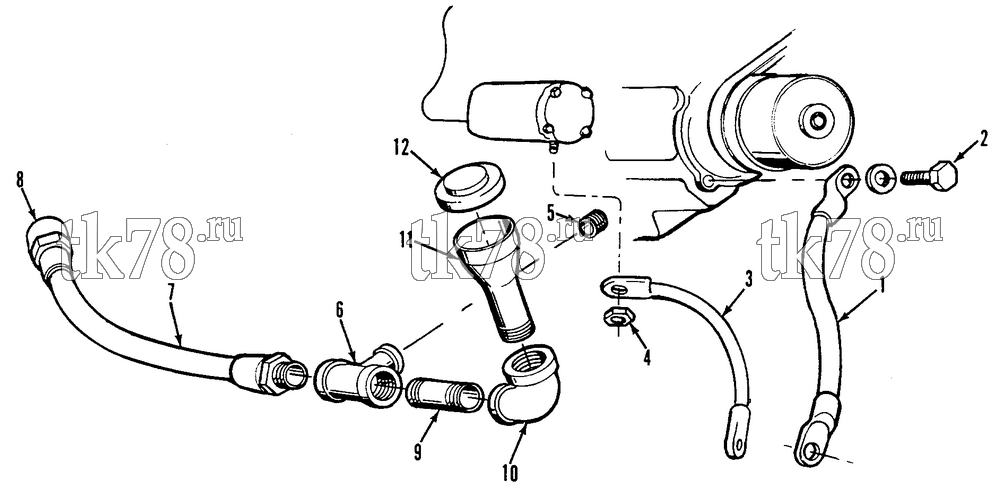

Установкa Thermo King XMT M1 схема OIL DRAIN HOSE GROUP (OH 160) – 33G9
Обновление от: 11/19/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-1431 | CABLE - ground | 1 | |
| 2 | 55-329 | SCREW (hh cp, 3/8-16 x 3/4) | 1 | |
| 55-3996 | LOCKWASHER (internal/external, 3/8) | 1 | ||
| 55-375 | LOCKWASHER (3/8) | 1 | ||
| 3 | 44-4693 | CABLE - battery | 1 | |
| 55-419 | LOCKWASHER (internal thread, 1/4) | 1 | ||
| 4 | 55-3935 | NUT | 1 | |
| 5 | 55-662 | NIPPLE - close (black) | 1 | |
| 6 | 55-3997 | TEE | 1 | |
| 7 | 11-1086 | HOSE - motor (res) | 1 | |
| 8 | 55-3229 | CAP - pipe | 1 | |
| 9 | 55-3339 | NIPPLE | 1 | |
| 10 | 55-4000 | ELBOW - reducing (black iron) | 1 | |
| 11 | 11-4424 | TUBE | 1 | |
| 11-1136 | NECK - filler | 1 | ||
| 12 | 99-207 | CAP - fuel tank | 1 |
