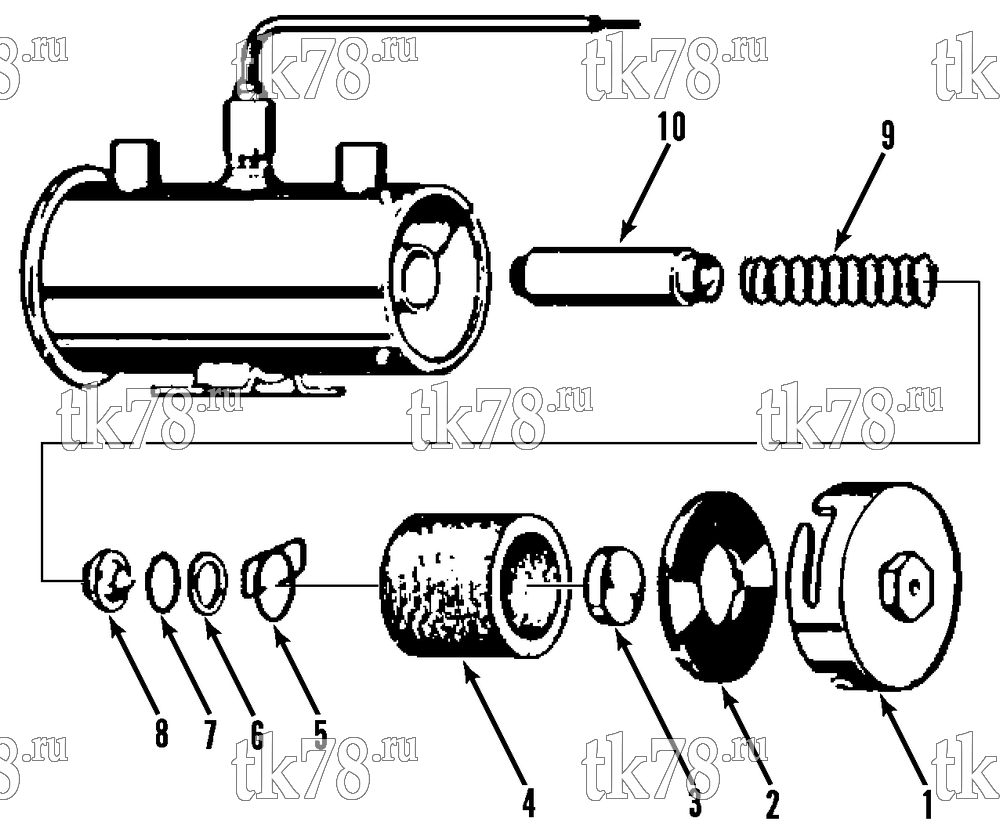

Установкa Thermo King XMT M1 схема ELECTRIC FUEL PUMP – 16F3
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 41-7060 | PUMP - fuel, electric (complete, 12V negative ground) | 1 | ||
| 41-7059 | PUMP - fuel, electric (complete, 12V positive ground) | 1 | ||
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 1 | NSS | COVER | 1 | |
| 2 | 33-598 | GASKET - cover | 1 | |
| 3 | 44-1768 | MAGNET | 1 | |
| 4 | 44-1766 | FILTER | 1 | |
| 5 | 44-1754 | RETAINER | 1 | |
| 6 | 44-1769 | WASHER | 1 | |
| 7 | 33-599 | O-RING | 1 | |
| 8 | NSS | CUP - valve | 1 | |
| 9 | NSS | SPRING - plunger | 1 | |
| 10 | 44-1546 | PLUNGER | 1 |
