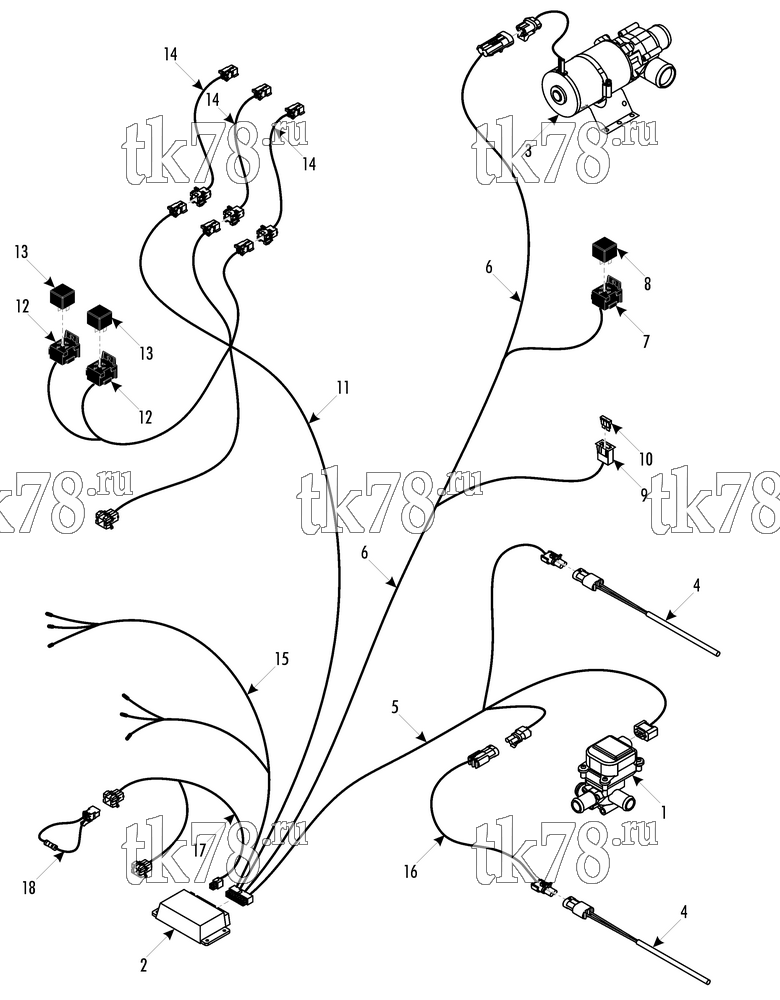

Установкa Thermo King X900 схема FLOOR HEATING ACCESSORIES – 237B0
Обновление от: 3/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6592 | VALVE - water, 2 way (optional) | 1 | |
| 41-5649 | VALVE - water, 3 way (optional) | 1 | ||
| 2 | 41-8142 | MODULE - I/O | 1 | |
| 3 | NSS | PUMP - boost, 24V (optional, see 186D1) | 1 | |
| NSS | PUMP - boost (optional, see 186D1) | 1 | ||
| 4 | 41-4157 | SENSOR - temperature | 2 | |
| 5 | 41-8793 | HARNESS - water valve, floor (2m, optional, for connectors see 237C1) | 1 | |
| 41-8797 | HARNESS - water valve, floor (5m, optional, for connectors see 237C1) | 1 | ||
| 6 | 41-8800 | HARNESS - boost pump (7m, for connectors see 237C1) | 1 | |
| 7 | 44-5537 | SOCKET - relay | 1 | |
| 8 | 41-5657 | RELAY | 1 | |
| 9 | 41-4965 | HOLDER - fuse | 1 | |
| 10 | 44-9344 | FUSE - 15 (amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 11 | 41-8794 | HARNESS - air blower (2m, optional, for connectors see 237C1) | 1 | |
| 41-8798 | HARNESS - air blower (5m, optional, for connectors see 237C1) | 1 | ||
| 12 | 44-5537 | SOCKET - relay | 2 | |
| 13 | 41-5657 | RELAY | 2 | |
| 14 | 41-8795 | HARNESS - blower, extension (10m, optional, for connectors see 237C1) | 3 | |
| 41-8796 | HARNESS - blower, extension (20m, optional, for connectors see 237C1) | 3 | ||
| 15 | 41-8801 | HARNESS - preheater (7m) | 1 | |
| 16 | 41-5228 | HARNESS - sensor (9m) | 1 | |
| 17 | 41-9824 | HARNESS - can interface | 1 | |
| 18 | 41-9798 | TERMINATOR - 120 ohms | 1 |
