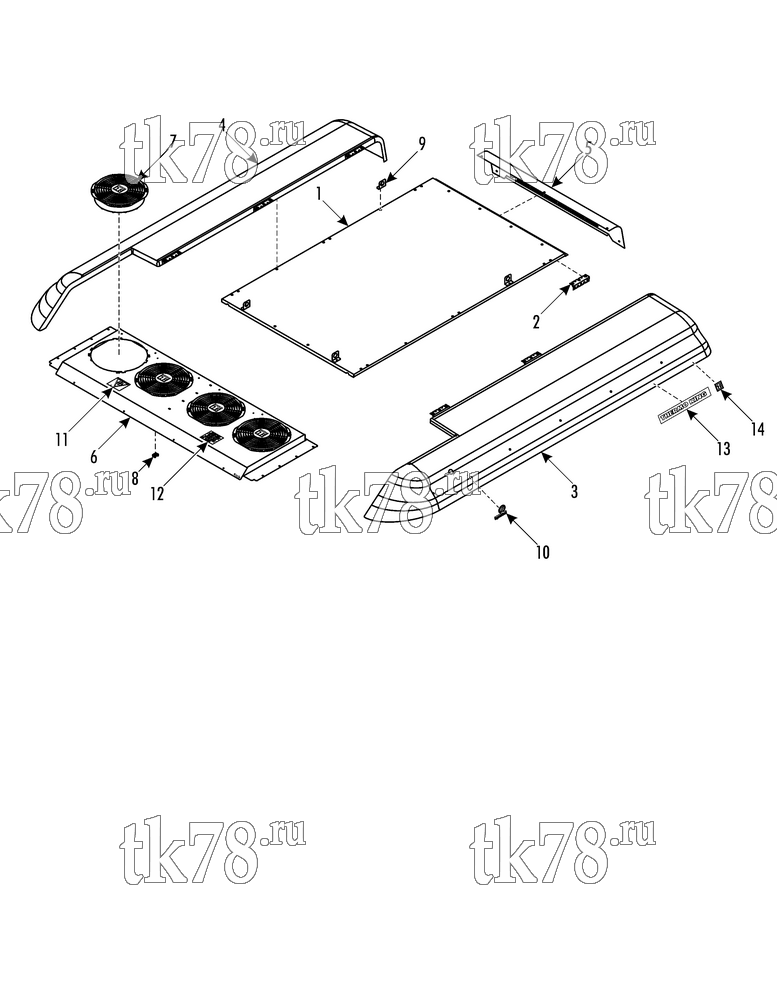

Установкa Thermo King X900 схема COVER – 237A4
Обновление от: 6/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9257 | COVER - evaporator, complete | 1 | |
| 55-7035 | SCREW - cover | 8 | ||
| 55-7036 | SCREW - cover | 4 | ||
| 55-6996 | LOCKWASHER | 12 | ||
| 51-167 | FLATWASHER | 4 | ||
| 51-871 | WASHER - sealing | 8 | ||
| 55-7373 | NUT - captive | 12 | ||
| 98-8706 | INSULATION - top cover | 1 | ||
| 2 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge to cover & frame | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 51-1610 | FLATWASHER | 12 | ||
| 55-8375 | NUT - captive | 12 | ||
| 3 | 98-9258 | COVER - side, complete | 1 | |
| 4 | 98-9259 | COVER - side, complete | 1 | |
| 92-9810 | NUT PLATE | 2 | ||
| 98-8317 | INSULATION - side cover | 2 | ||
| 51-1930 | SCREW - cover | 10 | ||
| 55-7036 | SCREW - cover to hinge | 18 | ||
| 55-7404 | LOCKWASHER | 18 | ||
| 5 | 98-8315 | COVER - rear | 1 | |
| 55-7172 | SCREW - cover | 5 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-7373 | NUT - captive | 5 | ||
| 6 | 98-9256 | COVER - condenser, complete | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 7 | 78-1414 | FAN | 4 | |
| 55-7372 | SCREW - fan & guard | 16 | ||
| 55-9190 | LOCKWASHER | 16 | ||
| 8 | 99-6093 | MOUNT - cable tie | 3 | |
| 56-2330 | BAND - wrap | A/R | ||
| 55-5130 | RIVET - cable tie | A/R | ||
| 55-7368 | FLATWASHER | A/R | ||
| 9 | 92-2430 | BRACKET - lift | 4 | |
| 10 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 11 | 99-8506 | NAMEPLATE - caution fan | 1 | |
| 12 | 99-8507 | NAMEPLATE - caution fan | 1 | |
| 13 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 14 | 91-6958 | NAMEPLATE - TK logo | 2 |
