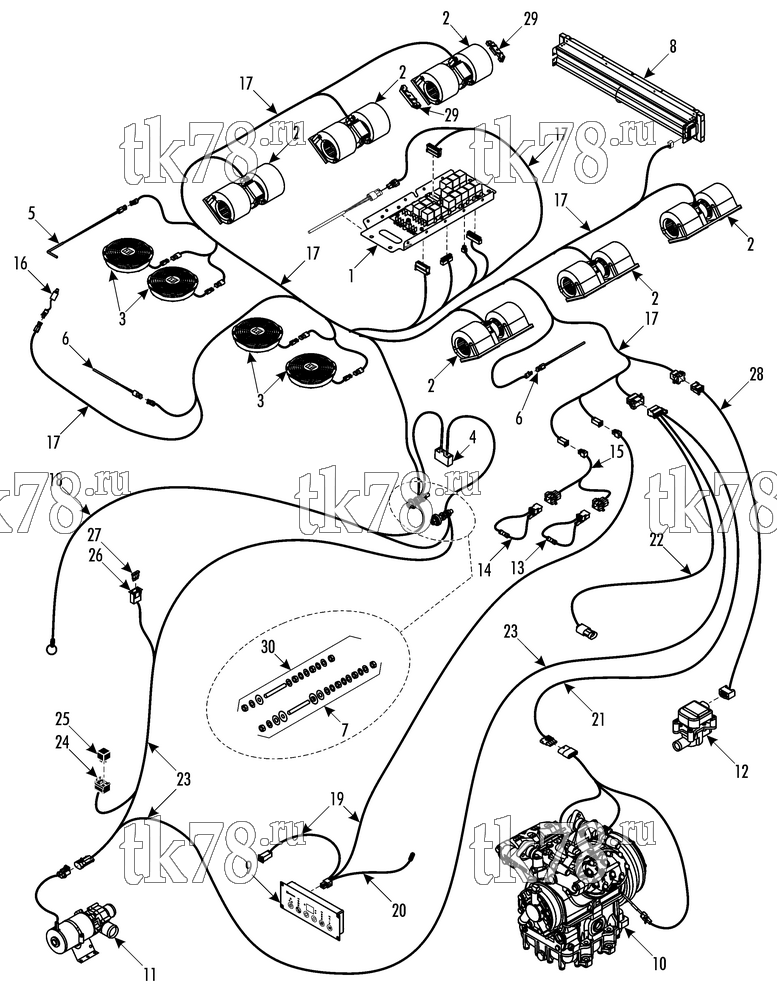

Установкa Thermo King X900 BOX схема ELECTRICAL COMPONENTS – 237B9
Обновление от: 6/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 237B8) | 1 | |
| 2 | 78-1297 | BLOWER - evaporator & heater | 6 | |
| 3 | 78-1414 | FAN - assembly | 4 | |
| 4 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7829 | SCREW - supressor | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 5 | 41-4335 | SENSOR - temperature | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 2 | |
| 7 | 55-9367 | STUD - terminal plus | 1 | |
| 55-8955 | FLATWASHER | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8631 | WASHER - insulating | 1 | ||
| 55-8693 | WASHER - insulating | 1 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | 41-3255 | SERVOMOTOR - fresh air damper (see 237A7, only for unit w/ damper) | 1 | |
| 9 | 41-8403 | ClimaAIRE I D | 1 | |
| 45-2342 | CANAIRE - (optional, see 265H6) | 1 | ||
| 10 | NSS | Kit - compressor X430 (optional, see 165G6) | 1 | |
| NSS | Kit - compressor X430 (optional, see 232F4) | 1 | ||
| NSS | Kit - compressor X430 (optional, see 203E2) | 1 | ||
| NSS | Kit - compressor X430 (optional, see 237B6) | 1 | ||
| NSS | Kit - compressor S616 (optional, see 215A9) | 1 | ||
| NSS | Kit - compressor S616 (optional, see 224C9) | 1 | ||
| NSS | Kit - compressor S391-HPC (optional, see 211A9) | 1 | ||
| NSS | Kit - compressor FKX40 (optional, see 252A2) | 1 | ||
| NSS | Kit - compressor FKX40 (optional, see 203E5) | 1 | ||
| NSS | Kit - compressor FKX40 (optional, see 184H5) | 1 | ||
| 11 | NSS | PUMP - boost 24V (optional, see 186D1, only for unit w/ heater) | 1 | |
| NSS | PUMP - boost (optional, see 186D1, only for unit w/ heater) | 1 | ||
| 12 | 41-6592 | VALVE - water, 2-way (optional) | 1 | |
| 41-5649 | VALVE - water, 3-way (optional) | 1 | ||
| 13 | 41-8787 | TERMINATOR - can | 1 | |
| 14 | 41-9798 | TERMINATOR - can (optional) | 1 | |
| 15 | 42-1179 | HARNESS - CAN terminator (optional, 15m) | 1 | |
| 16 | 41-5220 | SWITCH - cps | 1 | |
| 17 | 41-8944 | HARNESS - control (for connectors see 115D14 & 237C1) | 1 | |
| 42-1180 | HARNESS - control (optional, for connectors see 115D14 & 237C1) | 1 | ||
| 41-9042 | HARNESS - control (optional, for connectors see 115D14 & 237C1) | 1 | ||
| 18 | 41-8945 | HARNESS - power supply | 1 | |
| 19 | 41-8791 | HARNESS - unit x ClimaAIRE (9m, optional, for connectors see 237C1) | 1 | |
| 41-8792 | HARNESS - unit x ClimaAIRE (18m, optional, for connectors see 237C1) | 1 | ||
| 41-9624 | HARNESS - unit x CanAIRE (5m, optional, for connectors see 237C1) | 1 | ||
| 42-1069 | HARNESS - unit x CanAIRE (9m, optional, for connectors see 237C1) | 1 | ||
| 41-8636 | HARNESS - unit x CanAIRE (14m, optional, for connectors see 237C1) | 1 | ||
| 42-1068 | HARNESS - unit x CanAIRE (18m, optional, for connectors see 237C1) | 1 | ||
| 20 | 41-8782 | HARNESS - power supply DP ClimaAIRE | 1 | |
| 42-1071 | HARNESS - power supply DP CanAIRE | 1 | ||
| 21 | 41-8783 | HARNESS - unit x compressor (8m, optional, for connectors see 115D14 & 237C1) | 1 | |
| 41-8784 | HARNESS - unit x compressor (14m, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 41-8790 | HARNESS - unit x compressor (20m, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 42-267 | HARNESS - unit x compressor (8m, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 42-268 | HARNESS - unit x compressor (14m, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 42-269 | HARNESS - unit x compressor (20m, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 22 | 41-8788 | HARNESS - excitation (14m, optional, for connectors see 115D14) | 1 | |
| 41-8799 | HARNESS - excitation (20m, optional, for connectors see 115D14) | 1 | ||
| 23 | 41-8789 | HARNESS - unit x boost pump (14m, for connectors see 237C1) | 1 | |
| 24 | 44-5537 | SOCKET - relay | 1 | |
| 25 | 41-5657 | RELAY | 1 | |
| 26 | 41-4965 | HOLDER - fuse | 1 | |
| 27 | 44-9344 | FUSE - 15A | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 28 | 41-5085 | HARNESS - unit x water valve (1m, optional, for connectors see 237C1) | 1 | |
| 41-5084 | HARNESS - unit x water valve (5m, optional, for connectors see 237C1) | 1 | ||
| 41-7347 | HARNESS - unit x water valve (6m, optional, for connectors see 237C1) | 1 | ||
| 41-8785 | HARNESS - unit x water valve (10m, optional, for connectors see 237C1) | 1 | ||
| 41-8786 | HARNESS - unit x water valve (20m, optional, for connectors see 237C1) | 1 | ||
| 29 | 51-259 | HOLDER - blower | 12 | |
| 30 | 55-9191 | STUD - terminal minus | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 |
