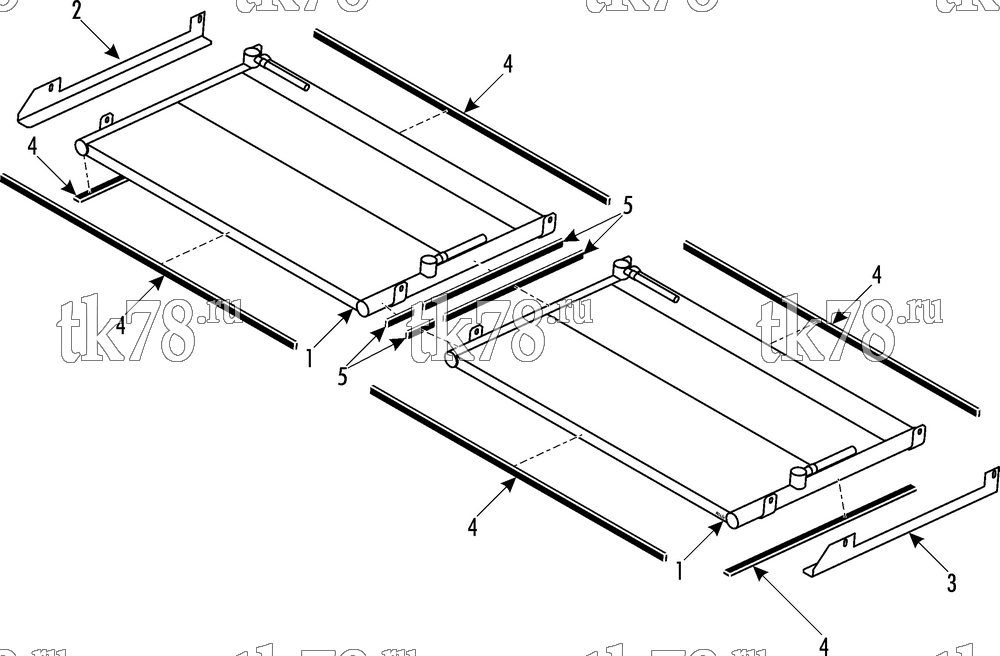

Установкa Thermo King X900 BOX 1012 схема CONDENSER (before 10/2012) – 237A0
Обновление от: 6/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2450 | COIL - condenser aluminum | 2 | |
| 55-6994 | SCREW - condenser | 6 | ||
| 51-167 | FLATWASHER | 20 | ||
| 55-7042 | NUT | 6 | ||
| 2 | 98-8333 | PLATE - seal | 1 | |
| 3 | 98-8334 | PLATE - seal | 1 | |
| 4 | 99-2495 | STRIP - neoprene | A/R | |
| 5 | 33-3540 | STRIP - neoprene | A/R |
