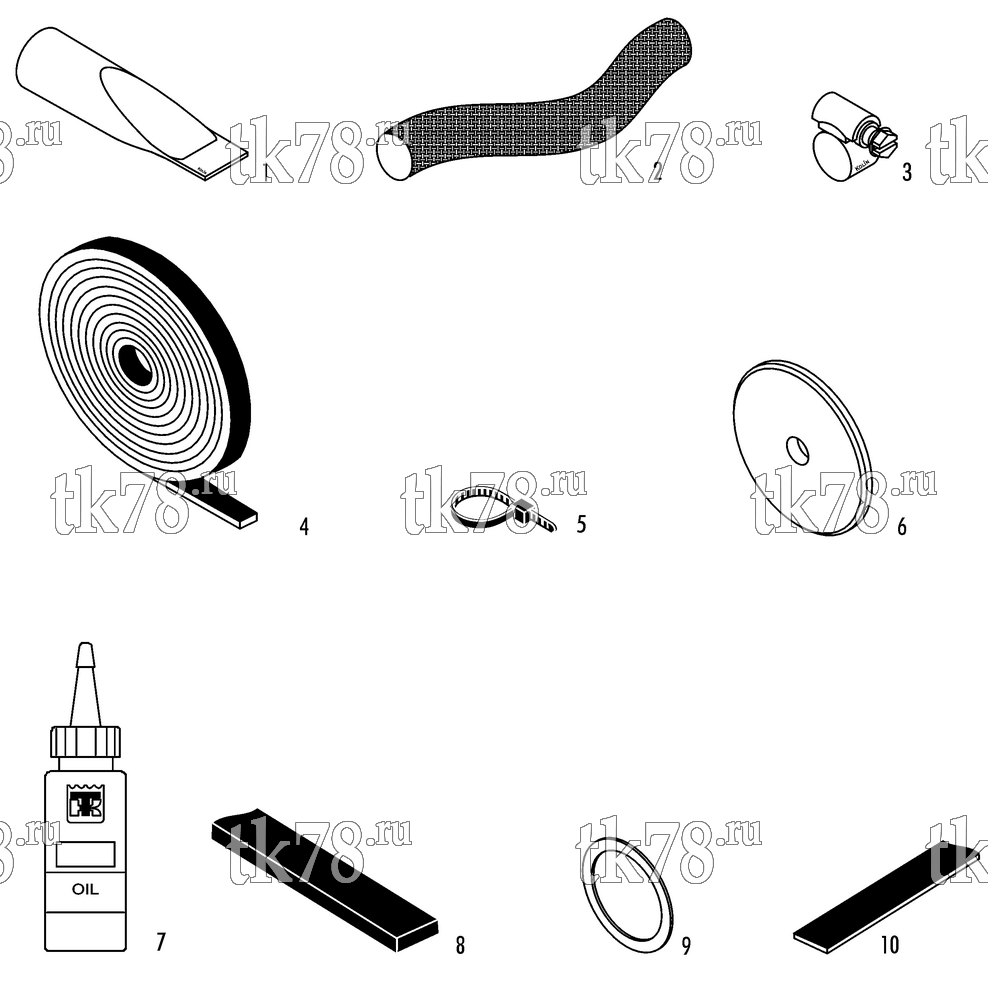

Установкa Thermo King X900 AdvanTech схема INSTALLATION COMPONENTS – 254G3
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check (hose) | A/R | |
| 2 | 91-9006 | HOSE (#16) | A/R | |
| 3 | 55-6726 | CLAMP - hose | A/R | |
| 4 | 203-391 | SEALER - tape | A/R | |
| 5 | 55-2330 | BANDWRAP (1.75 dia) | A/R | |
| 6 | 55-8542 | WASHER - special | A/R | |
| 7 | 203-773 | BOTTLE - suction line | A/R | |
| 8 | 33-3531 | STRIP - neoprene | A/R | |
| 9 | 33-3191 | GASKET - flange | A/R | |
| 10 | 92-9495 | INSULATION | 2 |
