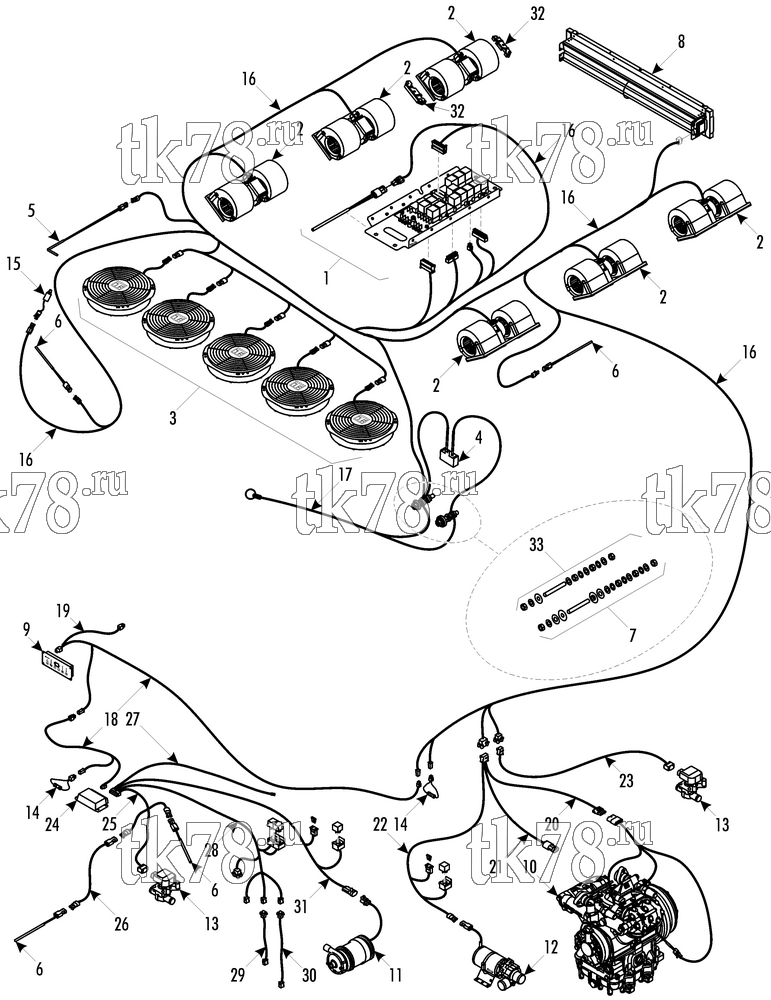

Установкa Thermo King X900 AdvanTech схема ELECTRICAL COMPONENTS – 254G2
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 237B8) | 1 | |
| 2 | 78-1297 | BLOWER - evaporator & heater | 6 | |
| 3 | 78-1414 | FAN - assembly | 5 | |
| 78-1414 | FAN - axial 24 VDC | 1 | ||
| 78-1416 | FAN - guard | 1 | ||
| 4 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7829 | SCREW - suppressor | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 5 | 41-4335 | SENSOR - temperature | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 4 | |
| 7 | 55-9367 | STUD - terminal plus | 1 | |
| 55-8955 | FLATWASHER | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8631 | WASHER - insulating | 1 | ||
| 55-8693 | WASHER - insulating | 1 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | NSS | FRESH AIR DAMPER & DEFLECTOR - only for units w/ fresh air (see 237A7) | 1 | |
| 9 | 41-8403 | ClimaAIRE I D | 1 | |
| 10 | NSS | KIT - compressor X430-HPC (optional, see 233C3) | 1 | |
| NSS | KIT - compressor S391-HPC (optional, see 211A9) | 1 | ||
| 11 | NSS | PUMP - boost 24V (optional, see 186D1, only for unit w/ heater) | 1 | |
| 12 | NSS | PUMP - boost (optional, see 186D1, only for unit w/ heater) | 1 | |
| 13 | 41-6592 | SERVOMOTOR - water valve, 2 way (optional) | 1 | |
| 41-5649 | SERVOMOTOR - water valve, 3 way (optional) | 1 | ||
| 14 | 41-8787 | TERMINATOR - 120 ohms | 2 | |
| 15 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 16 | 42-362 | HARNESS - control (for connectors see 115D14 & 237C1) | 1 | |
| 17 | 41-8945 | HARNESS - power supply | 1 | |
| 18 | 41-8791 | HARNESS - ClimaAIRE (9M, optional, for connectors see 237C1) | 2 | |
| 41-8792 | HARNESS - ClimaAIRE (18M, optional, for connectors see 237C1) | 2 | ||
| 19 | 41-8782 | HARNESS - power | 1 | |
| 20 | 41-8783 | HARNESS - compressor (8M, optional, for connectors see 115D14 & 237C1) | 1 | |
| 41-8784 | HARNESS - compressor (14M, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 41-8790 | HARNESS - compressor (20M, optional, for connectors see 115D14 & 237C1) | 1 | ||
| 21 | 41-8788 | HARNESS - excitation (14M, optional, for connectors see 115D14) | 1 | |
| 41-8799 | HARNESS - excitation (20M, optional, for connectors see 115D14) | 1 | ||
| 22 | 41-8789 | HARNESS - boost pump (14M, optional, for connectors see 237C1) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 41-4965 | HOLDER - fuse | 1 | ||
| 44-9344 | FUSE - 15A | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 23 | 41-5085 | HARNESS - water valve (1M, optional, for connectors see 237C1) | 1 | |
| 41-5084 | HARNESS - water valve (5M, optional, for connectors see 237C1) | 1 | ||
| 41-7347 | HARNESS - water valve (6M, optional, for connectors see 237C1) | 1 | ||
| 41-8785 | HARNESS - water valve (10M, optional, for connectors see 237C1) | 1 | ||
| 41-8786 | HARNESS - water valve (20M, optional, for connectors see 237C1) | 1 | ||
| 24 | 41-8142 | MODULE - floor, CAN | 1 | |
| 55-2359 | FLATWASHER | 4 | ||
| 25 | 41-8793 | HARNESS - floor water valve (2M, for connectors see 252E9) | 1 | |
| 41-8797 | HARNESS - floor water valve (5M, for connectors see 252E9) | 1 | ||
| 26 | 41-5228 | HARNESS - extension temperature sensor (9M, for connectors see 252E9) | 1 | |
| 27 | 41-8801 | HARNESS - floor module pre-heater (7M) | 1 | |
| 28 | 41-8794 | HARNESS - forced air blower (2M, for connectors see 252E9) | 1 | |
| 41-8798 | HARNESS - forced air blower (5M, for connectors see 252E9) | 1 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 41-5657 | RELAY | 2 | ||
| 29 | 41-8795 | HARNESS - extension forced air blower (10M, for connectors see 252E9) | 1 | |
| 30 | 41-8796 | HARNESS - extension forced air blower (20M, for connectors see 252E9) | 1 | |
| 31 | 41-8800 | HARNESS - floor module x boost pump (7M, for connectors see 252E9) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 41-4965 | HOLDER - fuse | 1 | ||
| 44-9344 | FUSE | 1 | ||
|
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 32 | 51-259 | HOLDER - blower | 12 | |
| 33 | 55-9191 | STUD - terminal minus | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 |
