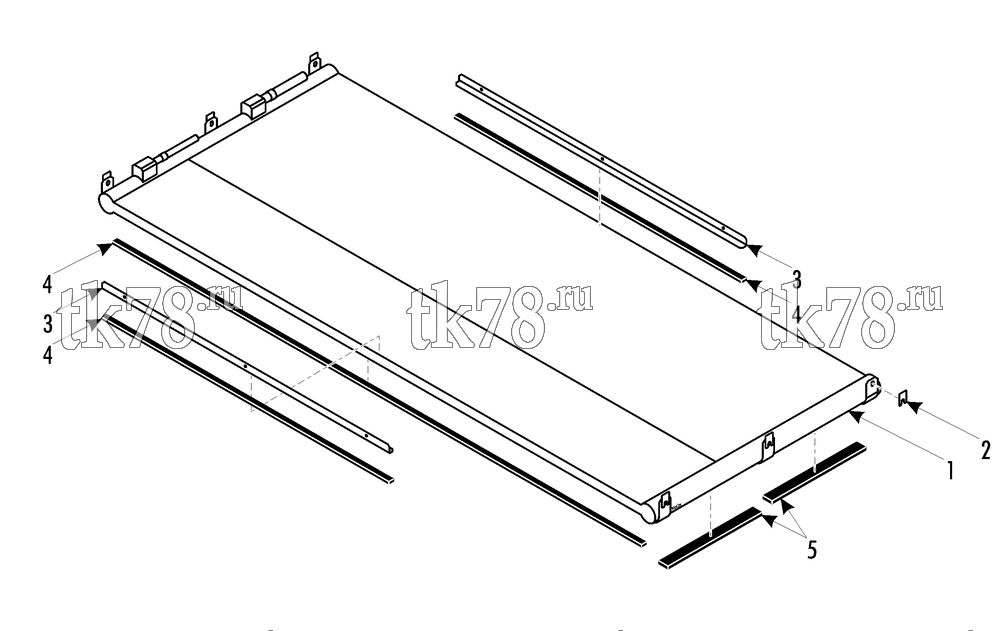

Установкa Thermo King X900 AdvanTech схема CONDENSER – 254F9
Обновление от: 12/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2450 | CONDENSER - aluminum | 1 | |
| 55-6994 | SCREW - condenser | 6 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 55-7042 | NUT | 5 | ||
| 2 | 92-9047 | SPACER | 6 | |
| 3 | 92-9497 | PLATE | 2 | |
| 55-5130 | RIVET - plate | 6 | ||
| 4 | 99-6968 | STRIP - neoprene | A/R | |
| 5 | 99-5966 | STRIP - neoprene | A/R |
