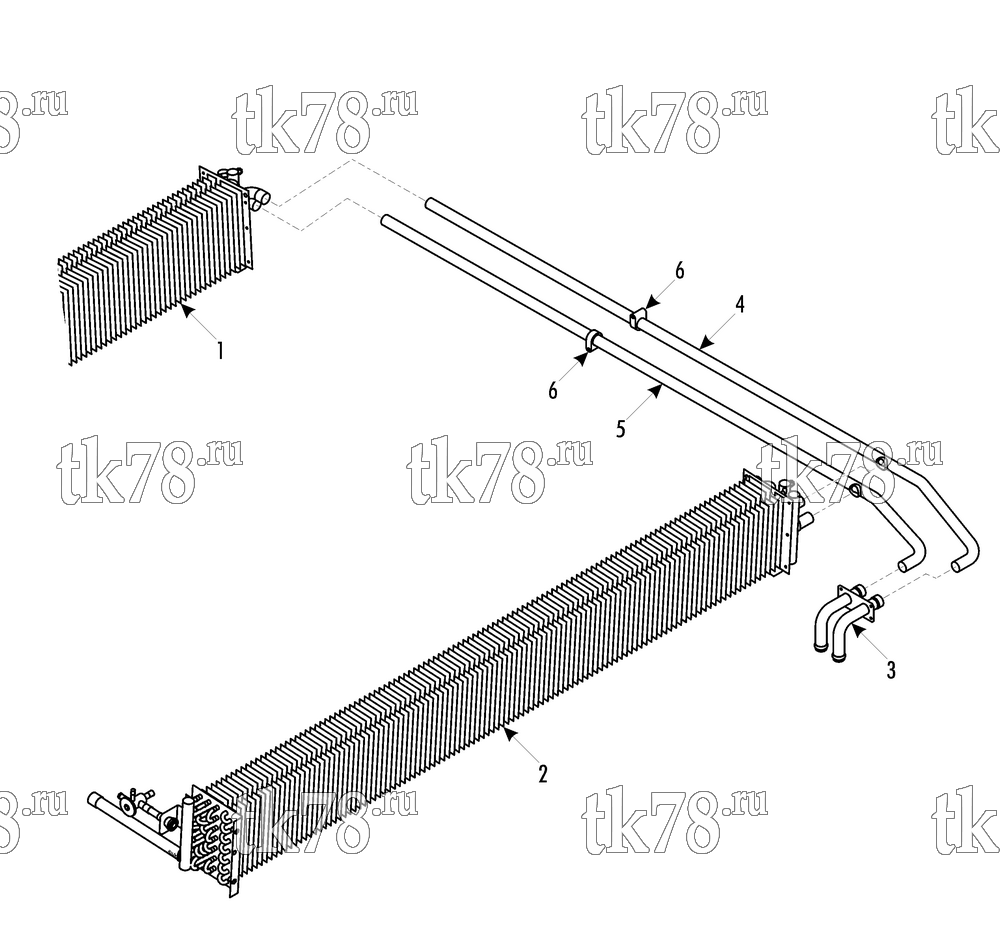

Установкa Thermo King X900 AdvanTech схема TUBE HEATING – 254F8
Обновление от: 12/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COIL - evaporator/heater roadside (see 254G1) | 1 | |
| 2 | NSS | COIL - evaporator/heater curbside (see 254G1) | 1 | |
| 3 | 61-4840 | CONNECTION - heating | 1 | |
| 55-5130 | RIVET - connection | A/R | ||
| 4 | 61-4841 | TUBE - heating #1 | 1 | |
| 5 | 61-4842 | TUBE - heating #2 | 1 | |
| 6 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 |
