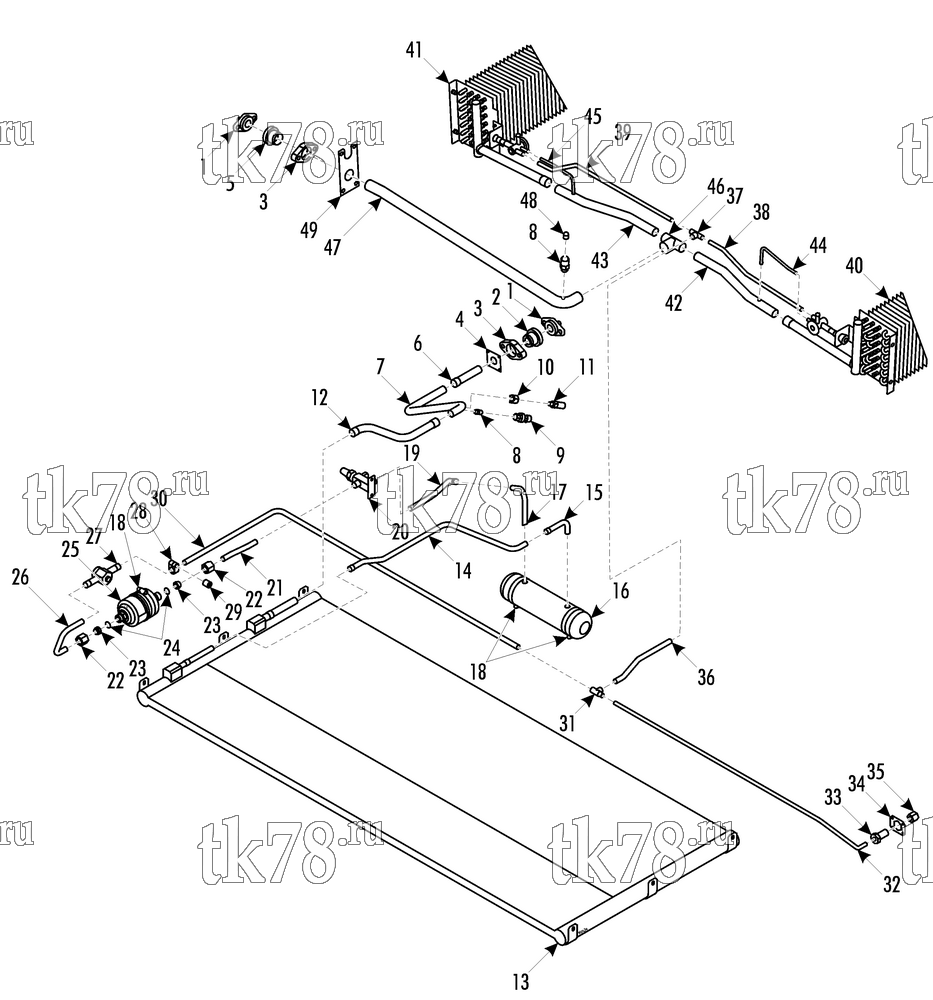

Установкa Thermo King X900 AdvanTech схема TUBE COOLING – 254F7
Обновление от: 12/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9143 | FLANGE - assembly | 2 | |
| 55-5427 | SCREW - flange | 4 | ||
| 2 | 61-4822 | ADAPTER - inlet | 1 | |
| 3 | 55-9186 | FLANGE | 2 | |
| 4 | 92-9498 | PLATE - tube | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 5 | 51-374 | ADAPTER - outlet | 1 | |
| 6 | 61-5838 | TUBE - outlet | 1 | |
| 7 | 61-5839 | TUBE - valve | 1 | |
| 8 | 61-2059 | VALVE | 2 | |
| 9 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 10 | 66-2805 | FITTING - saddle | 1 | |
| 11 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 12 | 61-5840 | TUBE - to condenser | 1 | |
| 13 | NSS | CONDENSER - aluminum (see 254F9) | 1 | |
| 14 | 61-5841 | TUBE - to condenser | 1 | |
| 15 | 61-5845 | TUBE - tank | 1 | |
| 16 | 67-2704 | TANK - receiver | 1 | |
| 17 | 61-5864 | TUBE - tank | 1 | |
| 18 | 55-2688 | CLAMP - tank | 3 | |
| 19 | 61-5865 | TUBE - from tank to valve | 1 | |
| 20 | 66-4694 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 21 | 61-5866 | TUBE - to filter drier | 1 | |
| 22 | 55-6838 | NUT - shoulder | 2 | |
| 23 | 55-6837 | SHOULDER | 2 | |
| 24 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 25 | 66-8344 | FILTER - drier | 1 | |
| 26 | 61-5867 | TUBE - to indicator | 1 | |
| 27 | 66-1188 | INDICATOR - liquid (sight glass) | 1 | |
| 28 | 91-758 | CLAMP - tube | 1 | |
| 29 | 92-8954 | SPACER | 1 | |
| 55-7739 | SCREW - clamp | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 30 | 61-5868 | TUBE - from indicator | 1 | |
| 31 | 66-622 | TEE (1/2 x 3/8 x 1/2) | 1 | |
| 32 | 61-5869 | TUBE - adapter | 1 | |
| 33 | 66-6036 | ADAPTER - bulkhead | 1 | |
| 34 | 92-9499 | PLATE - adapter | 1 | |
| 55-5130 | RIVET - adapter | 4 | ||
| 35 | 61-3586 | CAP - adapter | 1 | |
| 36 | 61-5844 | TUBE - to evaporator | 1 | |
| 37 | 55-6222 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 38 | 61-5573 | TUBE - to expansion valve #1 | 1 | |
| 39 | 61-5574 | TUBE - to expansion valve #2 | 1 | |
| 40 | NSS | COIL - evaporator, curbside (see 254F0) | ||
| NSS | COIL - evaporator/heater, curbside (see 254G1) | 1 | ||
| 41 | NSS | COIL - evaporator, roadside (see 254F0) | ||
| NSS | COIL - evaporator/heater, roadside (see 254G1) | 1 | ||
| 42 | 61-4838 | TUBE - to compressor #1 | 1 | |
| 43 | 61-4837 | TUBE - to compressor #2 | 1 | |
| 44 | 61-5575 | TUBE - equalizer #1 | 1 | |
| 45 | 61-5576 | TUBE - equalizer #2 | 1 | |
| 46 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 47 | 61-4839 | TUBE - compressor suction | 1 | |
| 48 | 55-5672 | CAP - valve | 1 | |
| 49 | 92-7841 | PLATE - tube | 1 | |
| 55-7172 | SCREW - plate | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 37 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 38 | 99-9084 | NAMEPLATE - Arrow | 1 | |
| 39 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 91-7846 | NAMEPLATE - R407C | 1 |
