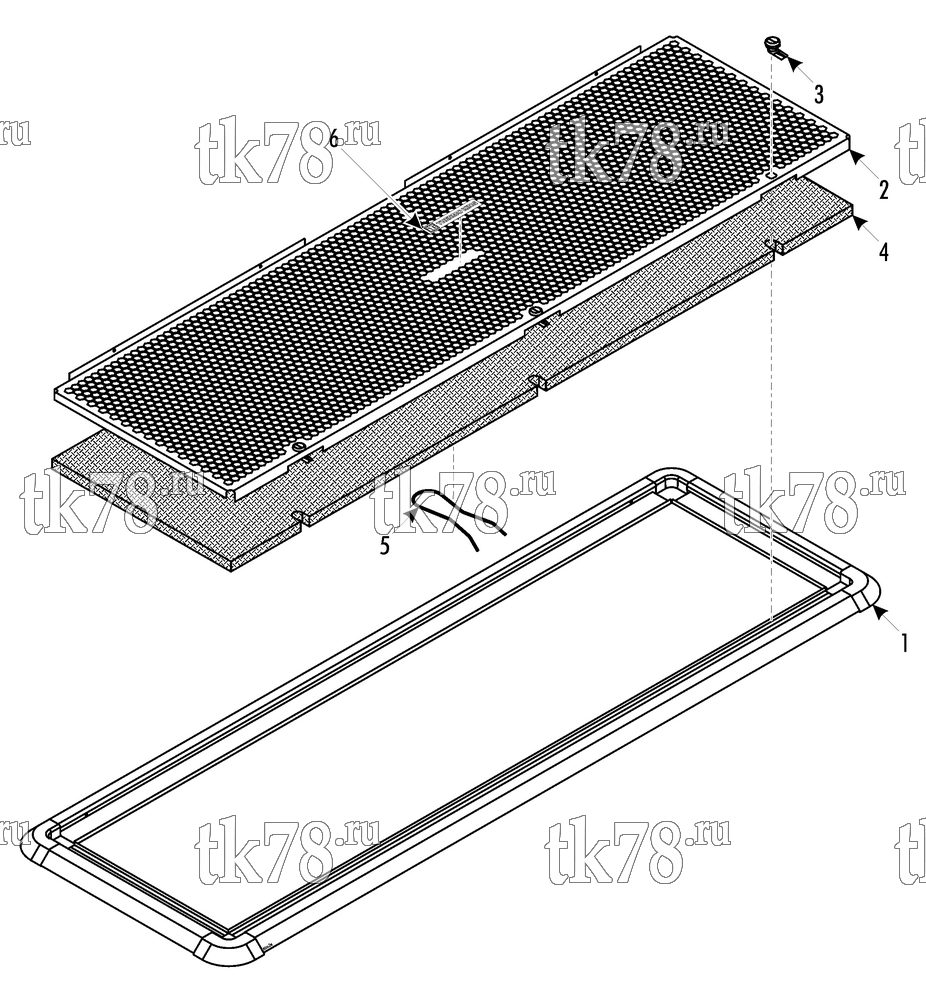

Установкa Thermo King X900 AdvanTech схема RETURN AIR KIT (702353, 702354) – 252A0
Обновление от: 3/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8707 | FRAME (central return air) | 1 | |
| 98-8708 | FRAME (side return air) | 1 | ||
| 57-5812 | SCREW - return air grille | A/R | ||
| 2 | 98-8709 | PANEL - filter (central return air) | 1 | |
| 98-8710 | PANEL - filter (side return air) | 1 | ||
| 55-5047 | RIVET - panel | 4 | ||
| 3 | 92-8875 | LATCH | 3 | |
| 4 | 92-8955 | FILTER (central return air) | 1 | |
| 92-8956 | FILTER (side return air) | 1 | ||
| 5 | 91-9343 | CLIP - filter | 1 | |
| 6 | 91-9638 | NAMEPLATE - Thermo King | 1 |
