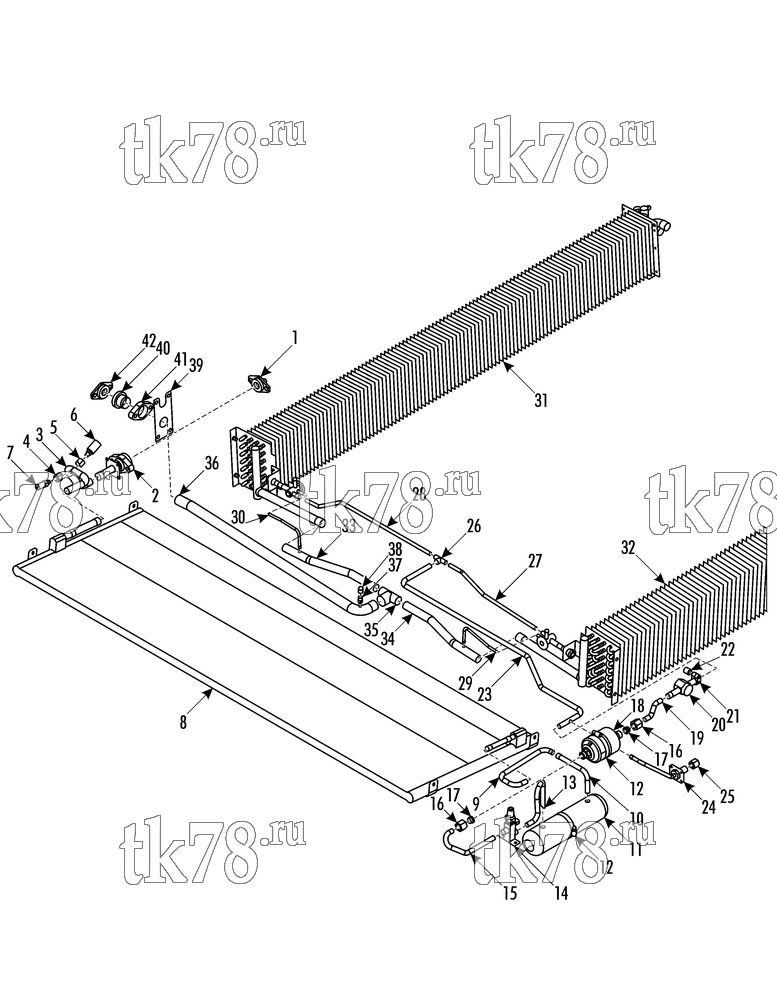

Установкa Thermo King X900 1012 схема TUBE COOLING (10/2012 and after) – 266B8
Обновление от: 6/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9143 | FLANGE - assembly | 1 | |
| 11-2886 | VALVE - assembly | 1 | ||
| 55-7213 | BODY - valve | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 2 | NSS | TUBE - discharge, assembly | 1 | |
| 61-5838 | TUBE - valve | 1 | ||
| 55-9186 | FLANGE | 1 | ||
| 92-9498 | PLATE - brass | 1 | ||
| 51-577 | ADAPTER - solder | 1 | ||
| 55-5427 | SCREW - tube assy | 2 | ||
| 55-5130 | RIVET - tube assy | 4 | ||
| 3 | 61-6522 | TUBE - to condenser | 1 | |
| 4 | 66-2805 | FITTING - saddle | 1 | |
| 5 | 66-6996 | FITTING - saddle | 1 | |
| 6 | 41-5220 | SWITCH - condenser pressure | 1 | |
| 7 | 66-7392 | VALVE - relief, complete | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 8 | 67-1877 | COIL - condenser aluminum (see 266B7) | 1 | |
| 9 | 61-6523 | TUBE - to receiver | 1 | |
| 10 | 61-6524 | TUBE - to receiver | 1 | |
| 11 | 67-2842 | TANK - receiver | 1 | |
| 12 | 55-2688 | CLAMP - tank | 2 | |
| 13 | 61-5577 | TUBE - from tank to valve | 1 | |
| 14 | 66-4694 | VALVE - shut-off | 1 | |
| 51-1473 | STUD - self-clinching (M5) | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 15 | 61-5569 | TUBE - to filter drier | 1 | |
| 16 | 55-6838 | NUT - shoulder | 2 | |
| 17 | 55-6837 | SHOULDER | 2 | |
| 18 | 66-8344 | FILTER - drier (dehydrator) | 1 | |
| 19 | 61-5570 | TUBE - to indicator | 1 | |
| 20 | 66-1188 | INDICATOR - liquid (sight glass) | 1 | |
| 21 | 91-758 | CLAMP - indicator | 1 | |
| 22 | 92-8954 | SPACER | 1 | |
| 55-7739 | SCREW | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 23 | 61-6525 | TUBE - to evaporator | 1 | |
| 24 | 61-5572 | TUBE - FB | 1 | |
| 55-5130 | RIVET - tube assy | 4 | ||
| 25 | 61-3586 | CAP - valve | 1 | |
| 26 | 55-6222 | TEE (3/8C x 3/8C x 1/2C) | 1 | |
| 27 | 61-5573 | TUBE - to expansion valve | 1 | |
| 28 | 61-5574 | TUBE - to expansion valve | 1 | |
| 29 | 61-5575 | TUBE - equalizer | 1 | |
| 30 | 61-5576 | TUBE - equalizer | 1 | |
| 31 | NSS | COIL - evaporator, roadside (see 237B1) | 1 | |
| NSS | COIL - evaporator/heater, roadside (see 237B2) | 1 | ||
| 32 | NSS | COIL - evaporator, curbside (see 237B1) | 1 | |
| NSS | COIL - evaporator/heater, curbside (see 237B2) | 1 | ||
| 33 | 61-4837 | TUBE - to compressor | 1 | |
| 34 | 61-4838 | TUBE - to compressor | 1 | |
| 35 | 55-6508 | TEE (7/8C x 7/8C x1-1/8C) | 1 | |
| 36 | 61-4839 | TUBE - suction | 1 | |
| 37 | 61-2059 | VALVE | 1 | |
| 38 | 55-5672 | CAP - valve | 1 | |
| 39 | 92-7841 | PLATE - tube | 1 | |
| 55-7172 | SCREW - plate | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 40 | 51-374 | ADAPTER (1 1/8")" | 1 | |
| 41 | 55-9186 | FLANGE | 1 | |
| 55-5427 | SCREW - flange | 2 | ||
| 42 | 51-1911 | FLANGE - assembly | 1 |
