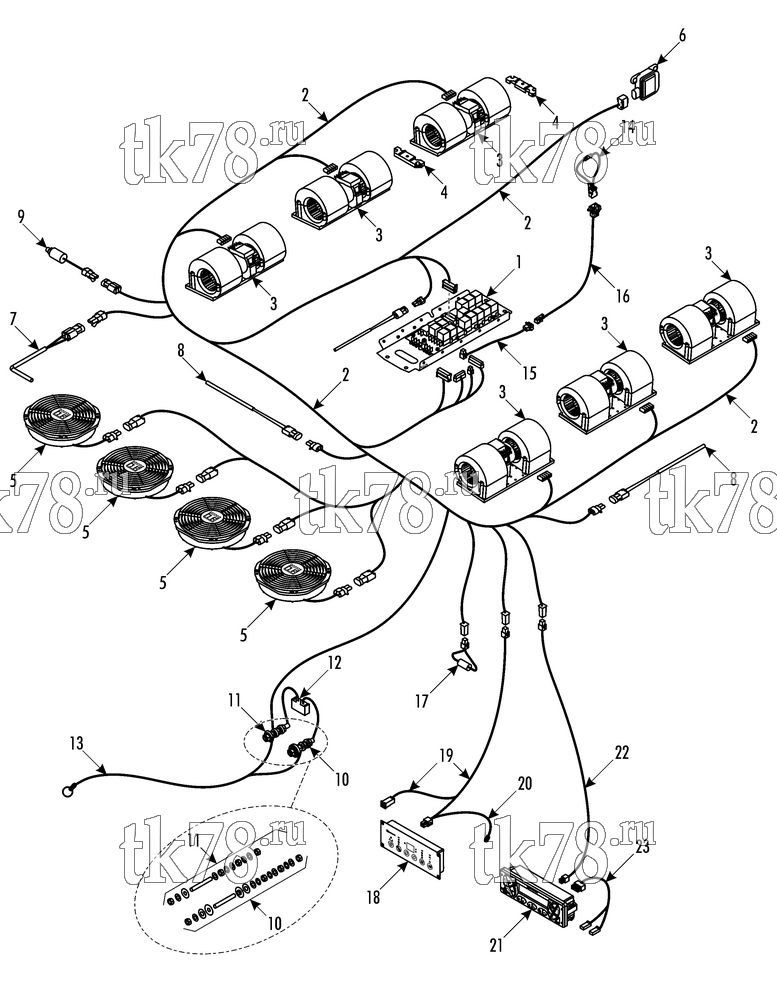

Установкa Thermo King X900 1012 схема ELECTRICAL COMPONENTS – 254H9
Обновление от: 7/30/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 237B8) | 1 | |
| 41-4157 | SENSOR - temperature | 1 | ||
| 2 | 41-8944 | HARNESS - main, control | 1 | |
| 41-0656 | CONNECTOR - in-line (24 pin, male) | 1 | ||
| 41-0654 | CONNECTOR - in-line (4 pin, male) | 1 | ||
| 41-0650 | CONNECTOR - in-line (18 pin, male) | 1 | ||
| 41-8221 | CONNECTOR - in-line (4 pin, female) | 2 | ||
| 41-3856 | CONNECTOR - female (18 pin) | 2 | ||
| 41-3288 | CONNECTOR - female (6 pin) | 1 | ||
| 44-5838 | CONNECTOR - tower (black, 2 pin) | 5 | ||
| 44-5835 | CONNECTOR - shroud (black, 2 pin) | 5 | ||
| 3 | 78-1297 | BLOWER - evaporator & heater | 6 | |
| 4 | 51-0259 | HOLDER - blower | 12 | |
| 5 | 78-1414 | FAN - assembly | 4 | |
| 78-1416 | FAN - guard | 1 | ||
| 6 | 41-3255 | SERVOMOTOR - fresh air damper (see 237A7, only for unit w/ damper) | 1 | |
| 7 | 41-4335 | SENSOR - temperature | 1 | |
| 8 | 41-4157 | SENSOR - temperature | 2 | |
| 9 | 41-5220 | SWITCH - cps | 1 | |
| 10 | NSS | TERMINAL - plus | 1 | |
| 55-9367 | STUD | 1 | ||
| 55-8631 | WASHER (nylon, w/shoulder) | 1 | ||
| 55-0448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 11 | NSS | TERMINAL - minus | 1 | |
| 55-9191 | STUD | 1 | ||
| 55-0448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 12 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7829 | SCREW - supressor | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 13 | 41-8945 | HARNESS - unit power supply | 1 | |
| 14 | 41-9798 | TERMINATOR - CAN | 1 | |
| 41-2769 | CONNECTOR - female (4 pin) | 1 | ||
| 15 | 41-9824 | HARNESS - CAN interface | 1 | |
| 41-0654 | CONNECTOR - in-line (4 pin, male) | 1 | ||
| 41-4949 | CONNECTOR - male (4 pin) | 2 | ||
| 16 | 42-1179 | HARNESS - CAN terminator extension (15m) | 1 | |
| 41-2769 | CONNECTOR - female (4 pin) | 1 | ||
| 41-4949 | CONNECTOR - male (4 pin) | 2 | ||
| 17 | 41-8787 | TERMINATOR - CAN | 1 | |
| 41-2769 | CONNECTOR - female (4 pin) | 1 | ||
| 18 | 41-8403 | ClimaAIRE I D - driver panel (optional) | 1 | |
| 19 | 41-8791 | HARNESS - unit x ClimaAIRE (9m, optional) | 1 | |
| 41-8792 | HARNESS - unit x ClimaAIRE (18m, optional) | 1 | ||
| 41-0654 | CONNECTOR - in-line (4 pin, male) | 2 | ||
| 41-8221 | CONNECTOR - in-line (4 pin, female) | 1 | ||
| 20 | 41-8782 | HARNESS - power supply driver panel ClimaAIRE (optional) | 1 | |
| 41-0654 | CONNECTOR - in-line (4 pin, male) | 1 | ||
| 21 | NSS | CANAIRE - driver panel (optional, see 265H6) | 1 | |
| 22 | 41-9624 | HARNESS - unit x CANAIRE (5m, optional) | 1 | |
| 42-1069 | HARNESS - unit x CANAIRE (9m, optional) | 1 | ||
| 41-8636 | HARNESS - unit x CANAIRE (14m, optional) | 1 | ||
| 42-1068 | HARNESS - unit x CANAIRE (18m, optional) | 1 | ||
| 41-0654 | CONNECTOR - in-line (4 pin, male) | 2 | ||
| 41-8221 | CONNECTOR - in-line (4 pin, female) | 1 | ||
| 23 | 42-1071 | HARNESS - power supply driver panel CANAIRE (optional) | 1 | |
| 41-3423 | CONNECTOR - in-line (10 pin, male) | 1 | ||
| 44-6381 | CONNECTOR - female (1 pin) | 2 |
