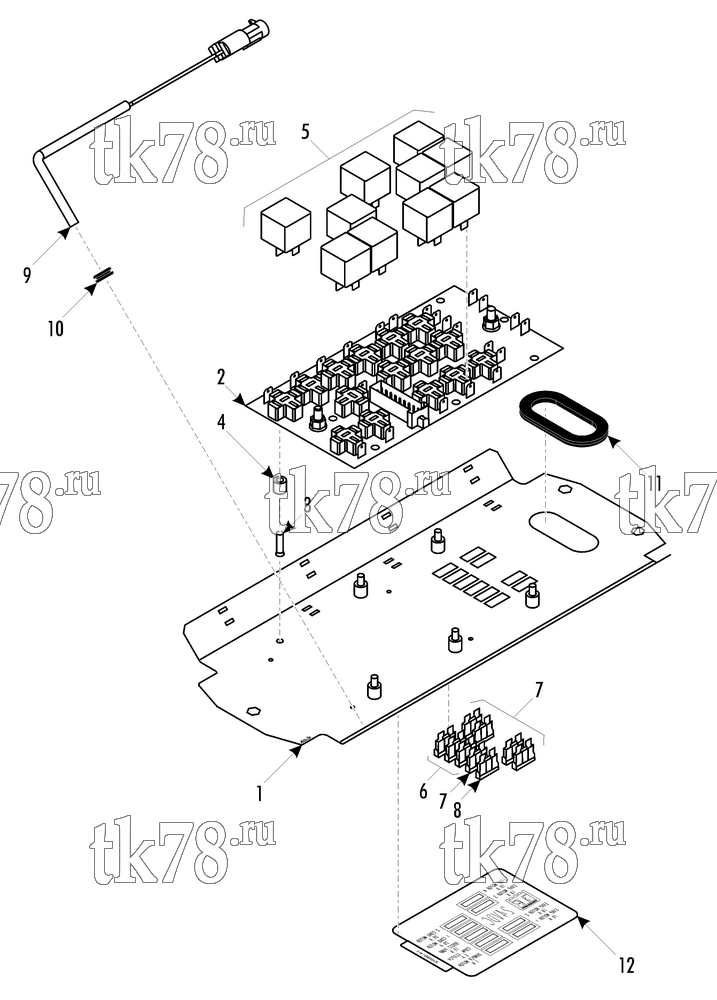

Установкa Thermo King X700 схема CONTROL PANEL – 245H0
Обновление от: 3/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8886 | PLATE - control panel | 1 | |
| 55-6994 | SCREW - control panel | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-7373 | NUT - captive | 3 | ||
| 2 | 41-4154 | BOARD - pc | 1 | |
| 3 | 55-9623 | STUD - self clinching | 6 | |
| 4 | 55-9624 | SPACER | 6 | |
| 55-7034 | NUT - HEXSTOP | 6 | ||
| 5 | 41-896 | RELAY | 10 | |
| 6 | 41-2978 | FUSE (20 amp) | 3 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 7 | 44-9344 | FUSE (15 amp) | 5 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 9 | 41-4157 | SENSOR - temperature | 1 | |
| 10 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 11 | 33-1275 | GROMMET (1.50 id) | 1 | |
| 12 | 92-2767 | NAMEPLATE - 24 V | 1 |
