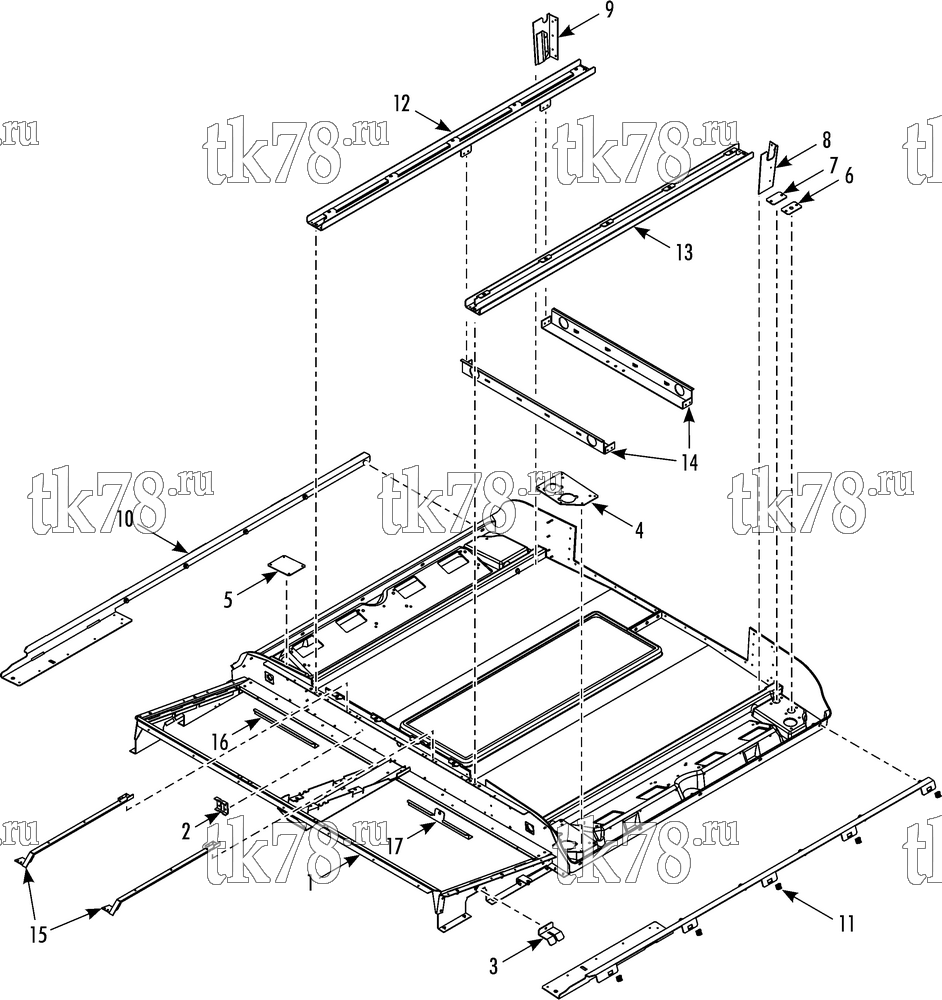

Установкa Thermo King X700 AP схема FRAME – 262A8
Обновление от: 8/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9067 | FRAME | 1 | |
| 51-2030 | RIVET (open end) | 1 | ||
| 55-5130 | RIVET (0.425, SS) | 30 | ||
| 55-3628 | RIVET (0.550, AL) | 10 | ||
| 55-5047 | RIVET (0.550, SS) | 30 | ||
| 2 | 92-9412 | BRACKET | 1 | |
| 3 | 92-8859 | HOLDER - filter | 1 | |
| 4 | 93-194 | BRACKET - refrigeration connections | 1 | |
| 5 | 93-218 | BRACKET | 1 | |
| 6 | 93-196 | BRACKET - electrical | 1 | |
| 7 | 93-197 | BRACKET - electrical | 1 | |
| 55-6994 | SCREW - bracket | 7 | ||
| 51-167 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 92-8839 | BRACKET - evaporator | 1 | |
| 9 | 92-8840 | BRACKET - evaporator | 1 | |
| 10 | 92-8879 | BRACKET - side | 1 | |
| 11 | 92-8880 | BRACKET - side | 1 | |
| 12 | 92-8877 | CHANNEL | 1 | |
| 13 | 92-8878 | CHANNEL | 1 | |
| 14 | 93-219 | PANEL - control | 2 | |
| 15 | 92-8881 | BRACKET - panel, fans | 2 | |
| 16 | 92-8841 | BRACKET - condenser coil | 1 | |
| 17 | 92-8842 | BRACKET - condenser coil | 1 |
