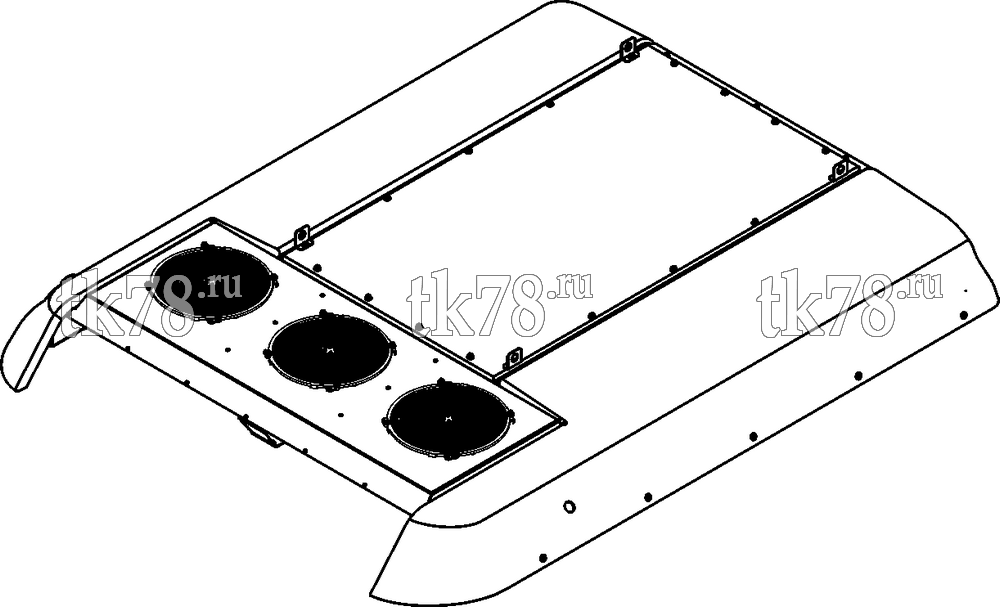

Установкa Thermo King X700 AP схема X700 AP REFERENCE SHEET – 18U31
Обновление от: 8/6/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 902198 | System - X700 | 7/12 | ||
| 013511 | Unit X700 | 7/12 | ||
| 099058 | Fuse Kit | 7/12 | ||
| 700107 | Refrigerant Hose | 7/12 | ||
| 700348 | Fitting Kit Straight | 7/12 | ||
| 700349 | Fitting Kit 45 degree | 7/12 | ||
| 700350 | Fitting Kit 90 degree | 7/12 | ||
| 700475 | Refrigerant Hose | 7/12 | ||
| 700476 | Refrigerant Hose | 7/12 | ||
| 700477 | Refrigerant Hose | 7/12 | ||
| 700500 | Fitting Kit | 7/12 | ||
| 700606 | Battery Cables Red/Black 5 meter | 7/12 | ||
| 700627 | Compressor X430 | 7/12 | ||
| 700887 | Refrigerant Hose | 7/12 | ||
| 700888 | Refrigerant Hose | 7/12 | ||
| 700890 | Capacitance Wire | 7/12 | ||
| 700891 | Alternator Accessories | 7/12 | ||
| 700909 | Insulation Strip | 7/12 | ||
| 701192 | Compressor X430 | 7/12 | ||
| 701482 | Harness Control Panel to Compressor X430 14M | 7/12 | ||
| 701233 | Harness Control Panel to Compressor X430 12M | 7/12 | ||
| 701557 | Installation Kit | 7/12 | ||
| 701578 | Refrigerant Hose | 7/12 | ||
| 701983 | Compressor Oil POE 8oz | 7/12 | ||
| 702012 | Nameplate Chinese Service | 7/12 | ||
| 702019 | Nameplate | 7/12 | ||
| 702322 | Nameplate English Service | 7/12 | ||
| 702555 | Operating Manual SmartAIRE I D Controller | 7/12 | ||
| 702556 | Operating Manual SmartAIRE I D Controller | 7/12 | ||
| 702899 | SmartAIRE & Harness 12 meter | 7/12 | ||
| 702900 | SmartAIRE & Harness 14 meter | 7/12 | ||
| 702901 | SmartAIRE & Harness 16 meter | 7/12 | ||
| 702902 | SmartAIRE & Harness 18 meter | 7/12 | ||
| 702948 | ClimaAIRE I D Control Panel | 7/12 | ||
| 702949 | ClimaAIRE I D Control Panel | 7/12 | ||
| 703030 | Kit for Tube Installation | 7/12 | ||
| 703031 | Kit for Tube Installation | 7/12 | ||
| 703039 | Installation Kit | 7/12 | ||
| 703106 | Control System w/o PCB X700 | 7/12 | ||
| 703111 | Fresh Air Damper X700 | 7/12 | ||
| 703116 | Return Air | 7/12 | ||
| 703118 | Without Fresh Air X700 | 7/12 | ||
| 703119 | Harness Control Panel to Compressor TM31 12 meter | 7/12 | ||
| 703120 | Harness Control Panel to Compressor TM31 14 meter | 7/12 | ||
| 715247 | Compressor Muffler Kit | 7/12 | ||
| 718123 | Oil PAG 8oz | 7/12 | ||
| 718377 | Compressor Kit TM31 | 7/12 | ||
| 718379 | Oil POE 8oz | 7/12 | ||
| 719305 | Alternator Kit 24V | 7/12 | ||
| 719718 | Compressor TM31 | 7/12 | ||
| 719802 | Fitting Kit | 7/12 | ||
| 720171 | Compressor Muffler Kit w/o Hose | 7/12 | ||
| 720209 | Compressor Fitting Kit | 7/12 | ||
| 720242 | Refrigerant Hose | 7/12 | ||
| 720366 | Fitting Kit | 7/12 | ||
| 720369 | Compressor Fitting Kit TM31 | 7/12 | ||
| 720370 | Compressor Fitting Kit TM31 | 7/12 | ||
| 720371 | Fitting Kit | 7/12 | ||
| 720376 | Fitting Kit | 7/12 | ||
| 720377 | Fitting Kit | 7/12 | ||
| 720587 | Compressor X430 | 7/12 | ||
| 720395 | Installation Kit | 7/12 | ||
| 800332 | Installation Kit | 7/12 | ||
| 800436 | Installation Kit | 7/12 | ||
| 880110 | Compressor Valve Adapters | 7/12 |
