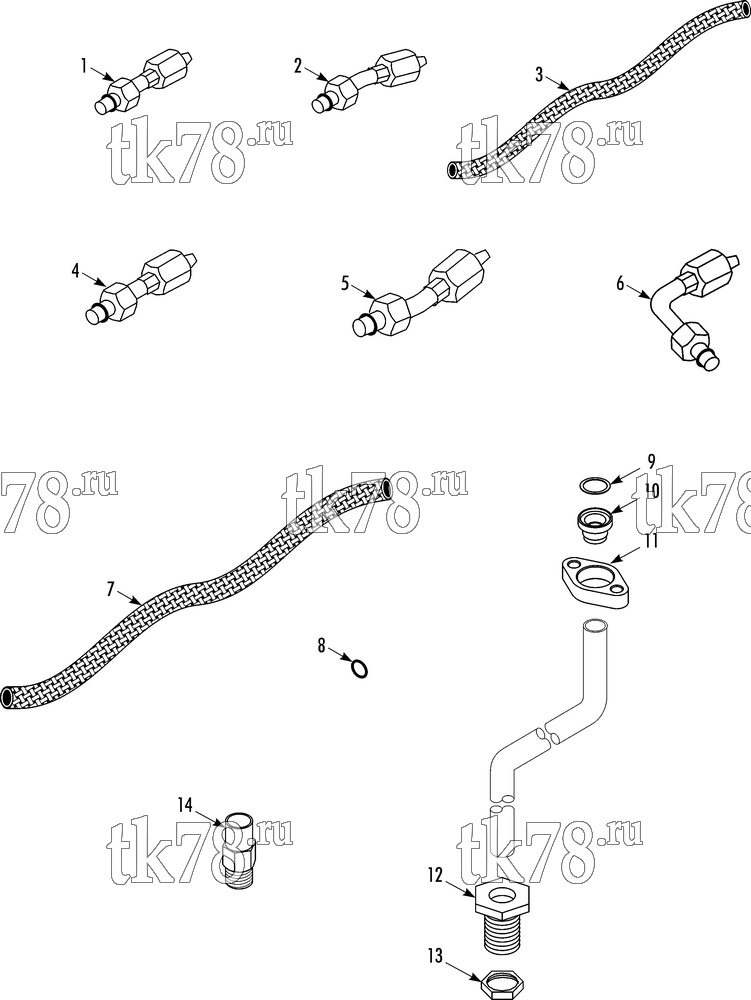

Установкa Thermo King X500 AP схема HOSE KIT – 260H6
Обновление от: 8/3/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9801 | FITTING - straight (#10 ftg, #10 hose) | A/R | |
| 2 | 55-9803 | FITTING - 45 degree (#10 ftg, #10 hose) | A/R | |
| 3 | 61-6204 | HOSE - discharge (#10, 1000mm) | A/R | |
| 61-6205 | HOSE - discharge (#10, 2000mm) | A/R | ||
| 4 | 55-9790 | FITTING - straight (#12 ftg, #16 hose) | A/R | |
| 5 | 55-9802 | FITTING - 45 degree (#12 ftg, #16 hose) | A/R | |
| 6 | 55-9793 | FITTING - 90 degree (#12 ftg, #16 hose) | A/R | |
| 7 | 61-4450 | HOSE - suction ( #16, 1000mm) | A/R | |
| 61-6206 | HOSE - suction ( #16, 2000mm) | A/R | ||
| 8 | 33-2848 | O-RING (#10) | A/R | |
| 33-2847 | O-RING (#16) | A/R | ||
| 9 | 33-3191 | GASKET - flat | 2 | |
| 10 | 55-5938 | ADAPTER | 2 | |
| 55-9185 | ADAPTER | 2 | ||
| 11 | 55-9371 | FLANGE | 2 | |
| 12 | 51-1557 | ADAPTER - bulkhead | 2 | |
| 13 | 55-5936 | NUT | 2 | |
| 14 | 55-9890 | ADAPTER (#10) | 1 | |
| 61-3108 | ADAPTER (#16) | 1 |
