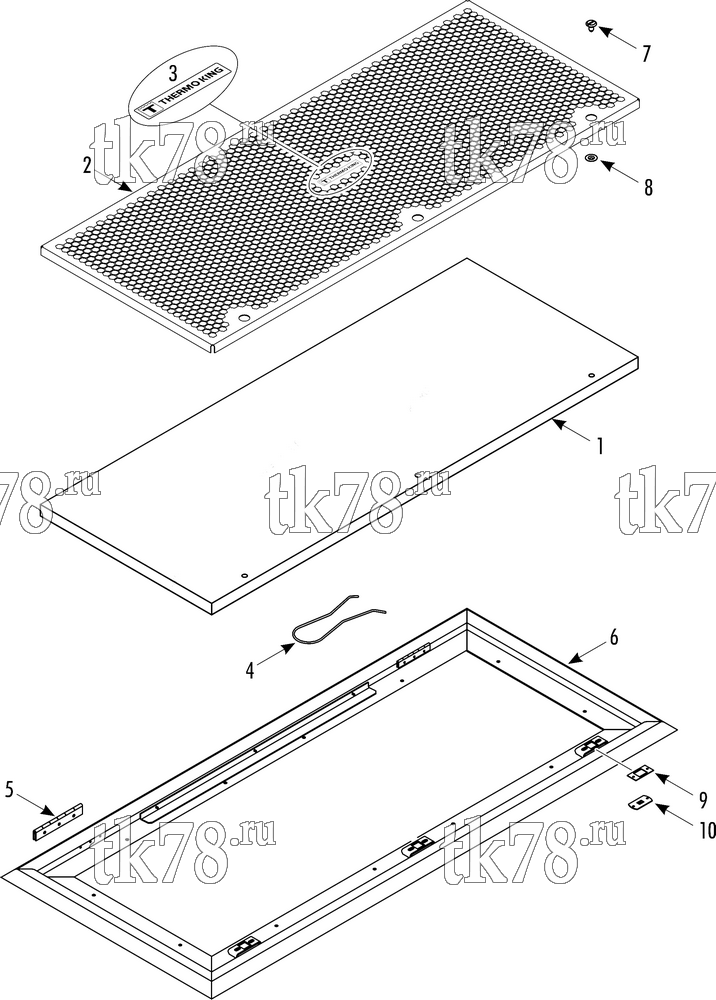

Установкa Thermo King X500 AP схема RETURN AIR (703116) – 260H1
Обновление от: 7/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-191 | FILTER - air | 1 | |
| 2 | 98-9058 | SCREEN - assembly | 1 | |
| 3 | 91-9638 | NAMEPLATE - TK | 1 | |
| 4 | 91-9343 | CLIP - filter | 1 | |
| 5 | 91-8903 | HINGE - frame | 2 | |
| 55-2012 | RIVET - hinge | 6 | ||
| 6 | 98-9057 | FRAME - assembly | 1 | |
| 7 | 55-2782 | SCREW - lock | 3 | |
| 8 | 55-7112 | WASHER | 3 | |
| 9 | 91-7625 | LOCKPLATE | 3 | |
| 55-3035 | RIVET - plate | 6 | ||
| 10 | 55-2074 | NUT - lockplate | 3 |
