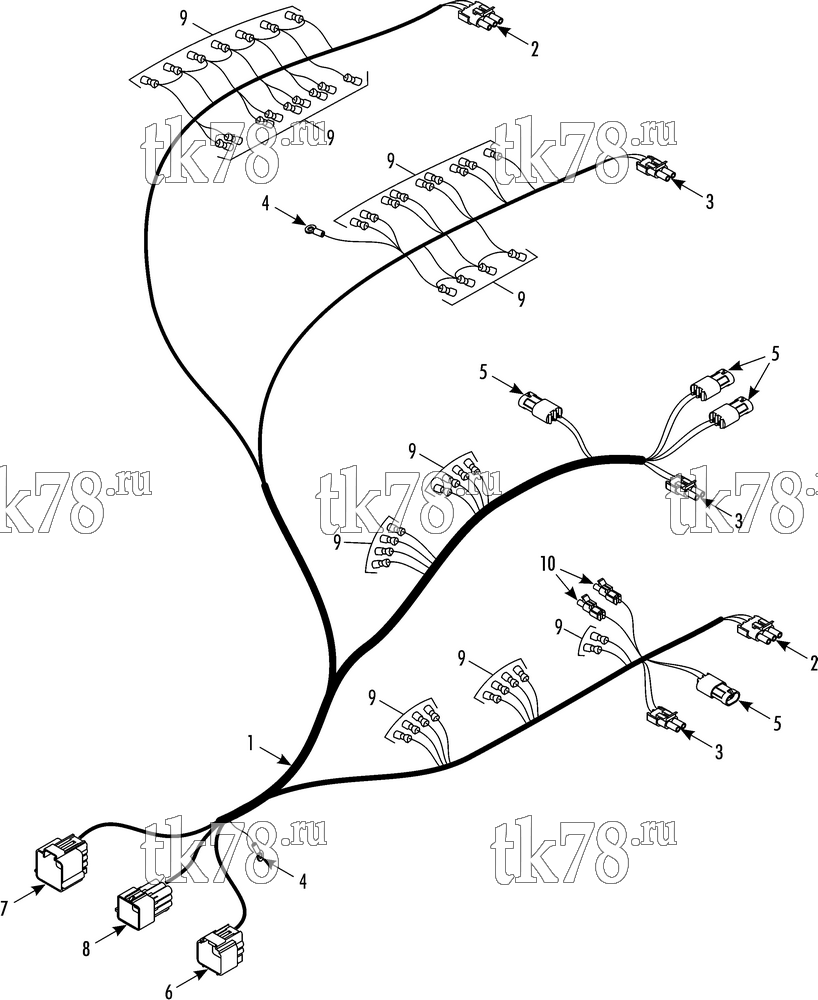

Установкa Thermo King X500 AP схема HARNESS MAIN – 260G8
Обновление от: 8/3/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-658 | HARNESS - main (X500 & X700) | 1 | |
| 2 | 44-6959 | CONNECTOR - tower (3-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 6 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 6 | ||
| 4 | 41-3922 | TERMINAL - ring (3/8 blue, 6 ga) | 1 | |
| 44-5089 | TERMINAL - ring (3/8 yellow 12-10 ga) | 6 | ||
| 42-662 | TERMINAL - ring (5/16 blue, 6 ga) | 4 | ||
| 44-9995 | TERMINAL - ring (5/16 yellow 12-10 ga) | 4 | ||
| 5 | 44-5835 | CONNECTOR - shroud (2-pin) | 4 | |
| 44-5836 | TERMINAL - male (16-14 ga) | A/R | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | A/R | ||
| 44-5883 | TERMINAL - male (20-18 ga) | A/R | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | A/R | ||
| 6 | 41-8509 | CONNECTOR - male (9-pin, black) | 1 | |
| 42-664 | WEDGE (yellow) | 1 | ||
| 41-8513 | TERMINAL - male (18 awg) | 6 | ||
| 41-8514 | SEAL - cable (black) | 6 | ||
| 7 | 41-8510 | CONNECTOR - female (9-pin, black) | 1 | |
| 42-663 | WEDGE (yellow) | 1 | ||
| 41-8512 | TERMINAL - female (18 awg) | 9 | ||
| 41-8514 | SEAL - cable (black) | 9 | ||
| 8 | 41-8511 | CONNECTOR - female (6-pin, black) | 1 | |
| 42-665 | WEDGE (yellow) | 1 | ||
| 41-8512 | TERMINAL - female (18 awg) | 6 | ||
| 41-8514 | SEAL - cable (black) | 6 | ||
| 9 | 41-5244 | TERMINAL - fingrip (10-12 ga) | 8 | |
| 44-9695 | TERMINAL - fingrip (14-18 ga) | 2 | ||
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 19 | ||
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 33 | ||
| 42-666 | TERMINAL - holder fuse | 18 | ||
| 10 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 |
