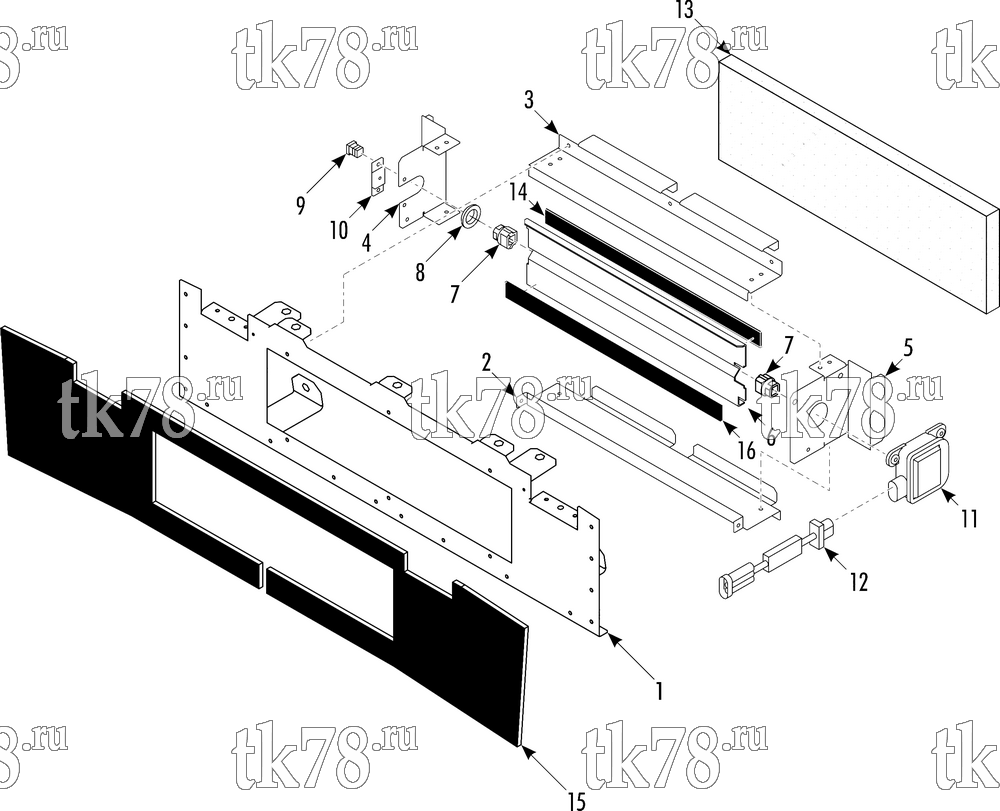

Установкa Thermo King X500 AP схема FRESH AIR DAMPER (703110) – 260G0
Обновление от: 7/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8667 | WALL - weldment | 1 | |
| 55-5047 | RIVET - wall | 16 | ||
| 55-7373 | NUT - captive | 7 | ||
| 2 | 92-8862 | PLATE | 1 | |
| 3 | 92-8863 | PLATE | 1 | |
| 4 | 92-8864 | PLATE | 1 | |
| 5 | 92-8865 | PLATE | 1 | |
| 55-5130 | RIVET - plates | 14 | ||
| 51-1610 | FLATWASHER | 6 | ||
| 6 | 93-190 | FLAP | 1 | |
| 7 | 77-2746 | BEARING - plastic | 2 | |
| 8 | 92-5226 | BEARING - sleeve, plastic | 1 | |
| 9 | 51-261 | PLUG - plastic | 1 | |
| 10 | 92-5715 | PLUG - assembly | 1 | |
| 55-5130 | RIVET - plug | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 11 | 41-3255 | SERVOMOTOR | 1 | |
| 55-7664 | SCREW - servomotor | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 12 | 41-7190 | CONTROLLER - servomotor | 1 | |
| 13 | 92-8796 | FILTER | 1 | |
| 14 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 15 | 92-8868 | INSULATION | 1 |
