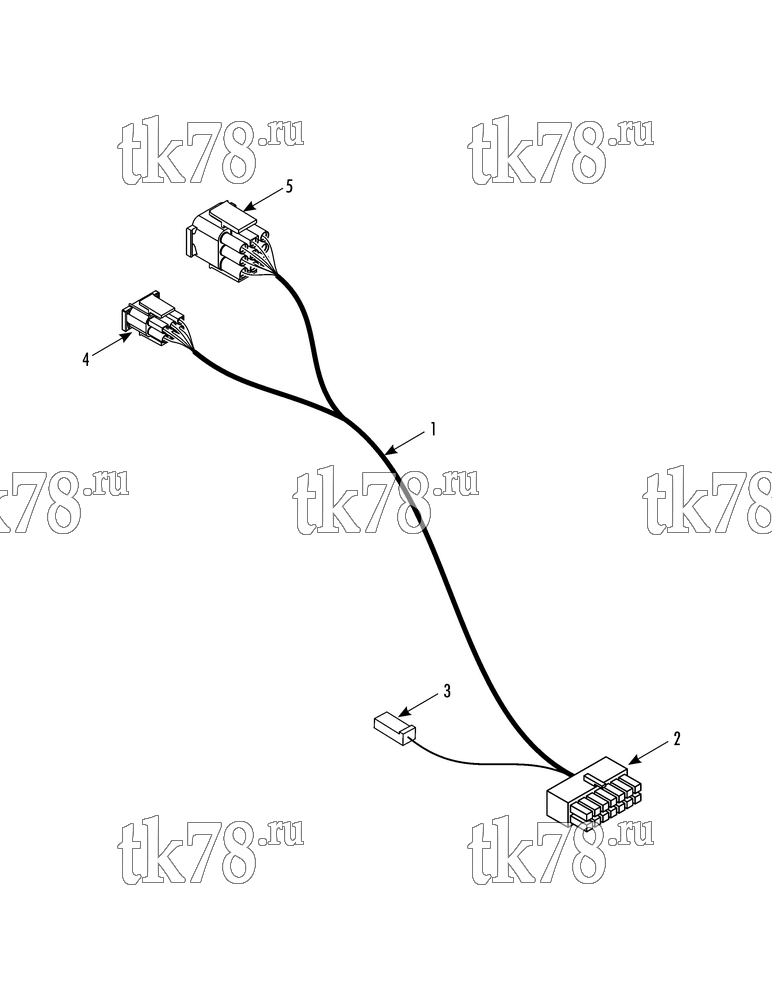

Установкa Thermo King X1000 AP схема HARNESS CONTROL PANEL TO DRIVER PANEL – 268A8
Обновление от: 2/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-942 | HARNESS - control panel to driver panel 12M | 1 | |
| 42-941 | HARNESS - control panel to driver panel 14M | 1 | ||
| 42-940 | HARNESS - control panel to driver panel 16M | 1 | ||
| 42-939 | HARNESS - control panel to driver panel 18M | 1 | ||
| 2 | 41-661 | CONNECTOR - 14-pin | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 14 | ||
| 3 | 44-6381 | CONNECTOR - female (1-pin) | 1 | |
| 44-5066 | TERMINAL - fingrip | 1 | ||
| 4 | 42-954 | CONNECTOR - tower (6 pin) | 1 | |
| 42-956 | SEAL - interface (6 pin) | 1 | ||
| 42-957 | SEAL - wire (6 pin) | 1 | ||
| 42-955 | PIN (20-14 ga) | A/R | ||
| 5 | 42-953 | CONNECTOR - tower (9 pin) | 1 | |
| 42-952 | SEAL - wire (9 pin) | 1 | ||
| 42-958 | SEAL - interface (9 pin) | 1 | ||
| 92-955 | PIN (20-14 ga) | A/R |
