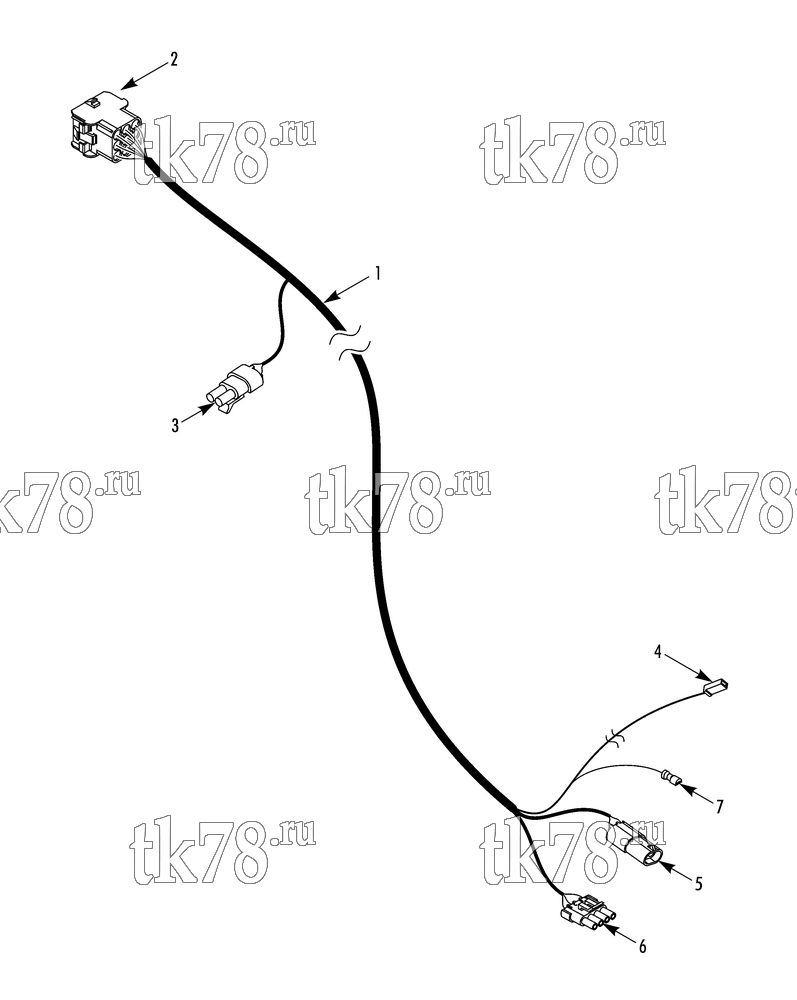

Установкa Thermo King X1000 AP схема HARNESS CONTROL PANEL TO COMPRESSOR w/ SmartAIRE & ClimaAIRE – 268A7
Обновление от: 2/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-943 | HARNESS - control panel to compressor (18M) | 1 | |
| 42-944 | HARNESS - control panel to compressor (16M) | 1 | ||
| 42-945 | HARNESS - control panel to compressor (14M) | 1 | ||
| 42-946 | HARNESS - control panel to compressor (12M) | 1 | ||
| 2 | 42-950 | CONNECTOR - shroud (9 pin) | 1 | |
| 42-951 | SOCKET (20-14 ga) | A/R | ||
| 42-952 | SEAL - wire (9 pin) | 1 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 4 | 44-6381 | CONNECTOR (1-pin, female) | 1 | |
| 41-5243 | TERMINAL - fingrip (14-16 ga) | 1 | ||
| 5 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 1 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 6 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 3 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 7 | 41-5243 | TERMINAL - fingrip (14-16 ga) | 1 |
