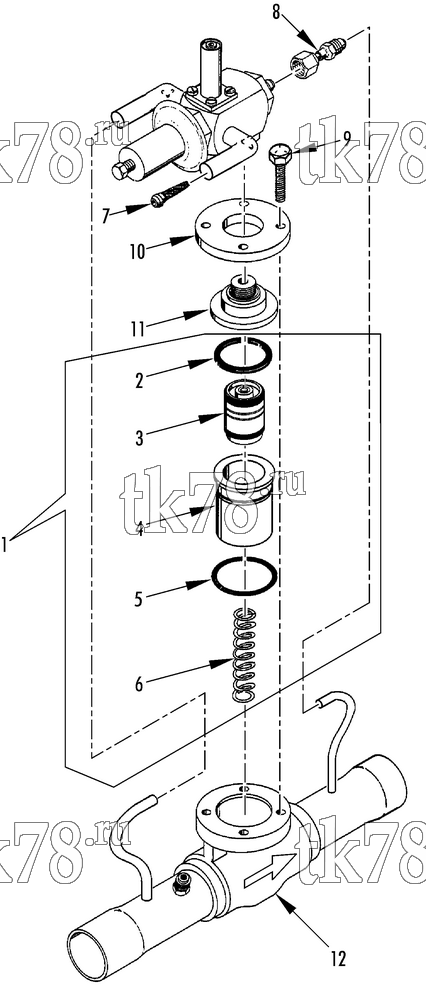

Установкa Thermo King X1000 AP схема VALVE ASSEMBLY - EPR – 240G0
Обновление от: 8/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-1680 | VALVE - epr (R407c) | 1 | ||
| 61-1688 | VALVE - epr (R407c) | 1 | ||
| 1 | 60-180 | KIT - internal parts (includes items 2,3,4,5 & 6) | 1 | |
| 2 | NSS | GASKET | 1 | |
| 3 | NSS | PISTON - assembly | 1 | |
| 4 | NSS | SLEEVE | 1 | |
| 5 | NSS | O-RING | 1 | |
| 6 | NSS | SPRING | 1 | |
| 7 | NSS | SCREW | 1 | |
| 8 | NSS | ADAPTER - outlet | 1 | |
| 9 | NSS | SCREW - cap | 4 | |
| 10 | 61-5331 | FLANGE | 1 | |
| 11 | 61-5330 | ADAPTER | 1 | |
| 12 | NSS | BODY - valve | 1 |
