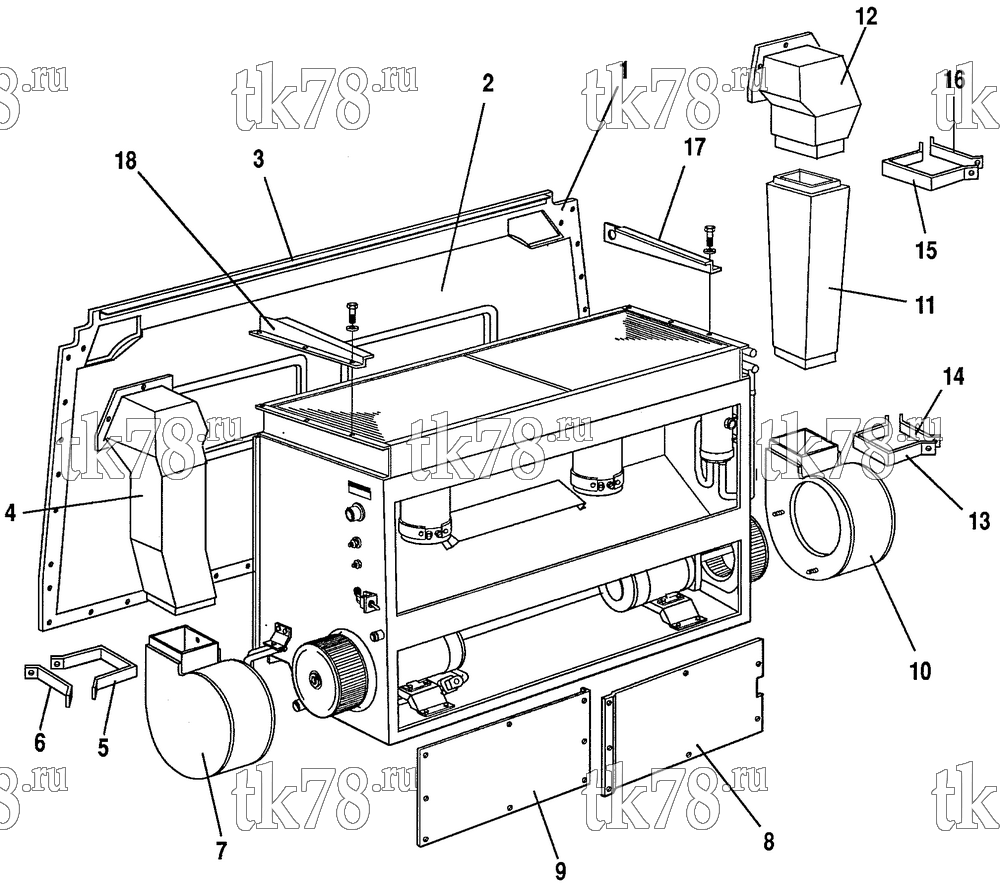

Установкa Thermo King VRT-6 схема DISCHARGE DUCT & FIREWALL GROUP – 99C1
Обновление от: 7/17/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 309-1673 | FIREWALL - assembly (96 bus) | 1 | |
| 2 | 309-1674 | PAD | 1 | |
| 3 | 309-249 | BRACKET - firewall (96) | 1 | |
| 4 | 309-1702 | DUCT - discharge (streetside) | 1 | |
| 5 | 309-1703 | STRAP - bolting (streetside) | 1 | |
| 6 | 309-1704 | STRAP - bolting (streetside) | 1 | |
| 7 | 309-885 | HOUSING - fan assembly (streetside) | 1 | |
| 309-1705 | INSULATION - outside (1/4 thk) | 1 | ||
| 309-1706 | INSULATION - inside (1/2 thk) | 1 | ||
| 309-1707 | INSULATION - scroll (1/2 thk) | 1 | ||
| 303-345 | GASKET - housing to unit | 1 | ||
| 305-1083 | SPACER - fan housing | 3 | ||
| 8 | 309-1678 | DOOR - evaporator access (curbside) | 1 | |
| 9 | 309-1679 | DOOR - evaporator access (streetside) | 1 | |
| 10 | 309-884 | HOUSING - fan assembly (curbside) | 1 | |
| 309-1708 | INSULATION - outside (1/4 thk) | 1 | ||
| 309-1668 | INSULATION - inside (1/4 thk) | 1 | ||
| 309-1661 | INSULATION - scroll (1/2 thk) | 1 | ||
| 303-345 | GASKET - housing to unit | 1 | ||
| 305-1083 | SPACER - fan housing | 3 | ||
| 11 | 309-1709 | DUCT - discharge (lower, curbside) | 1 | |
| 12 | 309-1681 | DUCT - discharge (upper, curbside) | 1 | |
| 13 | 309-1703 | STRAP - bolting (streetside) | 1 | |
| 14 | 309-1704 | STRAP - bolting (lower, curbside) | 1 | |
| 15 | 309-1683 | STRAP - bolting (upper, curbside) | 1 | |
| 16 | 309-1684 | STRAP - bolting (upper, curbside) | 1 | |
| 17 | 309-1685 | BLOCKOFF - condenser coil (curbside) | 1 | |
| 18 | 309-1686 | BLOCKOFF - condenser coil (roadside) | 1 |
