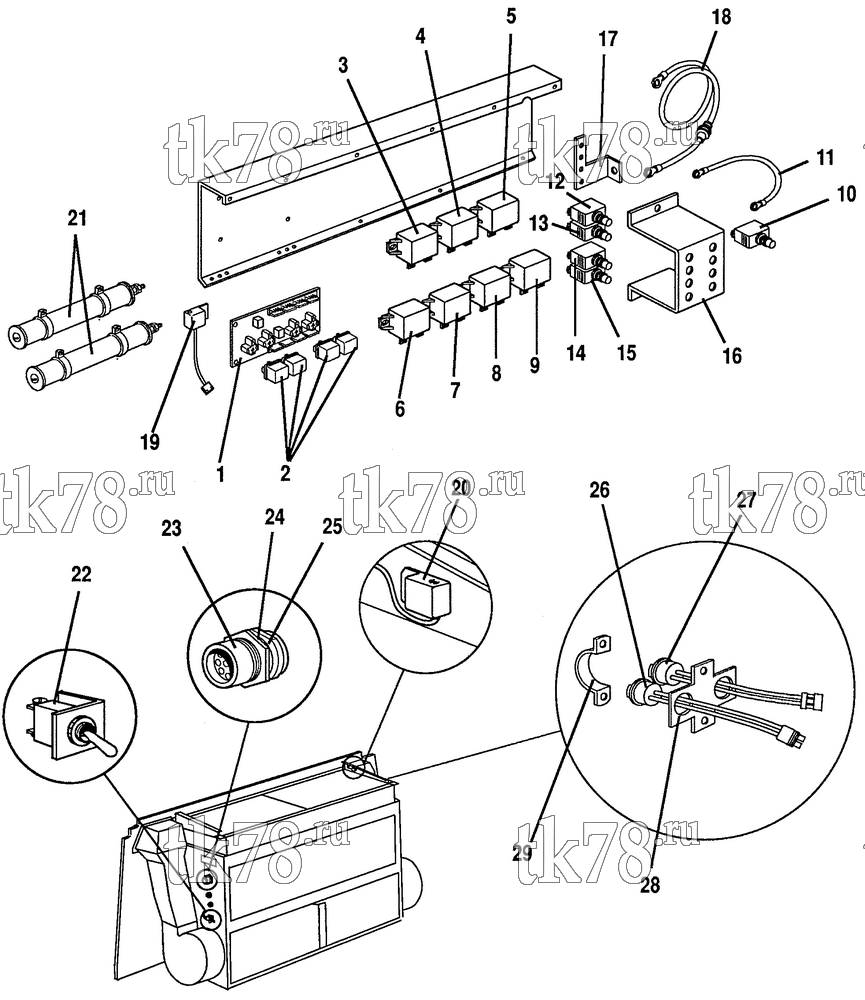

Установкa Thermo King VRT-6 System w/Screw Compressor схема SYSTEM CONTROL PANEL – 97G7
Обновление от: 7/18/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 304-149 | BOARD - printed circuit (temperature controller) | 1 | |
| 2 | 305-589 | RELAY (24VDC) | 4 | |
| 3 | 304-299 | CONTACTOR (CMCH1) | 1 | |
| 4 | 304-299 | CONTACTOR (CLS) | 1 | |
| 5 | 304-299 | CONTACTOR (CMC2) | 1 | |
| 6 | 304-299 | CONTACTOR (EMC1) | 1 | |
| 7 | 304-299 | CONTACTOR (ELS) | 1 | |
| 8 | 304-299 | CONTACTOR (EMC2) | 1 | |
| 9 | 304-299 | CONTACTOR (CR) | 1 | |
| 10 | 304-196 | BREAKER - circuit (10A, CB1, to control relay) | 1 | |
| 11 | 304-1837 | WIRE - jumper (CB1 to control relay CR) | 1 | |
| 12 | 304-195 | BREAKER - circuit (40A, CB2, to streetside cond motor) | 1 | |
| 13 | 304-195 | BREAKER - circuit (40A, CB3, to streetside cond motor) | 1 | |
| 14 | 304-194 | BREAKER - circuit (35A, CB5, to curbside evap motor) | 1 | |
| 15 | 304-194 | BREAKER - circuit (35A, CB5, to curbside evap motor) | 1 | |
| 16 | 309-1688 | BRACKET - circuit breaker | 1 | |
| 17 | 304-994 | BUSBAR - main power | 1 | |
| 18 | 304-1009 | CABLE - power in | 1 | |
| 19 | 304-861 | THERMOSTAT - return air (located on control panel) | 1 | |
| 20 | 304-860 | THERMOSTAT - ambient air (located on curbside cond coil blockoff panel) | 1 | |
| 304-859 | THERMOSTAT - duct limiter (located on curbside evap fan inlet ring) | 1 | ||
| 21 | 304-648 | RESISTOR - low speed fan | 2 | |
| 22 | 304-1055 | SWITCH - safety & diode | 1 | |
| 304-438 | INSULATION - boot for safety | 1 | ||
| 23 | 55-129 | CONNECTOR - wiring harness | 1 | |
| 24 | 55-5398 | NUT - panel (for wire harness connector) | 1 | |
| 25 | 55-5397 | LOCKWASHER (for wire harness receptacle) | 1 | |
| 26 | 304-1064 | THERMOSTAT - liquid injection (LIT) | 1 | |
| 27 | 304-1065 | THERMOSTAT - shutdown (SDT) | 1 | |
| 28 | 309-1689 | PLATE - mounting thermostats | 1 | |
| 29 | 305-229 | CLAMP - mounting thermostats | 1 |
