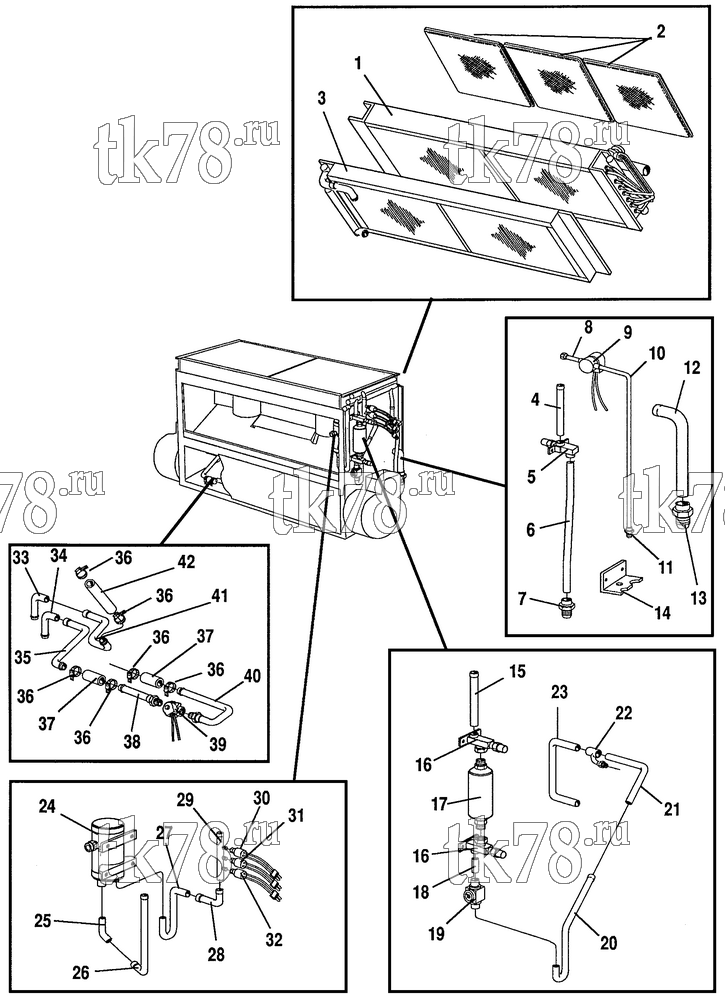

Установкa Thermo King VRT-6 System w/Screw Compressor схема REFRIGERANT TUBING GROUP – 97G6
Обновление от: 7/8/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 306-183 | COIL - evaporator | 1 | |
| 2 | 301-163 | FILTER - air (disposable, pad & frame) | 3 | |
| 91-6668 | PAD - only | A/R | ||
| 3 | 306-743 | COIL - heater assembly | 1 | |
| 4 | 306-1226 | TUBE - condenser coil to shutoff valve | 1 | |
| 5 | 306-588 | VALVE - base | 1 | |
| 6 | 306-1227 | TUBE - shutoff valve to discharge adapter (bent) | 1 | |
| 7 | 305-142 | ADAPTER - discharge | 1 | |
| 8 | 306-1249 | TUBE - flared | 1 | |
| 55-373 | NUT - flare (3/8) | 1 | ||
| 9 | 306-548 | VALVE - solenoid (body only, no coil) | 1 | |
| 304-266 | COIL - solenoid valve (24VDC) | 1 | ||
| 10 | 306-1250 | TUBE - bent, liquid injection | 1 | |
| 11 | 55-3212 | ADAPTER - liquid injection hose | 1 | |
| 12 | 306-1228 | TUBE - evaporator coil to suction adapter | 1 | |
| 13 | 305-140 | ADAPTER - suction hose | 1 | |
| 14 | 309-834 | BRACKET - suction & discharge | 1 | |
| 15 | 306-1229 | TUBE - condenser coil to shutoff valve | 1 | |
| 16 | 306-662 | VALVE - drier shutoff | 2 | |
| 17 | 306-221 | DEHYDRATOR | 1 | |
| 303-193 | GASKET (teflon) | 2 | ||
| 18 | 306-1230 | TUBE - shutoff valve to sight glass | 1 | |
| 19 | 306-309 | SIGHT GLASS - moisture indicator | 1 | |
| 20 | 306-1231 | TUBE - sight glass to bent tube | 1 | |
| 21 | 306-1251 | TUBE - bent | 1 | |
| 22 | 306-1233 | TUBE - liquid line | 1 | |
| 23 | 306-1232 | TUBE - bent | 1 | |
| 24 | 306-347 | RECEIVER - liquid | 1 | |
| 66-6612 | SIGHT GLASS | 1 | ||
| 303-344 | GASKET - sight glass | 1 | ||
| 305-420 | PLUG - fusible (283 F) | 1 | ||
| 25 | 306-1235 | TUBE - bent | 1 | |
| 26 | 306-1236 | TUBE - condenser coil to receiver outlet | 1 | |
| 27 | 306-1239 | TUBE - bent | 1 | |
| 28 | 306-1238 | TUBE - bent | 1 | |
| 29 | 306-1234 | TUBE - condenser coil outlet to receiver | 1 | |
| 30 | 304-789 | SWITCH - high pressure | 1 | |
| 31 | 304-802 | SWITCH - condenser speed | 1 | |
| 32 | 304-788 | SWITCH - low pressure | 1 | |
| 33 | 306-1252 | TUBE - heater outlet | 1 | |
| 34 | 306-1253 | TUBE - heater inlet | 1 | |
| 35 | 306-1254 | TUBE - heater coil inlet | 1 | |
| 36 | 305-235 | CLAMP - hose | 6 | |
| 37 | 301-617 | HOSE - heater inlet | 2 | |
| 38 | 301-616 | TUBE & ADAPTER | 1 | |
| 39 | 306-634 | VALVE - solenoid | 1 | |
| 44-8966 | COIL (24V ASCO valve) | 1 | ||
| 44-8967 | COIL (ASCO valve) | 1 | ||
| 60-199 | KIT - repair (Alco) | 1 | ||
| 304-244 | COIL (24V control & power include) | 1 | ||
| 306-321 | KIT - repair (control & power include) | 1 | ||
| 40 | 306-1255 | TUBE & ADAPTER - assembly | 1 | |
| 41 | 306-1256 | TUBE - heater coil outlet | 1 | |
| 42 | 301-625 | TUBE - heater outlet | 1 | |
| 43 | 306-630 | VALVE - expansion | 1 |
